SERVICING
(2.6 Wall Type)
2.6.4 Removing Thermistors for Liquid Pipe, Gas Pipe, Discharge Air and Suction Air
(1) Remove the front panel according to the item 2.6.2 “Removing Front Panel”.
(2) Remove the electrical box according to the item 2.6.5 “Removing Electrical Box Cover”.

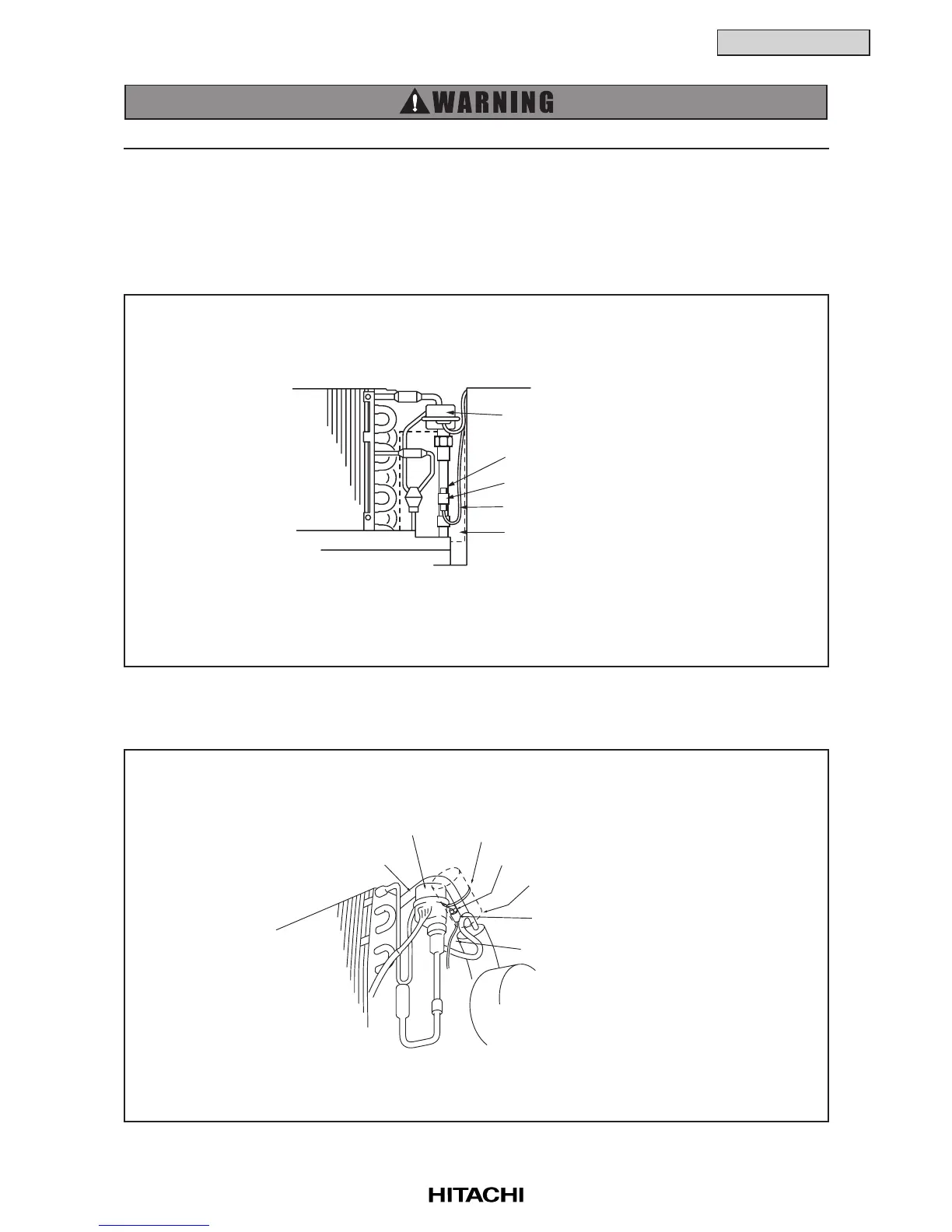

(3) Removing Thermistor for Liquid Pipe
Remove the butyl sheet protecting the thermistor for liquid pipe and remove the thermistor from the
holder.
TURN OFF all power source switches.
(4) Removing Thermistor for Gas Pipe
Remove the piping insulation protecting the thermistor for gas pipe, by cutting the plastic tie and
surrounding tapes and remove the thermistor from the holder.
Heat Exchanger
Expansion Valve
Thermistor for Liquid Pipe
Thermistor Holder
Lead Wire of Thermistor
Butyl Sheet
Gas Pipe
Expansion Valve
Plastic Tie
Thermistor for Gas Pipe
Piping Insulation
Thermistor Holder
Lead wire of Thermistor
