Hitachi RAS-8HNCE User Manual

Units installation
13
PMML0317A rev.1 - 11/2013
ENGLISH


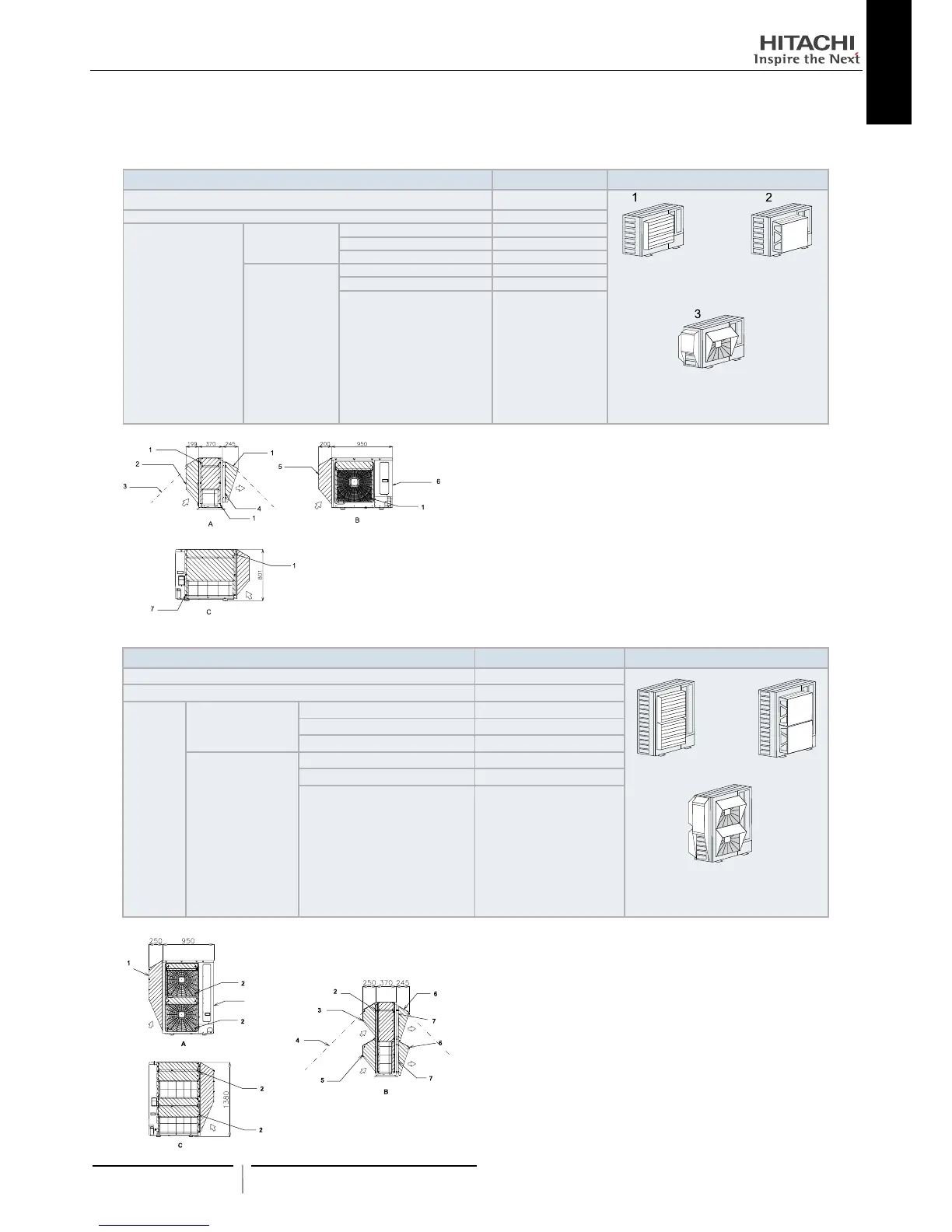

Air ow guide wind guard and snow protection hood
RAS-3HVNP1E/RAS-4H(V)RNS3E
Optional parts Model
Air ow guide AG-335A
1 Air ow guide
2 Wind Guard
3 Snow protection hood
Wind guard WSP-335A
Snow protection
hood
Zinc plate
Air outlet ASG-NP335F
Air inlet of rear side ASG-NP80B
Air inlet of side face ASG-NP80L
Stainless plate
(SUS304)
Air outlet ASG-NP335F52
Air inlet of rear side ASG-NP160BS2
Air inlet of side face ASG-NP160LS2
1. Fixing screw (Accessories).
2. Rear suction hood
3. Wire rope (Optional. For
overturning protection)
4. Air discharge grille
5. Left suction hood
6. Air discharge hood
A. Left side
B. Front side
C. Rear side
RAS-(4-6)H(V)NPE / RAS-(8-10)HN(P/C)E
Optional parts Model
Air ow guide AG-335A X 2
1 2
3
1 Air ow guide
2 Wind Guard
3 Snow protection hood
Wind guard WSP-335A X 2
Snow
protection
hood
Zinc plate
Air outlet ASG-NP335F X 2
Air inlet of rear side ASG-NP280B
Air inlet of side face ASG-NP280L
Stainless plate
(NSSC 180)
Air outlet ASG-NP335FS 2X 2
Air inlet of rear side ASG-280BS2
Air inlet of side face ASG-NP280LS2
1. Left suction hood
2. Fixing screw (Accessories)
3. Rear suction hood Upper
side
4. Wire rope (Optional. For
overturning protection)
5. Rear suction hood Lower
side
6. Air discharge hood
7. Air discharge grille
A. Front side
B. Left side
C. Rear side
