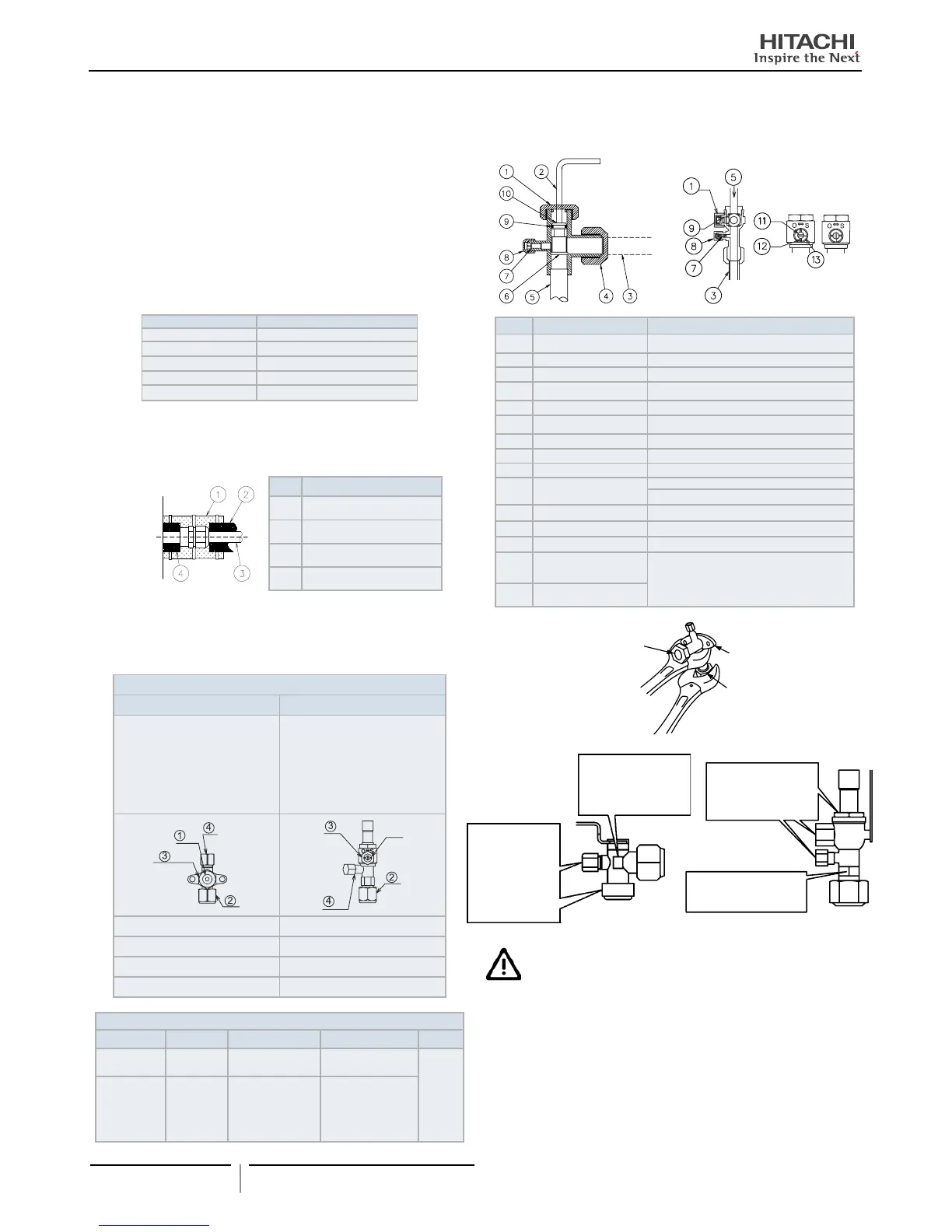

16
Refrigerant piping & refrigerant charge
PMML0317A rev.1 - 11/2013
2 Mount the piping cover in order to avoid water entering into
the unit. Seal the holes where pipes and wires are inserted, by
using a insulation (eld-supplied).
3 If the eld-supplied piping is connected with stop valves di-
rectly, it is recommended use a tube bender.
4 Check to ensure that the stop valves are closed completely
before connecting pipes.
5 Connect the eld supplied refrigerant pipes to the indoor unit
and outdoor unit. Apply the oil thinly at the seat are nut and
pipe before tightening.
The required tightening torque is as follows:
Pipe Size Tightening Torque (Nm)
Ø 6.35 mm (1/4) 20
Ø 9.52 mm (3/8) 40
Ø 12.70 mm (1/2) 60
Ø 15.88 mm (5/8) 80
Ø 19.05 mm (3/4) 100
6 After connecting the refrigerant piping, seal the open space
between knockout hole and refrigerant pipes by using insula-
tion material.
Unit
Side
Nº Description
Insulation Material
Insulation Material
Field Supplied
Insulation Material
7 Operation of stop valve should be performed according to the
gure below.
Close before shipment
Outdoor unit stop valve
Spindle Type Ball Type
Liquid
RAS-(4-10)H(V)NP(1)E
RAS-(8/10)HNCE
Liquid and Gas
RAS-3HVNP1E
RAS-4H(V)RNS3E
Gas
RAS-(4-10)H(V)NP(1)E
RAS-(8/10)HNCE
(a)
Spindle valve
Flare nut
Cap
Check joint for service port
Tightening Torque (Nm)
Liquid valve 7-9
40
10HP: 60
33-42
14-18
Gas valve 9-11
80
8/10HP: 100
3HP: 33-42
4/5/6HP:
P=20-25
S=33-42
8/10HP:20-25
Spindle Type Ball Type
(a) (b)
Nº Description Remarks
Cap
Allen wrench Hex 4 mm
Refrigerant Piping Field Supplied
Flare nut
Refrigerant Pressure To Outdoor Unit
Seat Surface Fully closed position
Check Joint Only the charging those can be connected
Charge port cap
O-Ring Rubber
Spindle valve
Open – Counterclockwise
Close – Clockwise
«
Shaft
¬
Pin
Stopper
(a)
Closed
This valve is opened or closed with rotating 90
degrees at the ball valve part. Rotate the shaft
until the pin touches the stopper. Do not apply the
extra force. Use a slotted screwdriver to control
the shaft. Do not leave the ball valve partly open
(b)
Opened
Do not apply two spanners
at this position. If applied,
leakage will occur.
Stop valve
(Spindle type)
Flare nut
Use two spanners
here for pipe con-
nection
Do not work with
two spanners
here.
Refrigerant
leakage shall
occur
Position to apply
spanners
Don not apply
two spanners
work here
Spindle type Ball type
C A U T I O N
• At the test run, fully open the spindle and ball stop valve.
• If not fully opened, the devices will be damaged.
• Do not attempt to turn service valve rod beyond its stop.
• Do not loosen the stop ring. If the stop ring is loosened, it is
dangerous since the spindle will hop out.
• An excess or a shortage of refrigerant is the main cause of
trouble to the units. Charge the correct refrigerant quantity
according to the description of label at the inside of service
cover.
• Check for refrigerant leakage in detail. If a large refrigerant
leakage occurs, it will cause difculty with breathing or harmful
gases would occur if a re was being used in the room.
To Next Page
