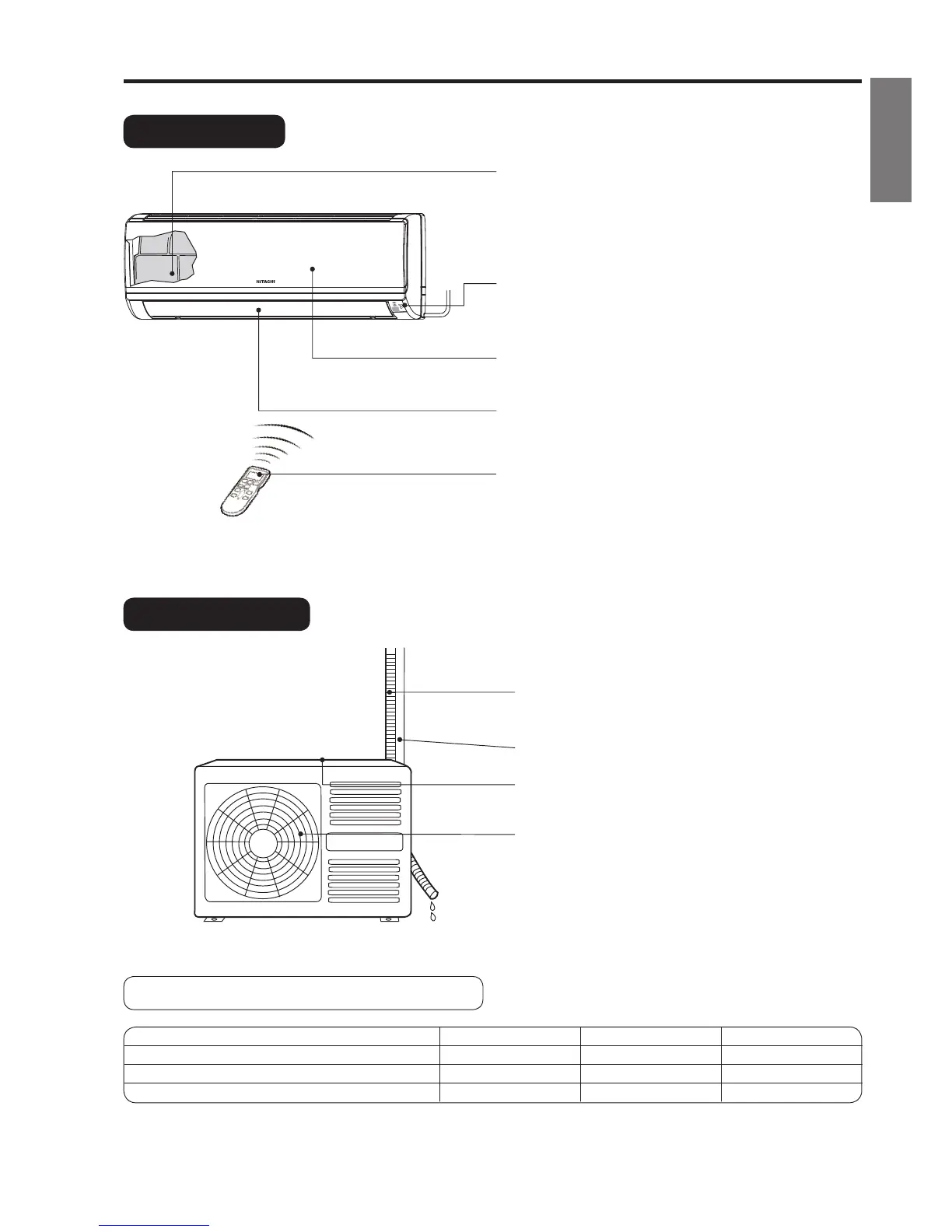

NAMES AND FUNCTIONS OF EACH PART
INDOOR UNIT
AIR FILTER
To prevent dust from coming into the door unit.
(Refer page 17)
INDOOR UNIT INDICATORS
Light indicator showing the operating condition.
(Refer page 6)
FRONT PANEL
HORIZONTAL DEFLECTOR • VERTICAL
DEFLECTOR (AIR OUTLET)
(Refer page 13)
REMOTE CONTROL
Send out operation signal to the indoor unit. So as to
operate the whole unit.
(Refer page 7)
OUTDOOR UNIT
DRAIN PIPE
Condensed water drain to outside.
CONNECTING CORD
AIR INLET (BACK, LEFT SIDE)
AIR OUTLET
MODEL NAME AND DIMENSIONS
MODEL WIDTH(mm) HEIGHT(mm) DEPTH(mm)
RAS-X10CBK, RAS-X13CBK、RAS-X18CBK 780 280 218
RAC-X10CBK、RACX13CBK 700(+59) 505 258(+48)
RAC-X18CBK 750(+91) 548 288(+47)
(Refer page 6)
