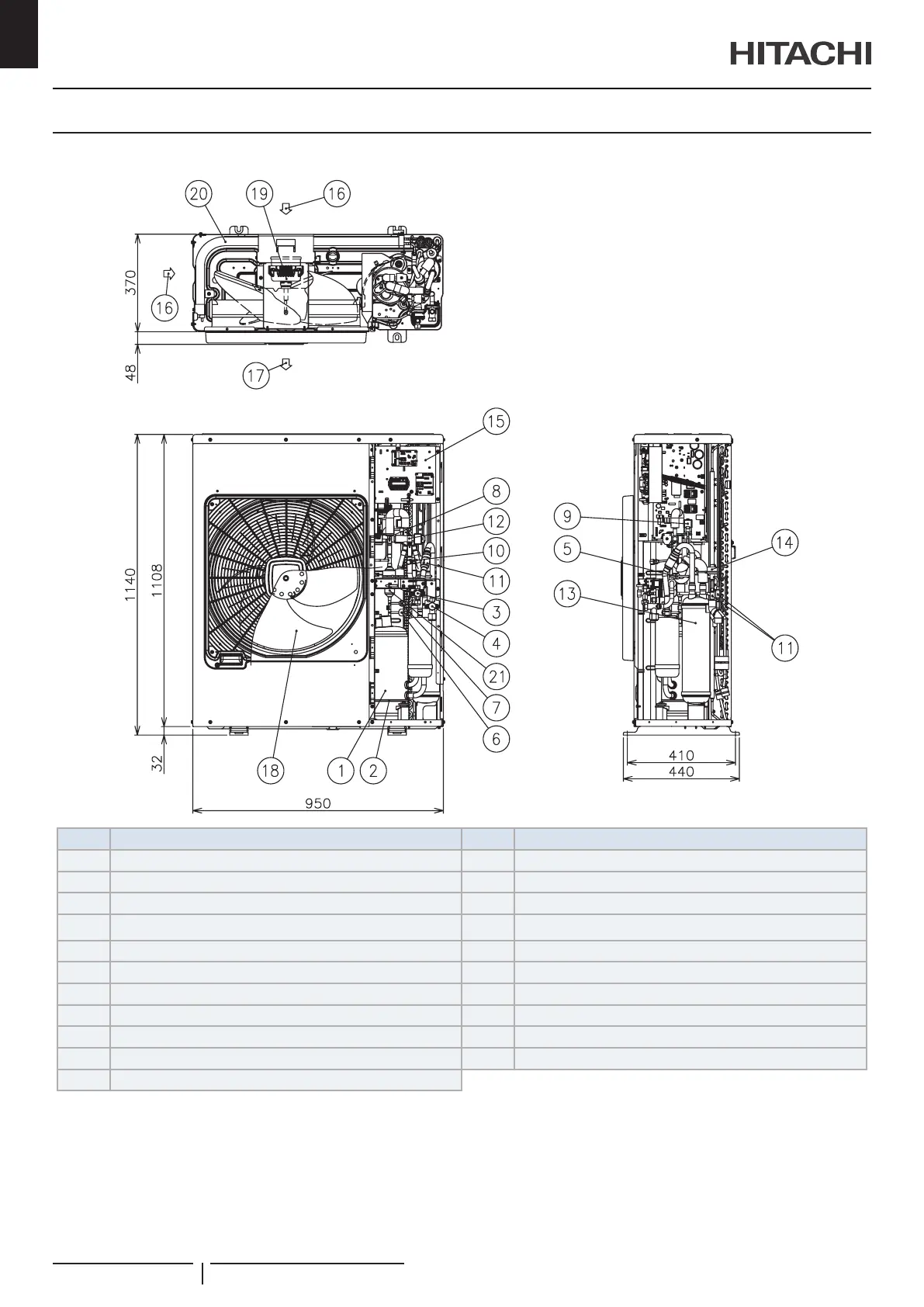

6 NAME OF PARTS
Nº Part Name Nº Part Name
1 Compressor 12 Reversing Valve
2 Crankcase heater 13 Accumulator
3 Stop valve for gas line 14 Micro-computer control expansion valve
4 Stop valve for liquid line 15
5 Low pressure switch for control 16 Air inlet
6 High pressure sensor 17 Air outlet
7 High pressure switch for protection 18 Propeller fan
8 Check valve 19 Fan motor
9 Solenoid valve 20 Heat exchanger
10 Check joint 21 Silencer
11 Strainer (x3)
Name of parts
PMML0545 rev.2 - 04/2021
