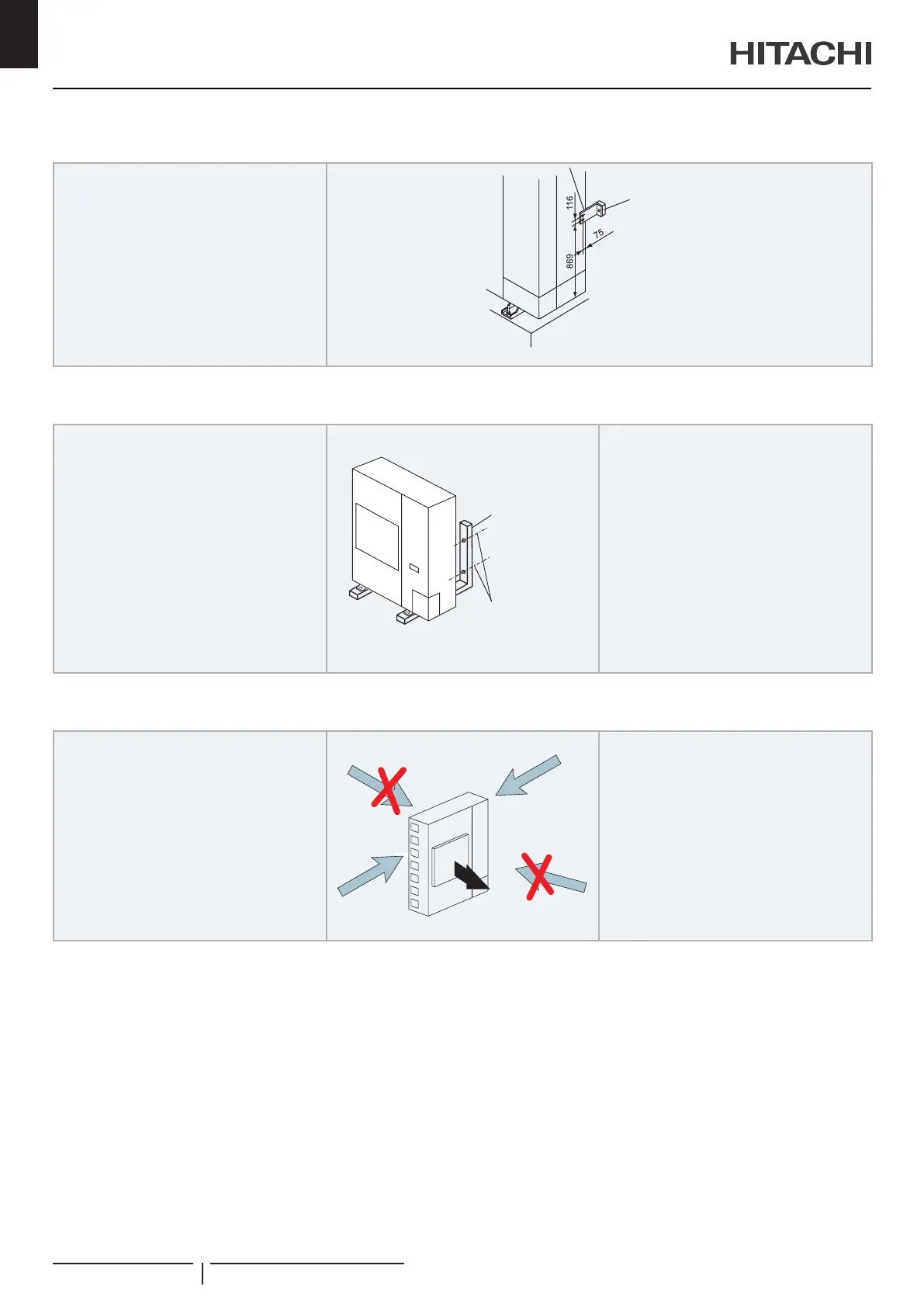

Fix unit to the wall
Ensure the foundation so that avoid the
deforming and noise.
In case of prevention from vibration transfer to
the building, use rubber Mat.
Rubber Material
(Field Supplied)
Suspended unit
Suspend the unit as the drawing indicates.
Ensure that wall can resist the Outdoor unit
It is recommended to select each foot support
to bear the full weight of the unit (in order to
consider stress fatigue applied when unit is
working too).
Wall bracket (*)
Anchor Bolts (*)
(*) Field supplied
! CAUTION
• Payattentiontothefollowingforinstallation:
• Installation shall ensure that outdoor unit
will not incline, vibrate, make noise or fall
downbyablastofwindorinanearthquake.
Calculate quake-resistance strength to
ensure that installation is strong enough
againstfalling.Fixtheunitwithwires(eld
supplied)wheninstallinginalocationwithout
wallsorwindbreakandlikelyexposed toa
blastofwind.
• Touseavibration-proofmat,xfourplaces
tothefrontandback.
Installing location where the unit will be exposed to strong wind
Follow the instructions below to install on
the rooftop or a location without surrounding
buildings, where strong wind is expected
against the product.
Choose a location where the outlet or inlet side
of the product will not be exposed to strong
wind.
When the outlet is exposed to strong wind:
! CAUTION
Excessivestrongwindagainsttheoutdoorunit
outletmay causeinverserotation anddamage
thefanandmotor.
PMML0545 rev.2 - 04/2021
