2
Voltage 230 V 240 V
Power Input 570 W 590 W
Capacities (1) Material: Rebar, equivalent grades: 250N, 300E, 500L, 500N, 500E
Number of piece(s) that Cutting Bending
can be processed at one time
ø10 mm 2 pieces ø10 mm 3 pieces
ø12 mm 1 piece ø12 mm 2 pieces
ø16 mm 1 piece ø16 mm 1 piece
Weight 17.0 kg (excluding cord)
STANDARD ACCESSORIES
(1) Allen key (For M5 hexagon socket bolt)
....................................................... 1 (attached to unit)
(2) One set of cutters ......................... 1 (attached to unit)
(3) Carrying case ................................ 1

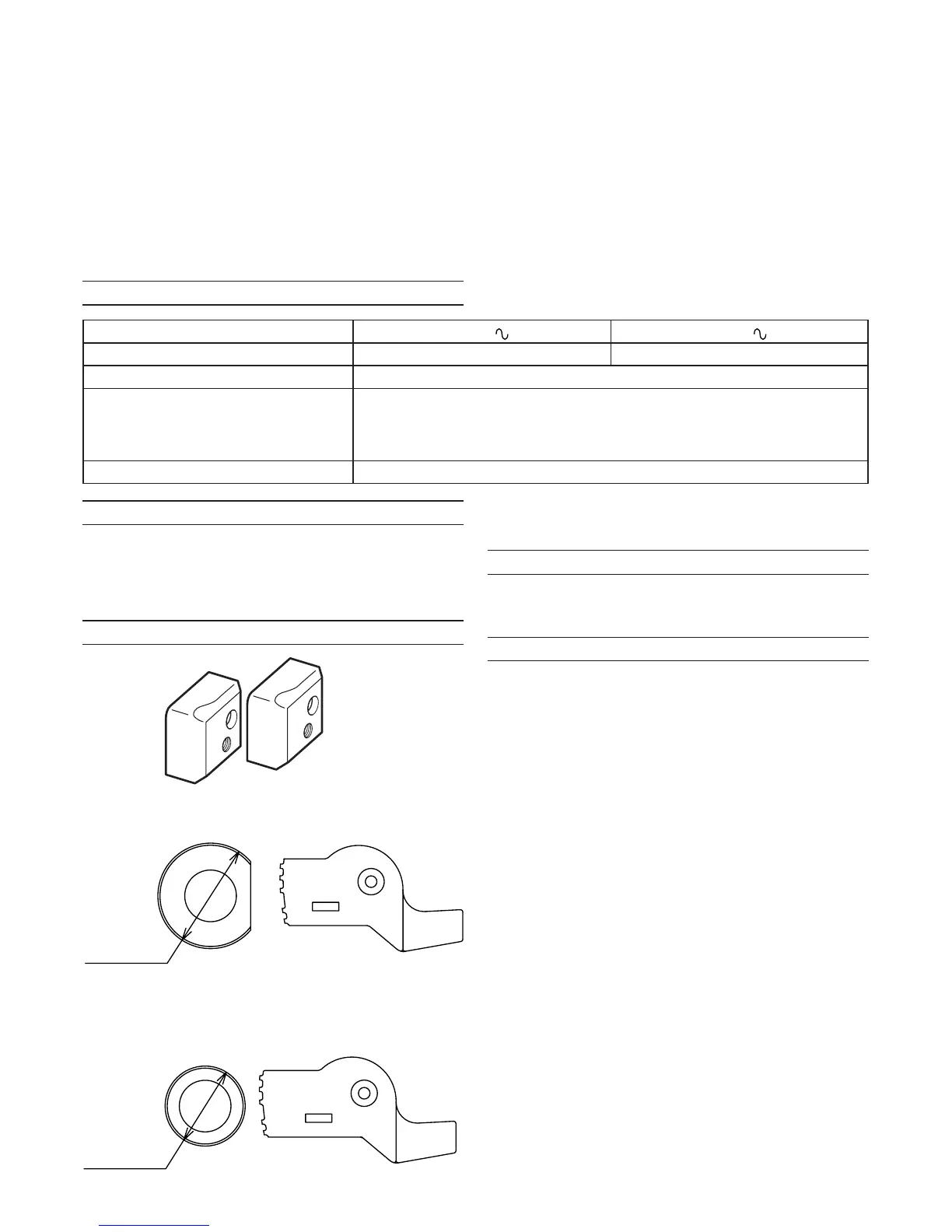

OPTIONAL ACCESSORIES (sold separately)
1. Cutter
* One set containing two pieces
2. Center Roller (D 50) Set
* This is used when the bending diameter of a rebar
is changed to (bent diameter: R 25).
3. Center Roller (D 38) Set
* This is used when the bending diameter of a rebar
is changed to (bent diameter: R 19).
APPLICATIONS
䡬 Cutting of rebar
䡬 Bending of rebar
PRIOR TO OPERATION
WARNING!
Before use, check the following items. Concerning items
1-7, always be sure to check them before plugging the
power cord into the receptacle.
1. Power source
Ensure that the power source to be utilized conforms
to the power requirements specified on the product
nameplate.
Also, avoid using DC power or engine generators. Not
only will the tool get damaged but an accident can
result.
2. Power switch
Ensure that the power switch is in the OFF position. If
the plug is connected to a receptacle while the power
switch is in the ON position, the power tool will start
operating immediately, which could cause a serious
accident.
3. Extension cord
When the work area is removed from the power
source, use an extension cord of sufficient thickness
and rated capacity. The extension cord should be kept
as short as practicable.
CAUTION:
Damaged cord must be replaced or repaired.
50 mm
(R25 mm)
SPECIFICATIONS
5. While turning switches, never put your hand close to
the cutter, reaction stopper, or bending roller. Bringing
your hand close to these components can result in
serious injury.
6. If you accidentally drop the unit or knock it against
something, thoroughly examine the unit and ensure
that there are no damages, cracks, or deformations
on the cutter and unit.
7. If you use the machine continuously, the inner cover
and gear cover can become hot. After such continuous
use, do not touch the inner cover and gear cover. (Fig. 1)
8. Do not immerse unit in water as this may cause
malfunction or electric shock.
CAUTION:
䡬 Install the cutter and accessories securely according
to the handling instructions. If you fail to install them
properly, they may come off and cause an injury.
䡬 Be sure to unplug the power cord from the receptacle
when the cutter is checked, cleaned, and replaced.
Failure to do so can result in a serious injury.
38mm
(R19 mm)
To Next Page
