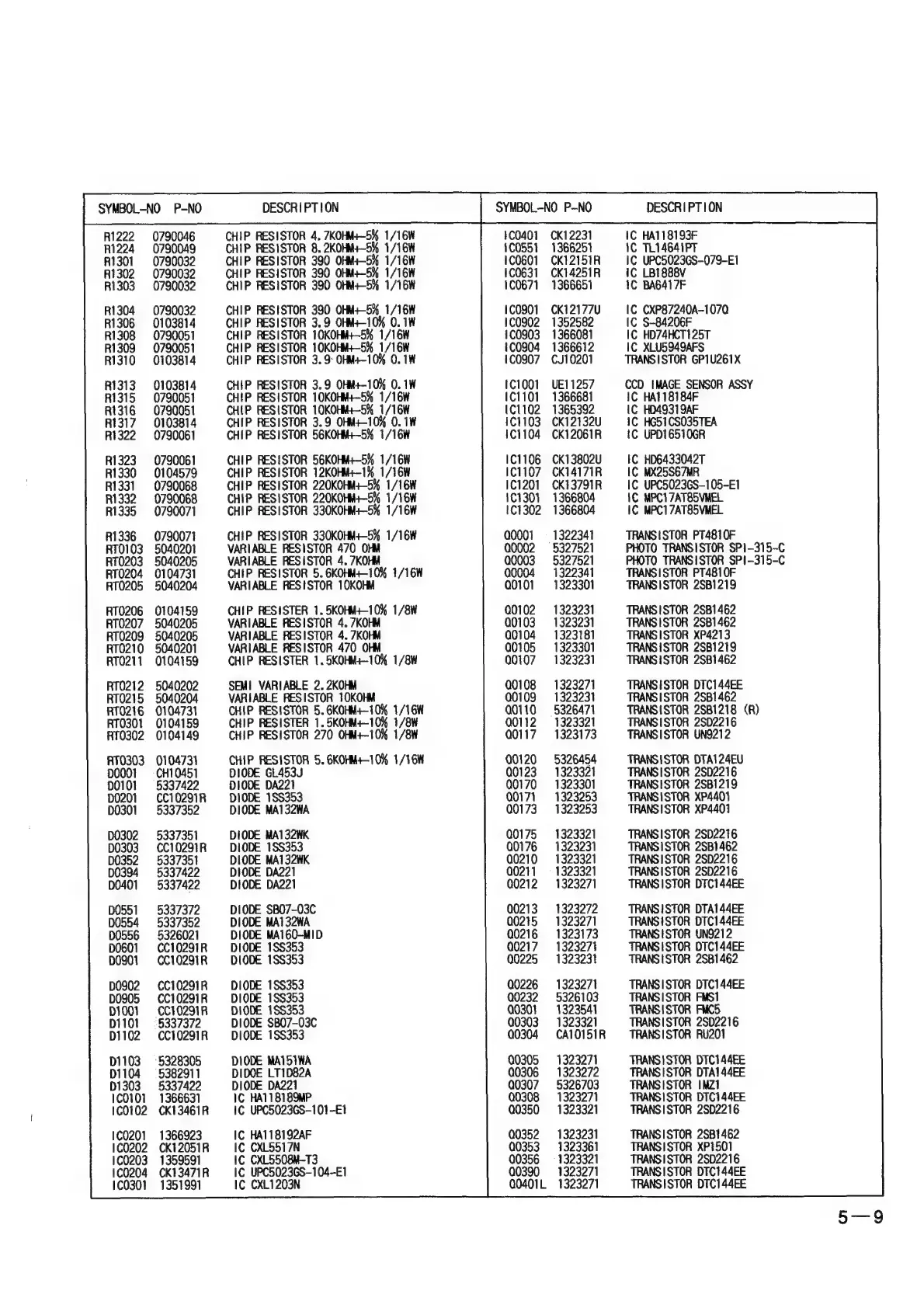

Hitachi VM-E338E - Page 45

SYMBOL-NO P-NO DESCRIPT1ON
R1222 0790046 CHIP RESISTOR 4, 7KOHM3—5% 1/16W
Ri224 0790049 CHIP RESISTOR 8, 2KOHM4~5% 1/16W
R1301 0790032 CHIP RESISTOR 390 OHM4-5% 1/16W
R1302 0790032 CHIP RESISTOR 390 OHM+-5% 1/16W
R1303 0790032 CHIP RESISTOR 390 OHM+-5% 1/160
R1304 0790032 CHIP RESISTOR 390 OHM+-5% 1/16W
R1306 0103814 CHIP RESISTOR 3.9 OHM+-10% 0.10
R1308 0790051 CHIP RESISTOR TOKOHM+-5% 1/16W
R1309 0790051 CHIP RESISTOR 10KOHM+—-5% 1/16W
0103814 CHIP RESISTOR 3. 9: OHM4+-10% 0. 1
R1313 0103814 CHIP RESISTOR 3.9 OHM+-10% 0. 1W
R1315 0790051 CHIP RESISTOR 10KOHMY~5% 1/16W
Ri316 0790051 CHIP RESISTOR 10KOHM4-5% 1/16W
R1317. 0103814 CHIP RESISTOR 3.9 OHM+-10% 0. 1W
0790061 CHIP RESISTOR S6KOHM4-5% 1/16W
R1323 0790061 CHIP RESISTOR 56KOHM+—5% 1/16W
R1330 0104579 CHIP RESISTOR 12KOHM+-1% 1/16W
R1331 0790068 CHIP RESISTOR 220KOHM+-5% 1/16W
R1332 0790068 CHIP RESISTOR 220KOHM4+-5% 1/16W
0790071 CHIP RESISTOR 330KOHM4-5% 1/16W
R1336 0790071 CHIP RESISTOR 330KOHM+—-5% 1/16W
RT0103 5040201 VARIABLE RESISTOR 470 OHM
RT0203 5040205 VARIABLE RESISTOR 4. 7KOHM
RT0204 0104731 CHIP RESISTOR 5. 6GKOHM+-10% 1/16W
RTO205 VARIABLE RESISTOR 10KOHM
RT0206 0104159 CHIP RESISTER 1. 5KOHM+-10% 1/8W
RT0207 5040205 VARIABLE RESISTOR 4. 7KOHM
RT0209 5040205 VARIABLE RESISTOR 4. 7KOHM
RT0210 5040201 VARIABLE RESISTOR 470 OHM
RTO211 0104159 CHIP RESISTER 1. 5KOHM+-10% 1/8W
5040202 SEMI VARIABLE 2. 2KOHM
RT0215 5040204 VARIABLE RESISTOR 10KOHM
RTOZ16 0104731 CHIP RESISTOR 5. 6KOHM+-10% 1/16W
RT0301 0104159 CHIP RESISTER 1. 5KOHM+-10% 1/8W
RT0302 0104149 CHIP RESISTOR 270 OHM+-10% 1/8W
AT0303 0104731 CHIP RESISTOR 5. GKOHM+-10% 1/16W
DO001 §=— CH10451 DIODE GL453J
DO101 = 5337422 DIODE DA221
D0201 + CC10291R DIODE 1SS353
5337352 DIODE MA132WA
DO302 5337351 DIODE MA132WK
DO303 ¢C10291R DIODE 18S353
00352 5337351 DIODE MA132WK
D0394 = 5337422 DIODE DA221
00401 §==5337422 DIODE DA221
D0551 5337372 DIODE SBO7~03C
DO554 5337352 DIODE MA132WA
DO556 5326021 DIODE MA160-MID
DO0601 + CC10291R DIODE 1SS353
CC10291R DIODE 18S353
CC10291R DIODE 1SS353
DO905 CCI0291R DIODE 1$S353
DIOOi §=CCIO291R DIODE 1$S353
DI10t §=— 337372 DIODE $B07-03C
CC10291R DIODE 1SS353
D103 = 5328305 DIODE MAID51WA
D1104 = 382911 DIDOE LT1D82A
DI303. 5337422 DIODE DA221
1€0101 1366631 1¢ HA118189MP
1CO102 CK13461R —IC_:-UPC5023GS-101-E1
1€0201 1366923 IC HA118192AF
100202 CKI2051R —‘IC CXL5517N
1€0203 1359591 IC CXL5508M-T3
100204 CK13471R —‘IC _UPC5023GS-104-E1
100301 1351991 IC CXL1203N
SYMBOL-NO P-NO DESCRI PT1ON
100401 CK12231 IC HA118193F
1€0551 1366251 1C TL14641PT
1C0601 CK12157R IC UPC5023GS-079-E1
10631 CK14251R IC LBI888V
100671 1366651 1C BAG417F
1C0901 CK12177U IC CXP87240A-1070
1€0902 1352582 IC S-84206F
100903 1366081 IC HD74HCTI25T
100904 1366612 IC XLU5949AFS
1€0907 €J10201 TRANSISTOR GP1U261X
(C1001 =UE11257 CCD IMAGE SENSOR ASSY
1€1101 1366681 IC HA118184F
(C1102 1365392 1C HD49319AF
1€1103 CK12132U 1C HG51CSO35TEA
1€1104 CK12061R iC UPD165106R
1€1106 CK13802U IC HD6433042T
1C1107 CK14171R IC MX25S67MR
101201 CK13791R I€ UPC50236S-105-E1
101301 1366804 1C MPC17AT85VMEL
101302 1366804 IC MPC17AT85VMEL
Q0001 = 1322341 TRANSISTOR PT4810F
Q0002 5327521 PHOTO TRANSISTOR SP1-315-C
Q0003 5327521 PHOTO TRANSISTOR SPi-315-C
00004 1322341 TRANSISTOR PT4810F
1323301 TRANSISTOR 28B1219
Q0102 1323231 TRANSISTOR 2SB1462
Q0103 = 1323231 TRANSISTOR 2SB1462
Q0104 1323181 TRANSISTOR XP4213
00105 1323301 TRANSISTOR 2SB1219
1323231 TRANS{STOR 2SB1462
Q0108 1323271 TRANSISTOR DTC144EE
Q0109 1323231 TRANSISTOR 2SB1462
Q0110 = 5326471 TRANSISTOR 2SB1218 (R)
00112 = 1323321 TRANSISTOR 2SD2216
1323173 TRANSISTOR UN9212
5326454 TRANSISTOR DTAI24EU
Q0123 1323321 TRANSISTOR 2SD2216
00170 1323301 TRANSISTOR 2SB1219
00171 = 1323253 TRANSISTOR XP4401
1323253 TRANSISTOR XP4401
Q0175 1323321 TRANSISTOR 2SD2216
Q0176 = 1323231 TRANSISTOR 2SB1 462
00210 1323321 TRANSISTOR 2SD2216
00211 = 1323321 TRANSISTOR 2SD2216
1323271 TRANSISTOR DTC144EE
00213 1323272 TRANSISTOR DTA144EE
Q0215 1323271 TRANSISTOR DTC144EE
00216 1323173 TRANSISTOR UN9212
00217. 1323271 TRANSISTOR DTC144EE
1323231 TRANSISTOR 2SB1462
00226 1323271 TRANSISTOR DTC144EE
00232 5326103 TRANSISTOR FMS1
Q030! 1323541 TRANSISTOR FMC5S
Q0303 1323321 TRANSISTOR 2802216
Q03 CA10151R = TRANSISTOR RU201
00305 1323271 TRANSISTOR DIC144EE
Q0306 1323272 TRANSISTOR DTA144EE
Q0307 5326703 TRANSISTOR |MZ1
Q0308 1323271 TRANSISTOR DTC144EE
1323321 TRANSISTOR 2SD2216
Q0352 1323231 TRANSISTOR 2SB1462
Q0353. 1323361 TRANSISTOR XP1501
Q0356 = 1323321 TRANSISTOR 2SD2216
Q0390 1323271 TRANSISTOR DTC144EE
QO0401L 1323271 TRANSISTOR DTC144EE
