Name Model name Height
Number of
drive slots Drive type
DBLE DW-F1000-
DBLE
2U (88.2 mm) 12 3.5 inch (LFF)
LFF with front panel bezel
Number Item Description
1 POWER LED Green: Drive tray is powered
on.
2 READY LED Green: Drive tray is
operational.
3 Locate LED Amber:
■
Indicates the location of
the chassis.
■
Can be turned on or
turned off by the
maintenance utility.
4 Lock Locks and unlocks the front
panel bezel by using the
supplied key.

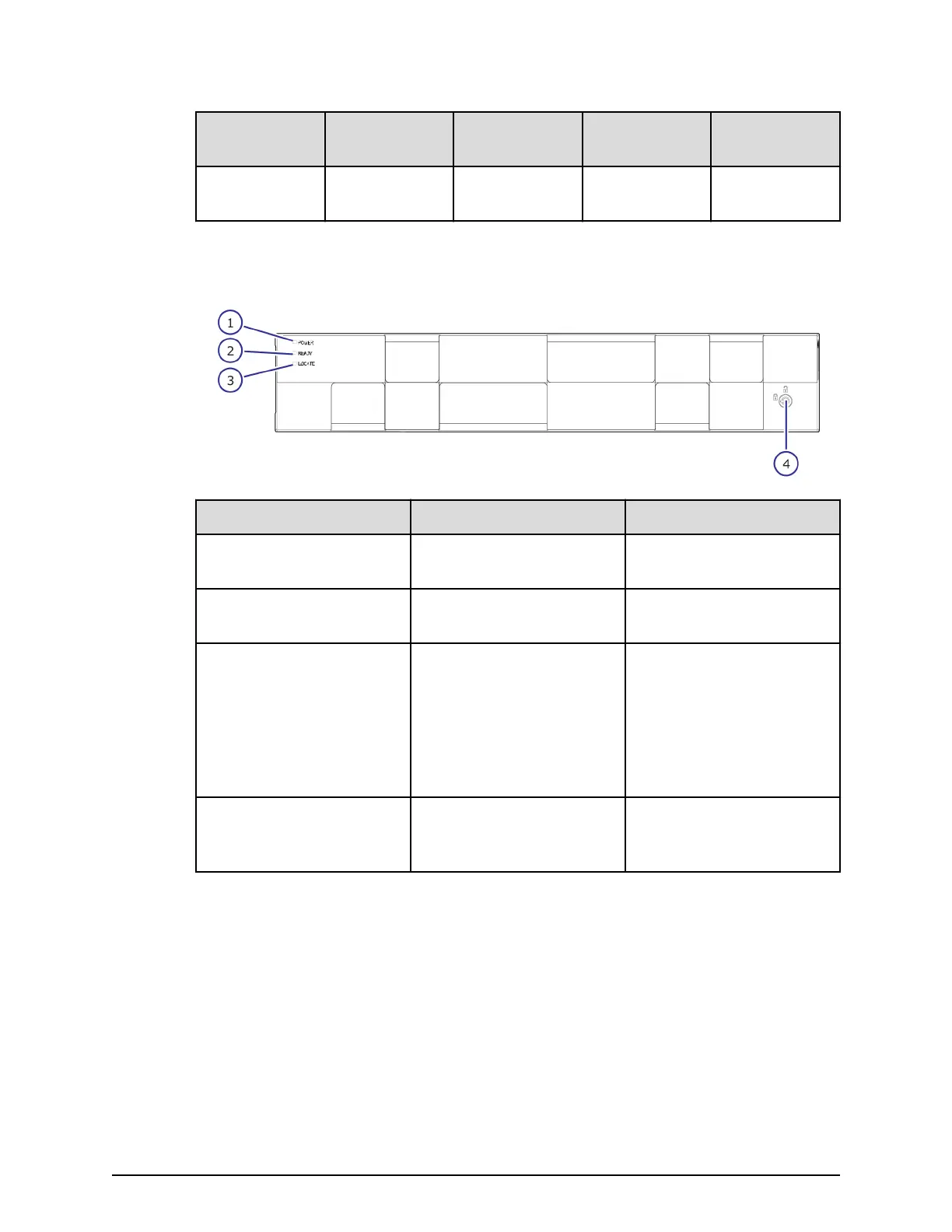

LFF with front panel bezel
Chapter 2: Hardware overview
Hitachi Virtual Storage Platform E590 and E790 Hardware Reference Guide 32
