13-10
OPTIONAL ATTACHMENTS AND DEVICES
BLADE
Model ZX130-6N with Blade
Type of Front-End Attachment 2.52 m (8 ft 3 in) Arm
Bucket Capacity (Heaped) PCSA 0.50 m
3
(0.65 yd
3
), CECE 0.45 m
3
Operating Weight 13500 kg (29800 lb)
Base Machine Weight 11000 kg (24300 lb)
Engine Isuzu AR-4JJ1XASA-02 74.9 kW/200 min
-1
(102 PS/2000 rpm)
A: Overall Width (Excluding back mirrors) 2490 mm (8 ft 2 in)
B: Cab Height 2790 mm (9 ft 2 in)
B': Cab Top Handrail Height 2870 mm (9 ft 5 in)
C: Rear End Swing Radius 2190 mm (7 ft 2 in)
D: Minimum Ground Clearance *410 mm (1 ft 4 in)
E: Counterweight Clearance *840 mm (2 ft 9 in)
F: Engine Cover Height *2270 mm (7 ft 5 in)
F': Handrail Height 2870 mm (9 ft 5 in)
G: Overall Width of Upperstructure 2460 mm (8 ft 1 in)
H: Undercarriage Length 3580 mm (11 ft 9 in)
I: Undercarriage Width 2490 mm (8 ft 2 in)
J: Sprocket Center to Idle Center 2880 mm (9 ft 5 in)
K: Track Shoe Width 500 mm (Grouser Shoe) (20 in)
Ground Pressure 43 kPa (0.44 kgf/cm
2
, 6.2 psi)
Swing Speed 13.3 min
–1
(rpm)
Travel Speed (fast/slow) 5.5/3.3 km/h (3.4/2.1 mph)
Gradeability 35 ° (tanθ = 0.70)
f
NOTE: * The dimensions do not include the height of the shoe lug.

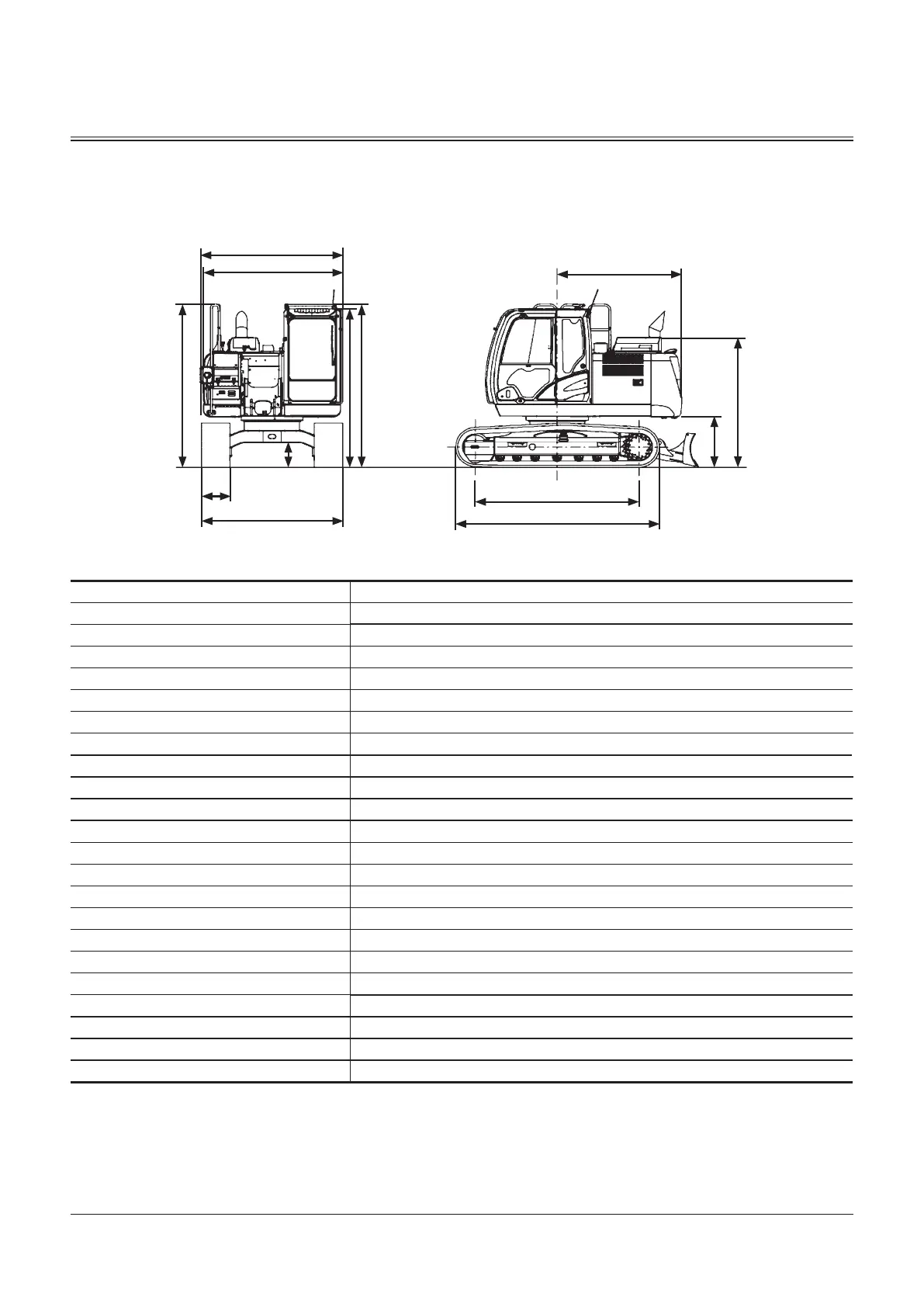

Specifications
ZX130-6N with Blade
MDC1-13-005
A
G
D
K
I
H
J
B'
B
F'
C
E
F
