Hitachi Zaxis 250 - Forester Butt-N-Top Grapple, Rear Entry Cab

Operation—Operating The Machine
OUT1739,0000203 –19–07AUG02–1/1

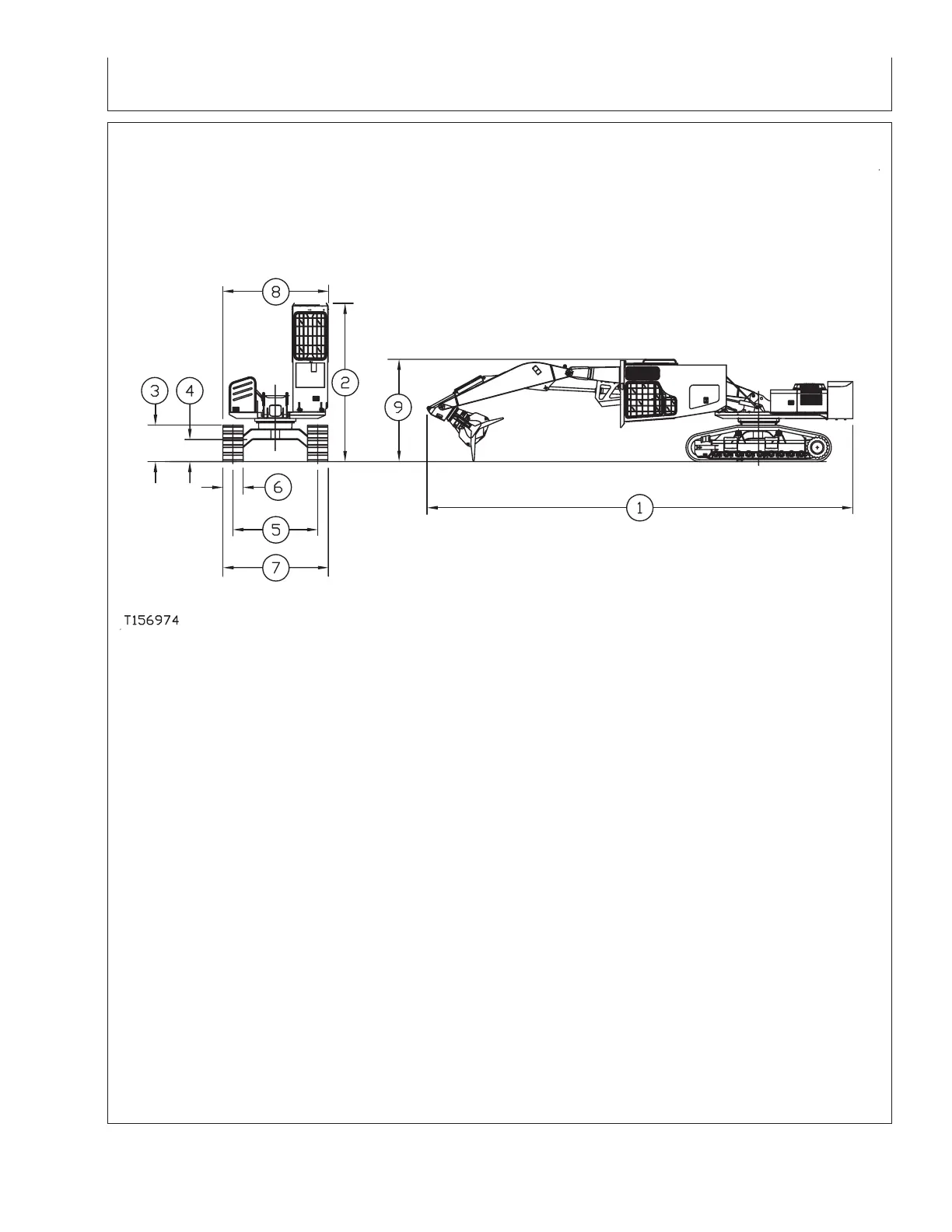

Shipping Dimensions—Zaxis 250 Forester Butt-N-Top Grapple, Rear Entry Cab
T156974 –UN–02AUG02
Zaxis 250 Forester Butt-N-Top Grapple
Item Measurement Specification
1—Overall Length Overall Length 14684 mm (48 ft 2 in.)
2—Maximum Cab Height Height With 48 in. Riser 4955 mm (16 ft 3 in.)
Height With 72 in. Riser 5455 mm (17 ft 11 in.)
3—Track Height Height 1250 mm (4 ft 1 in.)
4—Minimum Ground Clearance Height 737 mm (29 in.)
5—Sprocket Center To Sprocket Width 2924 mm (9 ft 7 in.)
Center Width
6—Track Shoe Width Width 700 mm (28 in.)
7—Undercarriage Width Width 3624 mm (11 ft 11 in.)
8—Overall Machine Width Width 3650 mm (12 ft )
9—Cab Transport Height Height 3524 mm (11 ft 7 in.)
