Offset Arm Front
13-22
OTHER ATTACHMENTS AND DEVICES
Offset Arm Front
ZX75US-5A

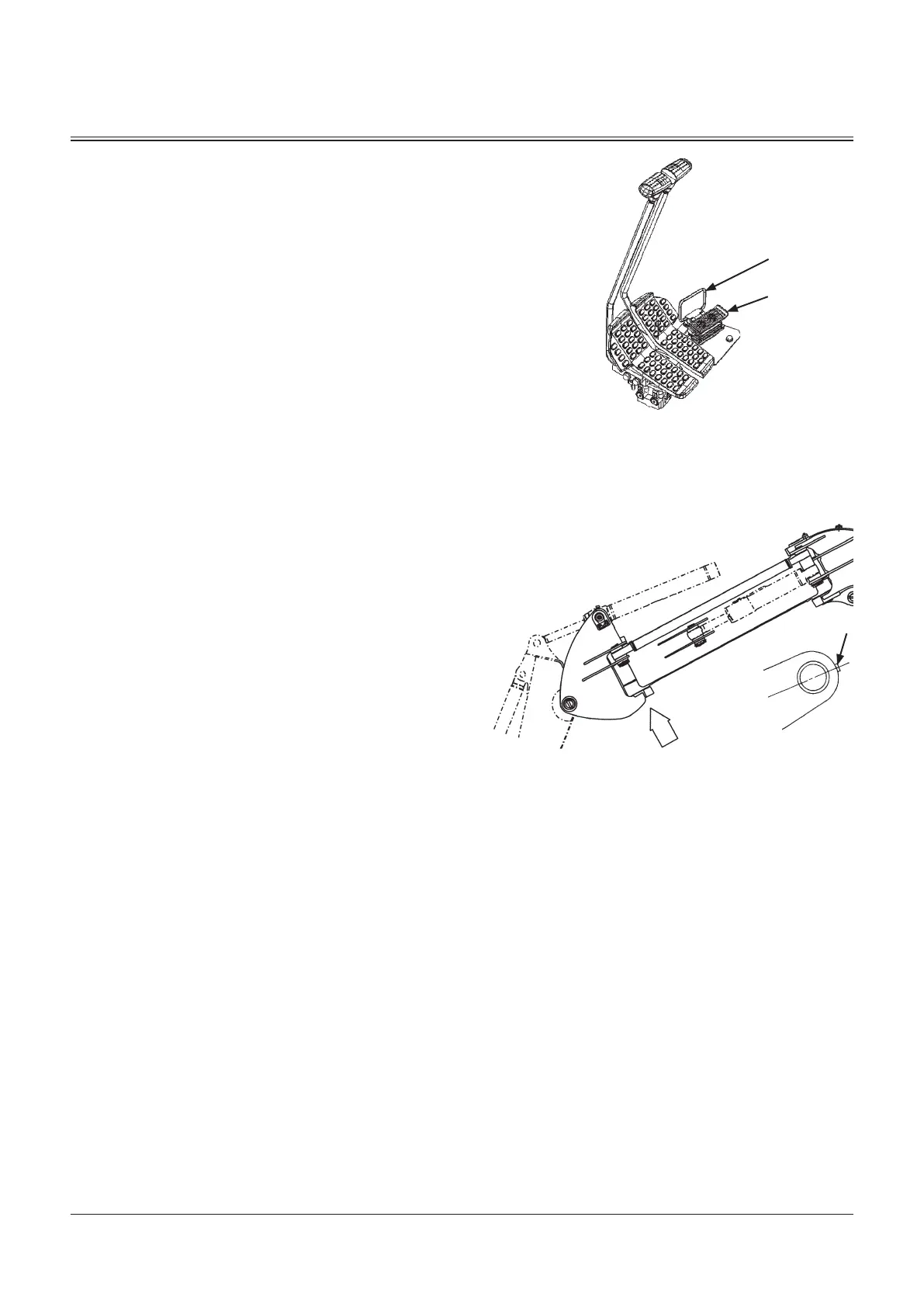

Offset Control Pedal
Pedal (2) is located at the operator’s right foot.
Offset Operation
1. Turn cover (1) forward to unlock pedal (2).
2. Push down on the left side of pedal (2) to move the arm
to the left offset position.
3. Push down on the right side of pedal (2) to move the arm
to the right offset position.
4. Turn cover (1) backward to lock pedal (2) when the arm
offset operation is no longer required.
The center position of the arm (offset 0) can be confirmed
by consulting the gauge at the top end of the boom.
M1P1-13-007
1
2
M152-14-003
(Offset 0)
Offset Gauge
