HTS-TEMP (Temperature Sensor)
The temperature sensors can measure up to four different temperature locations. Wrapped with high-temperature,
shrink resistant tubing, these sensors can read temperatures from -40°C to 200°C.
These sensors can be used almost anywhere.
HTS-GPS (GPS Sensor)
Hitec’s GPS sensor is specially designed for RC applications, unlike conventional single dimension GPS sensors,
such as car navigation, the five dimensional cube antenna has been implemented to cover dynamic movement of RC aircraft.
As a result, it can receive stable GPS information, even during 3D flight.
- When the system boots up for the first time, the position recognition time may be slow depending on where you are. Once it connects,
it memorizes its last location for about four hours. When the system reboots at the same location within that four hour time period,
the position recognition time will be significantly shortened.
- During extreme 3D flight, the signal can be lost. If this happens, try to stabilize the aircraft until the connection is reestablished.
Note
HTS-ORPM (RPM Sensor)
The optical RPM sensor has been made for use with larger, outdoor helicopters. Installation is simple.
Attach it to the boom and connect it to the sensor station. It can read from 0 to 50,000 RPM.
- Since weather conditions may influence the readout, to insure the most accurate reading, make sure you install the sensor as far away
from the fly bar paddles as possible.
Note
HTS-MRPM (RPM Sensor)
The magnetic RPM sensor has been developed for indoor aircraft and for applications when the O-RPM sensor is too big to be
installed. This will give you a much more accurate reading.
- For optimum performance, make sure the distance between the magnet and the sensor is less than 1mm.
Note
Note
*How to install T-clamp type connector
Wattage can be measured
when both current & voltage
sensors are installed properly.
HTS-VOLT (Voltage Sensor)
Two types of voltage sensors(connectors) available according to the installation area & user’s convenience. Measureable range is
0 to 100V. T-clamp type connector provides firmer & safer installation, but please note that this is NOT a renewable item.
Alligator type connector enables you to measure the voltage anywhere you want.
- Be careful not to make unexpected short circuit after the installation of Alligator type connector.
Caution
TipTip
Tip
CLICK
CLICK
Hitec 2.4GHz Telemetry Displays
No more guess,
see the necessary information in real-time
Cookpit View Screen
HTS-iVIEW
TX
HTS-VOICE HPP-22 HTS-NAVI
Telemetry
mobile
interface
Telemetry
voice
annoucement
Telemetry
pc
interface
Wireless
Telemetry
Receiver
SPECTRA 2.4
ECLIPSE 7 PRO AURORA 9
TipTip
Tip
Above telemetry interface systems can be used with any brand
transmitters which are compatible with SPECTRA 2.4 module.
HTS-C50, HTS-C200 (Current Sensor)
HTS-C50 & C200, the current sensors, have been specially designed to measure current status accurately & conveniently.
There are two types according to measurable current amount & resolution, C50 has delicate sensing (0.1Amp per unit) capacity
and C200 for high current sensing(1Amp per unit) capacity.
- Make sure to fix the current sensor firmly to get accurate and consistent value.
- Pay close attention to the direction of arrow marked on the sensor and it should be synchronized with the direction of electric current.
- Make sure not to install the sensor near to the magnet as it will create unexpected interference.
Please note each current sensors can be influenced each other if they are installed in very near distance.
- The wire should be located in the center of sensor’s hole to get more accurate current value.
Note
HTS-VARIOMETER(Variometer Sensor)
The variometer sensor can read altitude by detecting the atmospheric pressure difference and it is more accurate and responses
faster than the GPS sensor (1m resolution). The altitude of the plane can also be measured in indoor flying field.
HTS-ENGINE TEMP (Engine Temperature Sensor)
The engine temperature sensor can be attached directly to the engine by using the provided metal socket.
The sensor can measure from -40°C to 200°C. Metal housing and Teflon wire coating have made the new temper
ature sensor more durable than the previous one by being able to resist the heat and vibration from the engine.
- Power up the system prior to fueling.
- During extreme 3D flight, the reading may become inaccurate.
If this happens, try to hover (for heli) and flatten out (for plane) for a few seconds to reestablish an accurate reading.
Note
HTS-FUEL (Fuel Level Sensor)
The fuel level sensor indicates five levels of fuel (Full, 3/4, 1/2, 1/4, Empty) to the flier. Installation is easy.
Simply stick the sensor outside of the fuel tank and fly. It can even read the values during inverted flight.
- The fuel sensor is made to be used with glow fuel only
Caution
- Be sure to check each channel before plugging it in. If not, the servo may operate in a different channel and be damaged.
Note
HTS-SERVO MANAGER (Servo Manager Sensor)
Servo manager sensor shows each 4 servo’s current consumption in real time between the range of 0.1A ~ 10A.

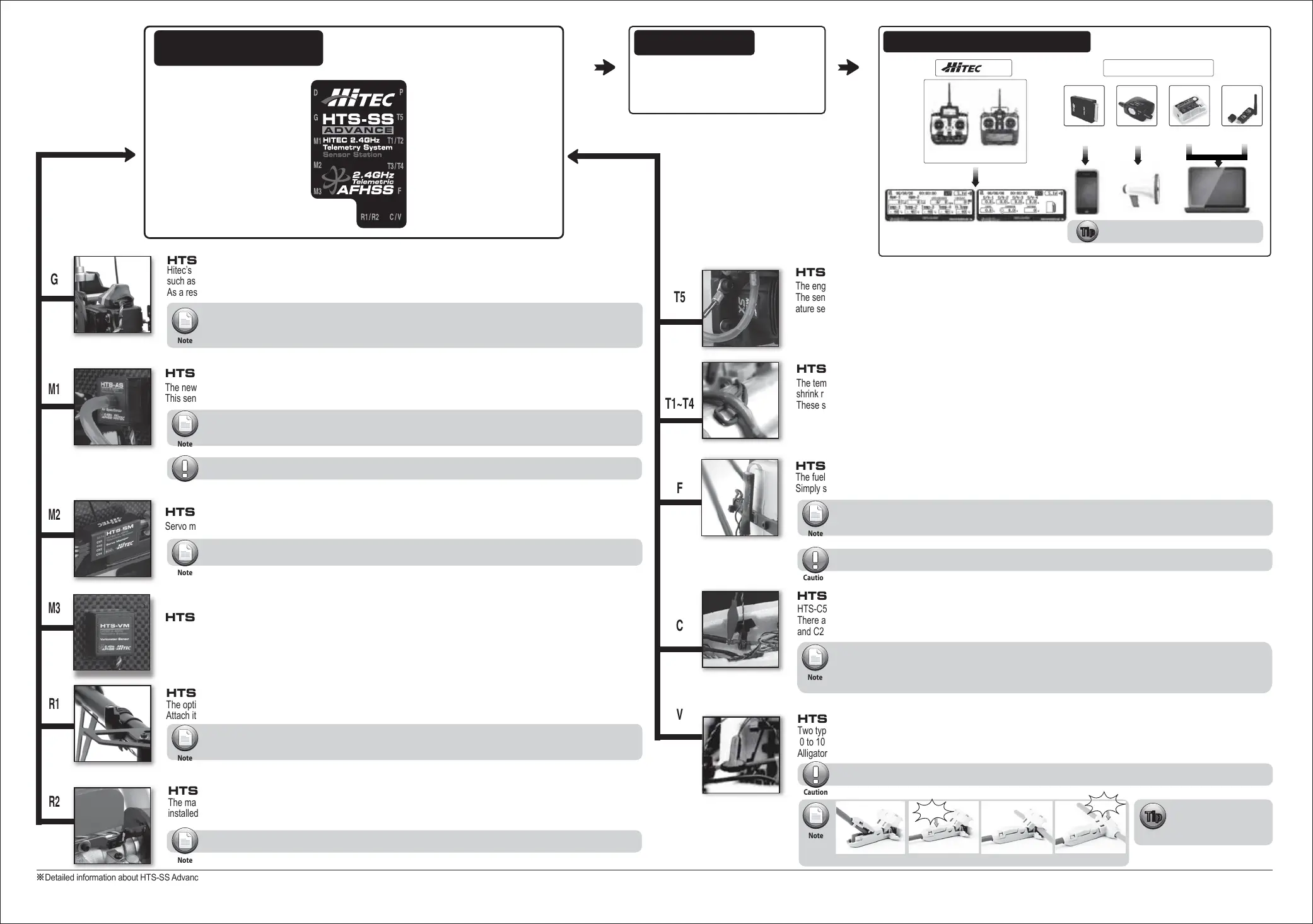

HTS-SS
(ADVANCE)
Collects the data from the sensors and
passes it to the Optima series receivers.
D : DATA
G : GPS
M1 : AIR SPEED
M2 : SERVO MANAGER
M3 : VARIOMETER
R1,R2 : ORPM & MRPM
P : POWER
T5: ENGINE TEMP
T1~T4 : TEMP
F : FUEL
C : CURRENT
V : VOLT
Optima 7/9
Receiver
Takes data from HTS-SS Advanced
and transmits it to the AFHSS
2.4GHz module
.
- The provided Pitot Tube must be placed in a safe location where it isn’t affected by the slip stream of the propeller.
If Pitot Tube is bent or the silicon tube is distorted, air speed will not be read accurately.
Note
HTS-AIR SPEED (Air Speed Sensor)
The new air speed sensor provides exact speed information by Pitot Tube sensing.
This sensor provides more accurate and faster response than the GPS sensor.
- The Pitot Tube must be placed in the direction of the plane and remain level with the plane.
Caution
