HITROL HT-100PT - UART Input Parameters; UART Output Data; Interpreting UART Error States

No. Contents Description Remark
[## Err Stage]
Normal state Normal Operation
Sensor problem occurred Problem for sensing
Sensor cable open circuit, short, broken probe
insulation, module sesnro failure, etc
Out of measurement range
Below or above the set value of Zero
or Span
NAMUR ME43 Caution area
(below 4mA above 20mA)
Invalid setting Abnormal setting Zero, Span conversely set setate

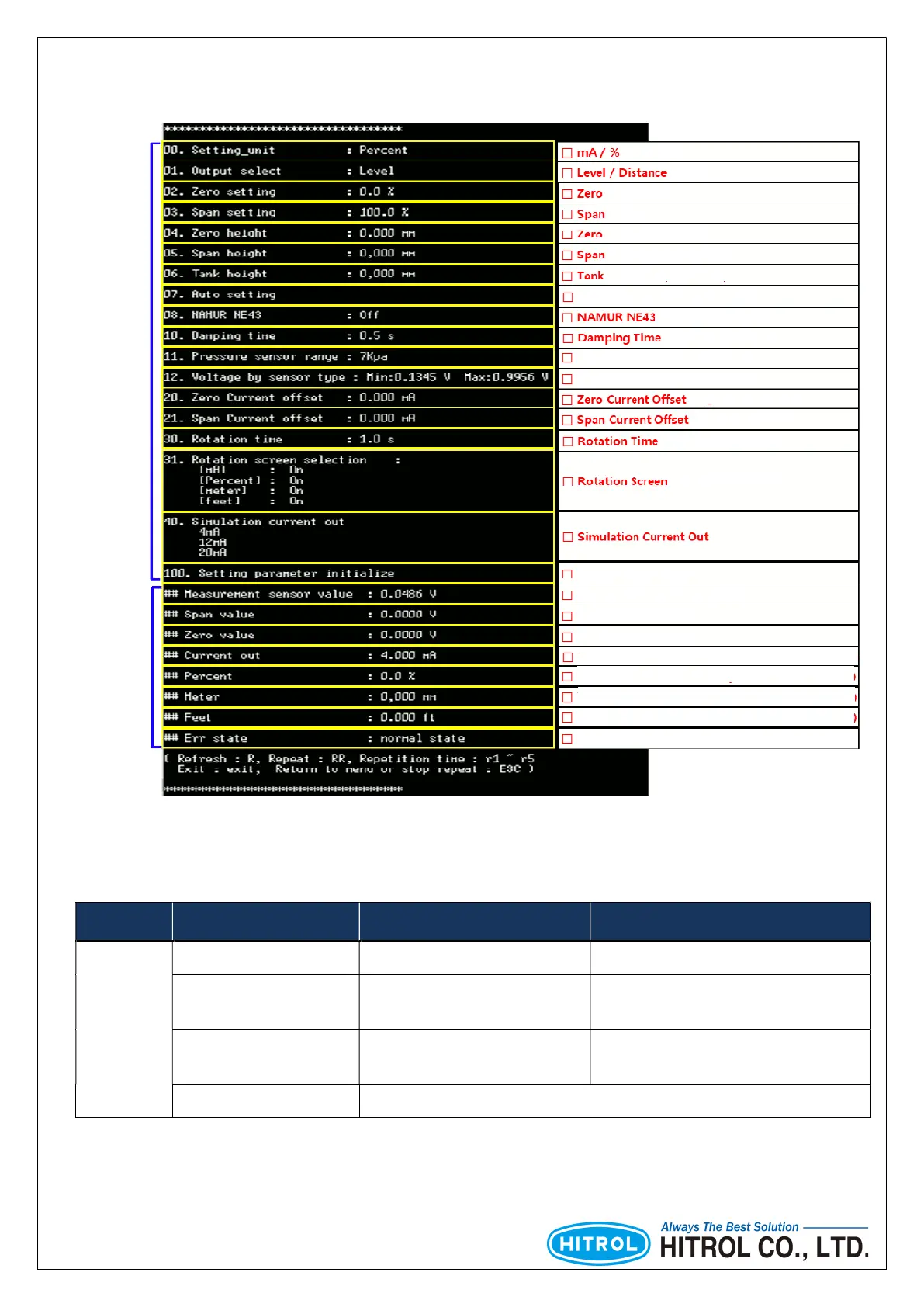

[HT-100P PC UART Launch Screen Composition Function]
[A Description of the Current Operation Status (##Err State)]
Input
Output
Unit Set
Set
Set
Set
Height Set (Based on level)
Height Set (Based on level)
Height Set (Based on level)
Function Set
Set
Adjustment
Adjustment
Select
Reset
Capacity Value of Current Measured
Capacity Value of Span Setting
Capacity Value of Zero Setting
Current Output of Current Value (01. Based on Output Select Setting)
Current Output of Percentage Value (01. Based on Output Select Setting)
Current Output of Length Value (01. Based on Output Select Setting)
Current Output of Feet Value (01. Based on Output Select Setting)
Current Operating State
Calibration value by Sensor Type
Apply Pressure Sensor Setting
Auto Zero / Span Set (Based on level)
