HITROL HT-100PT - Product Dimensions and Models; Installation Precautions

HT-100P Series
HITROL CO., LTD. 4
Actual product may have a tolerance slightly.
Products &
Dimension
Precautions
for Installation
■ When the sensor is installed at an extended nozzle or a ling pipe, liquid should not be
crystallized or congealed on the pipe.
■ Sensor should not be installed at the drainage of tank or a place that liquid is flowing.
■ When the sensor is installed at the top of the tank, and material in the tank behaves like
fluid, a guide pipe should be installed.
■ When the sensor is installed at the side of the tank, a valve should be installed between
the nozzle and sensor.
■ Sensor should be installed and used at the open tank atmospheric pressure compensated.
■ When flanges or screws are used for fastening, the size should be the same.
■ The user should place a washer between each bolt and nut to prevent loosening.
■ When fastening flanges to each other, gaskets should be used.
(The gaskets should be selected considering the temperature of the content and the
pressure of the container.)
■ The user should install appropriate products after judging whether the products are to be
used in explosion-proof regions.

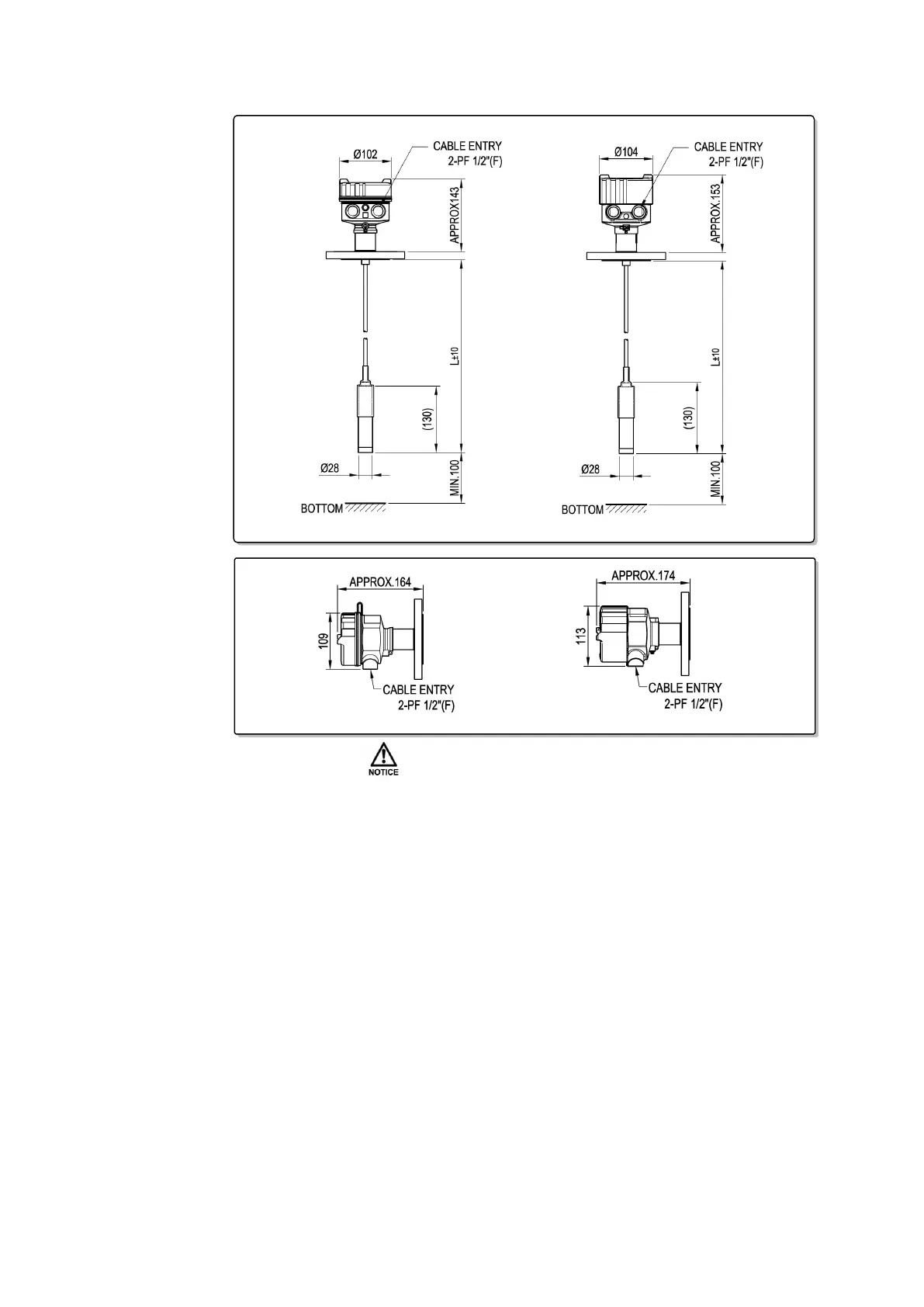

HT-100PT
HT-100PS
<PBT Housing>
<AL. Housing>
<PBT Housing>
<AL. Housing>
