HT-100P Series
HITROL CO., LTD. 3
Over View
Characteristics
Operation
Principle

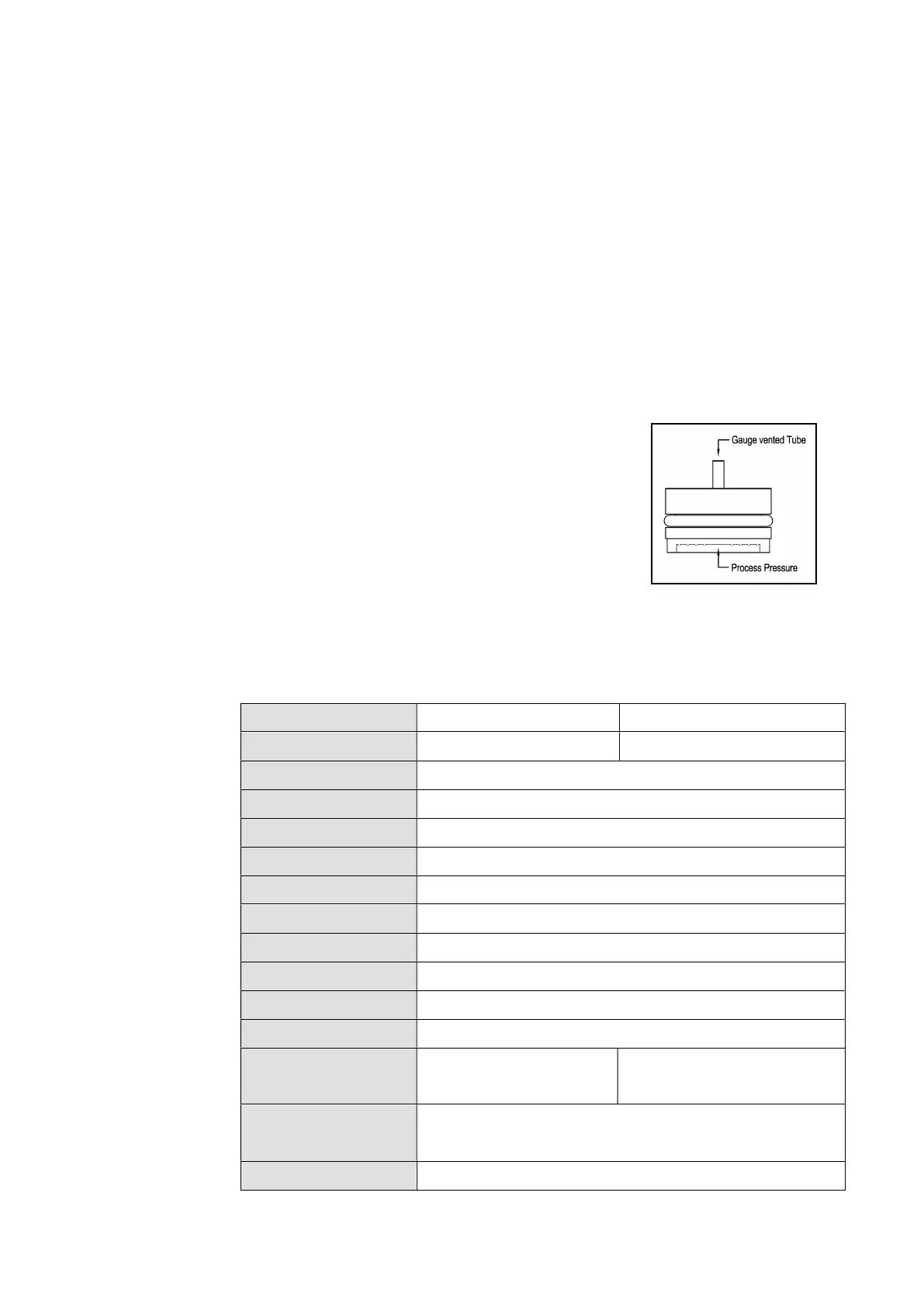

Specification
Model HT-100PT HT-100PS
Installation Top Side
Mounting Screw & Flange
Ambient Temperature -20°C ~ +60°C
Process Temperature Max. 70°C
Process Pressure ATM
Power Source DC 24V
Output DC 4~20mA (2~wire)
Enclosure Weather-Proof IP65 (AL. Housing IP66)
Application Liquid
Range Min. 1m, Max. 30m
Wetted Parts Material SUS 304, 316L
Process Connection
50A JIS 10K RF Flange (Std.)
PF 1”(M) Screw
50A JIS 10K RF Flange (Std.)
PT 1”(M) Screw
Housing ; Cable Entry
AL. : PF 1/2”(F), IP66
PBT : PF 1/2”(F), IP65
Accuracy ± 0.25 % F.S
It is a sensor to continuously measure a hydrostatic pressure of a
liquid according to the certain height of the liquid column.
Hydrostatic pressure is calculated using the equation given below.
P = ρ x g x h
[P=Hydrostatic Pressure, ρ =Density of Liquid,
g=Gravity of Acceleration, h=Height of Liquid Column]
As seen in above equation, if density of liquid does not change, measured hydrostatic pressure is
detected as an electric signal proportional to the height of liquid column, since the height of
■ Installation on top or side of tank.
■ Easy installation and maintenance
■ No effect by a conductivity or composition change of medium
■ It is required attention because it is affected by a change of density.
HT-100P Series is a Hydrostatic Pressure Type Level Transmitter installing in top or side of tank
continuously measures the liquid levels in the tank. It measures hydrostatic pressure and converts
it to the current output, DC 4~20mA. It can be widely used in various industries such as PC Tank,
Dam Surge Tank, Sluiceway. River and Wastewater special work.
