HITROL HT-100PT - HT-100 P Display Module: Components and Functions

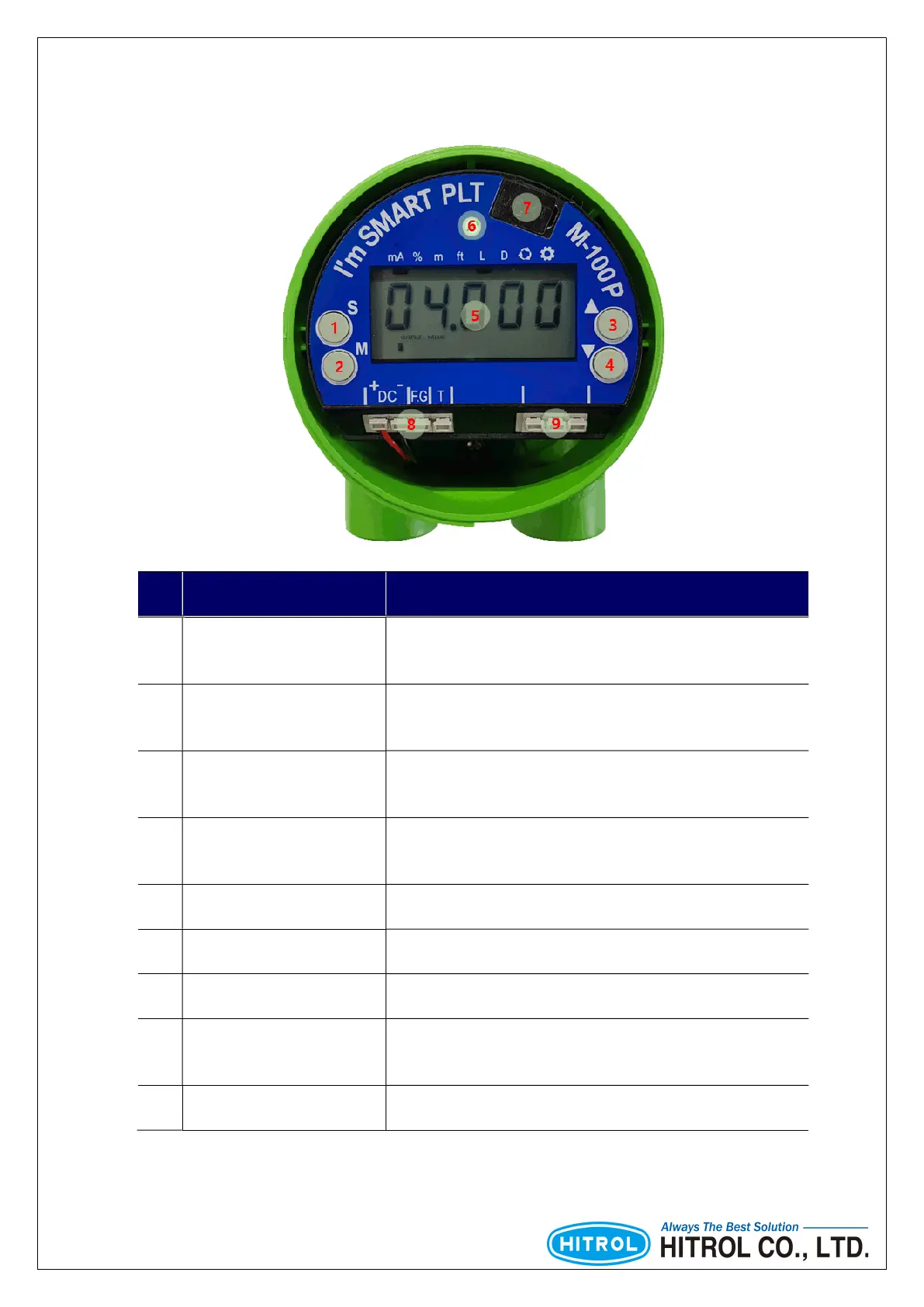

1. HT-100P DISPLAY Module Composition & Function
No Composition Function
1 S Key
■ Function Setting
■ Save the setting
2 M Key
■ Mode change
■ Cancellation
3 ▲ Key
■ Span set
■ Setting the value left / up
4 ▼ Key
■ Zero set
■ Setting the value right / down
5 LCD ■ Display of operating and setting status
6 LED ■ Display of power and status
7 UART ■ Communication port of HT-100P setup and operation status
8 PWR
■ For supply power and current output
■ Check for output current
9 N/A ■ Not used
