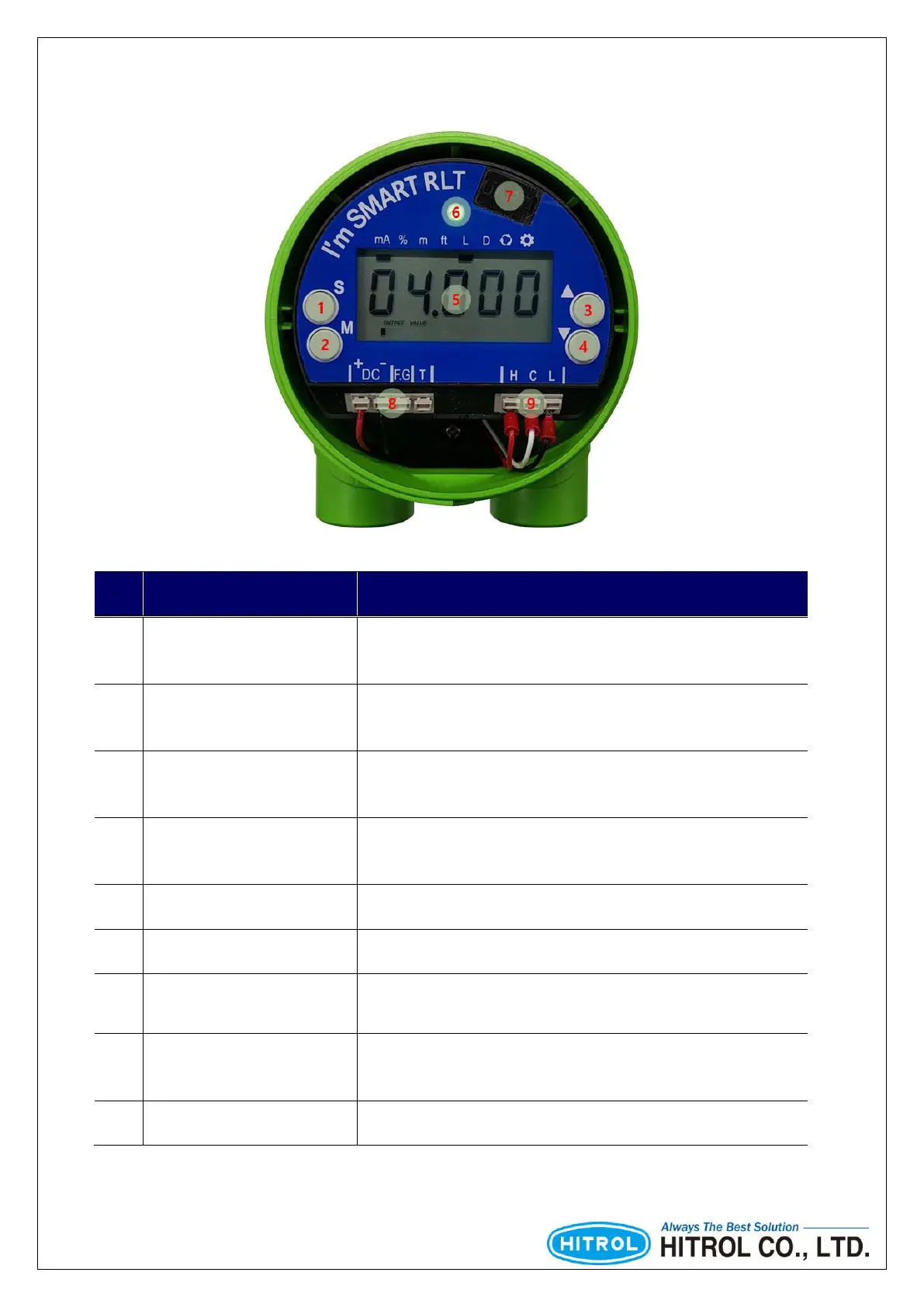

1. HT-100R Display Module Configuration & Function
No.
Configuration
Function
1
S Key
■ Function setting
■ Save the setting
2
M Key
■ Mode change
■ Cancellation
3
▲ Key
■ Span Set
■ Setting the value left & up
4
▼ Key
■ Zero Set
■ Setting the value right & down
5
LCD
■ Display of operating and setting status
6
LED
■ Display of power and status
7
UART
■ Communication port of HT-100R setup and operation
status
8
PWR
■ For supply power and current output
■ Check for output current
9
SENSOR
■ Connection with the sensor of HT-100R
