No.
Content
Description
Remarks
[## Err stage]
Normal state
Normal operation
Sensor problem occurred
Problem for sensing
Sensor cable open circuit, short,
broken probe insulation, module
sensor failure, etc.
Out of measurement
range
Below or above the set
value of Zero or Span
NAMUR NE43 Caution area
(below 4mA, above 20mA)
Invalid setting
Abnormal setting
Zero, Span conversely set state
[A Description of the Current Operating Status (##Err State)]

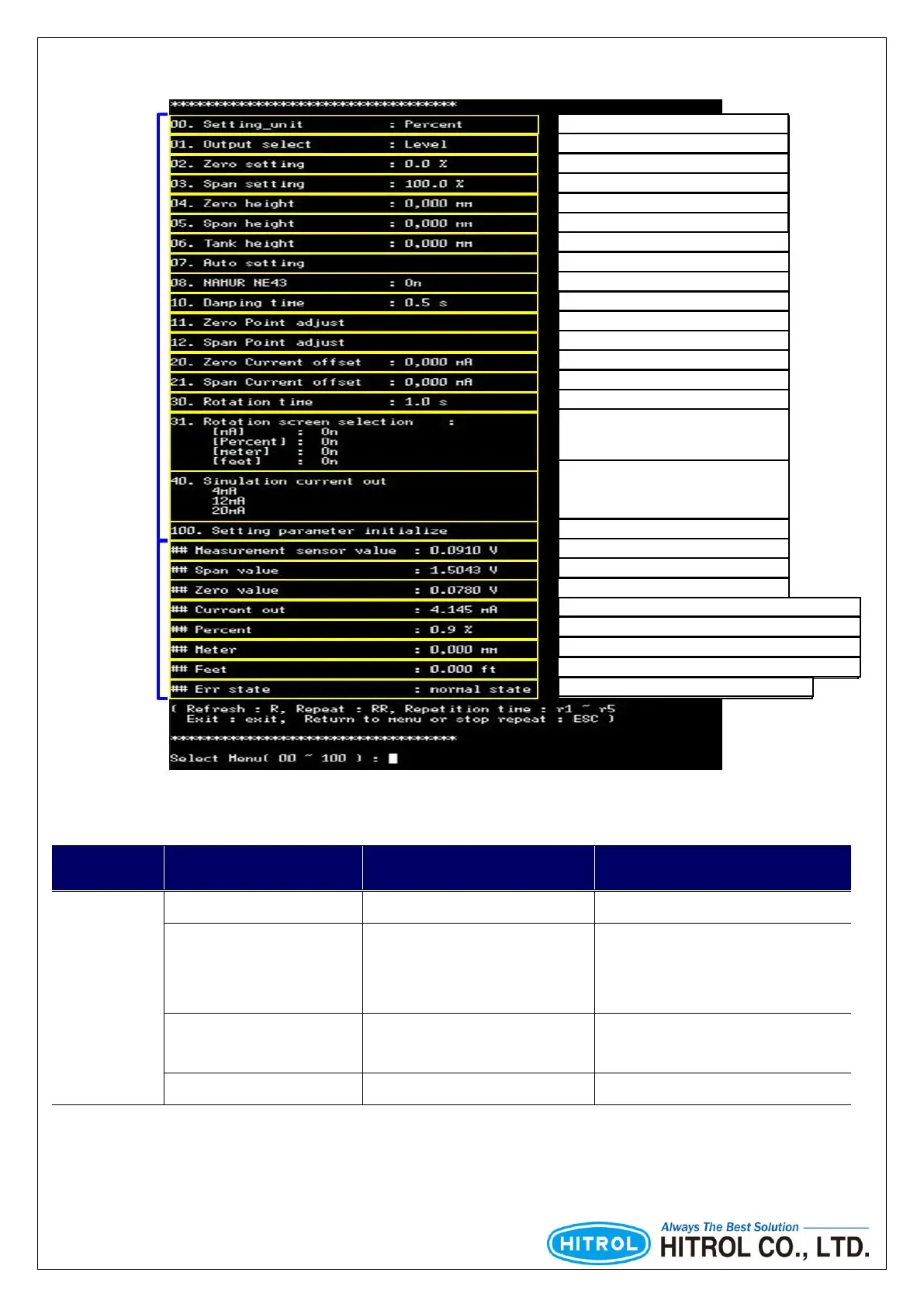

[M-100RD PC UART Launch Screen Compositions Function]
Input
Output
 mA / % Unit Set
 Level / Distance Set
 Zero Setting
 Span Setting
 Zero Height Setting (Criterion of Level)
 Span Height Setting (Criterion of Level)
 Tank Height Setting (Criterion of Level)
 Auto Set
 NAMUR NE43 Function Set
 Damping Time Set
 Zero Position Virtual Adjustment
 Span Position Virtual Adjustment
 Zero Current Offset Adjustment
 Span Current Offset Adjustment
 Rotation Time Adjustment
 Rotation Screen Select
 Simulation Current Out
 Reset
 Capacity Value of Current Measured
 Capacity Value of Span Setting
 Capacity Value of Zero Setting
 Current Output of Current Value (01. Output select Setting)
 Current Output of % Value (01. Output select Setting)
 Current Output of Length Value (01. Output select Setting)
 Current Output of Feet Value (01. Output select Setting)
 Current Operating State
