5. UART Monitoring
■ Monitoring Method
□ You can check the setup and operation status using PC and Smartphone.
□ The execution method is the same using PC and Smartphone. (Password: 1975)
□ Run Screen Component: You can check the sensor measurement status, sensitivity
setting value, relay setting, etc.
■ Monitoring Method Using PC
□ Component: PC, USB Cable (typical USB to Micro USB B), UART ADAPTOR.
[USB Cable]

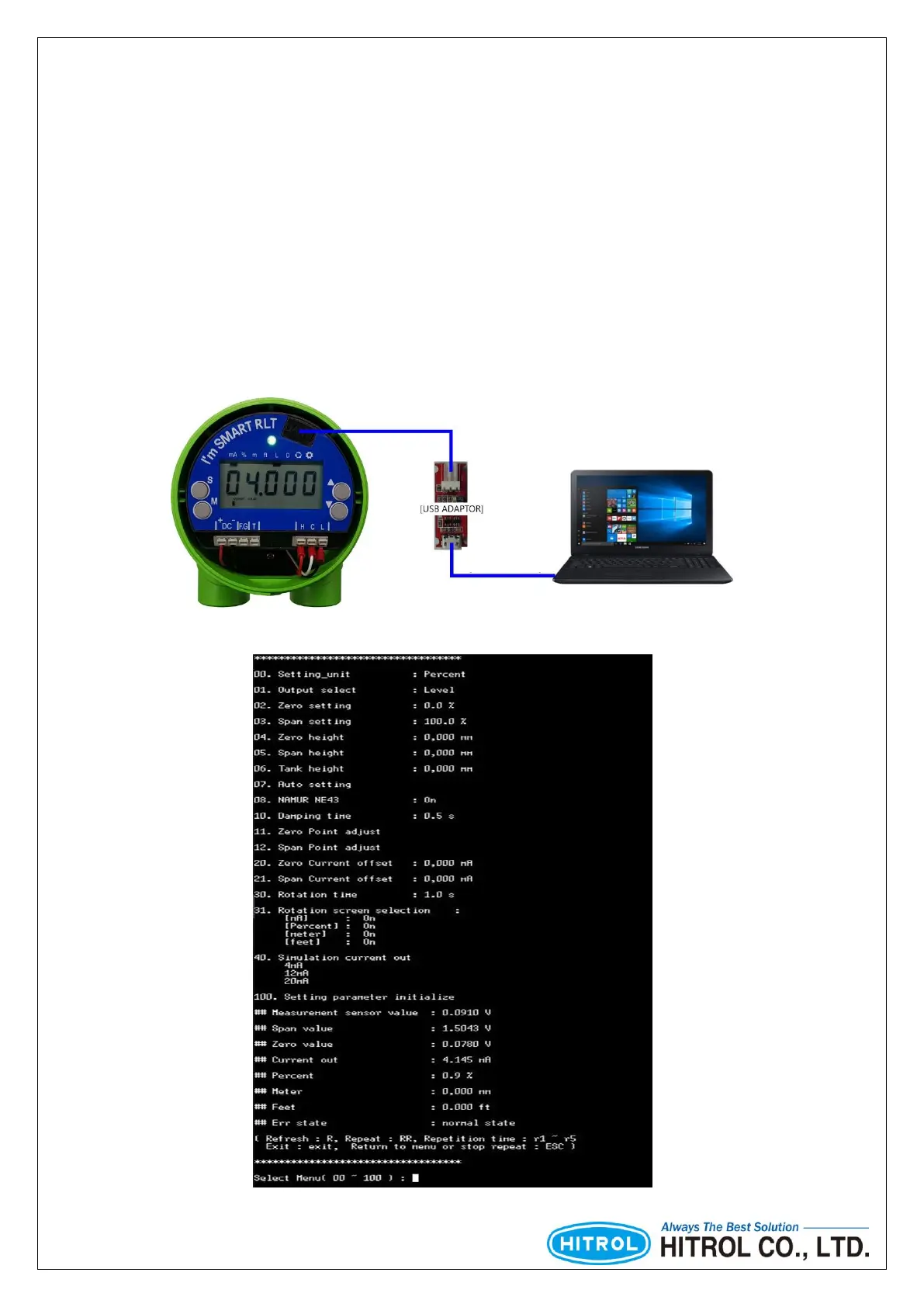

[M-100RD PC UART Component]
[M-100RD PC UART Run Screen]
