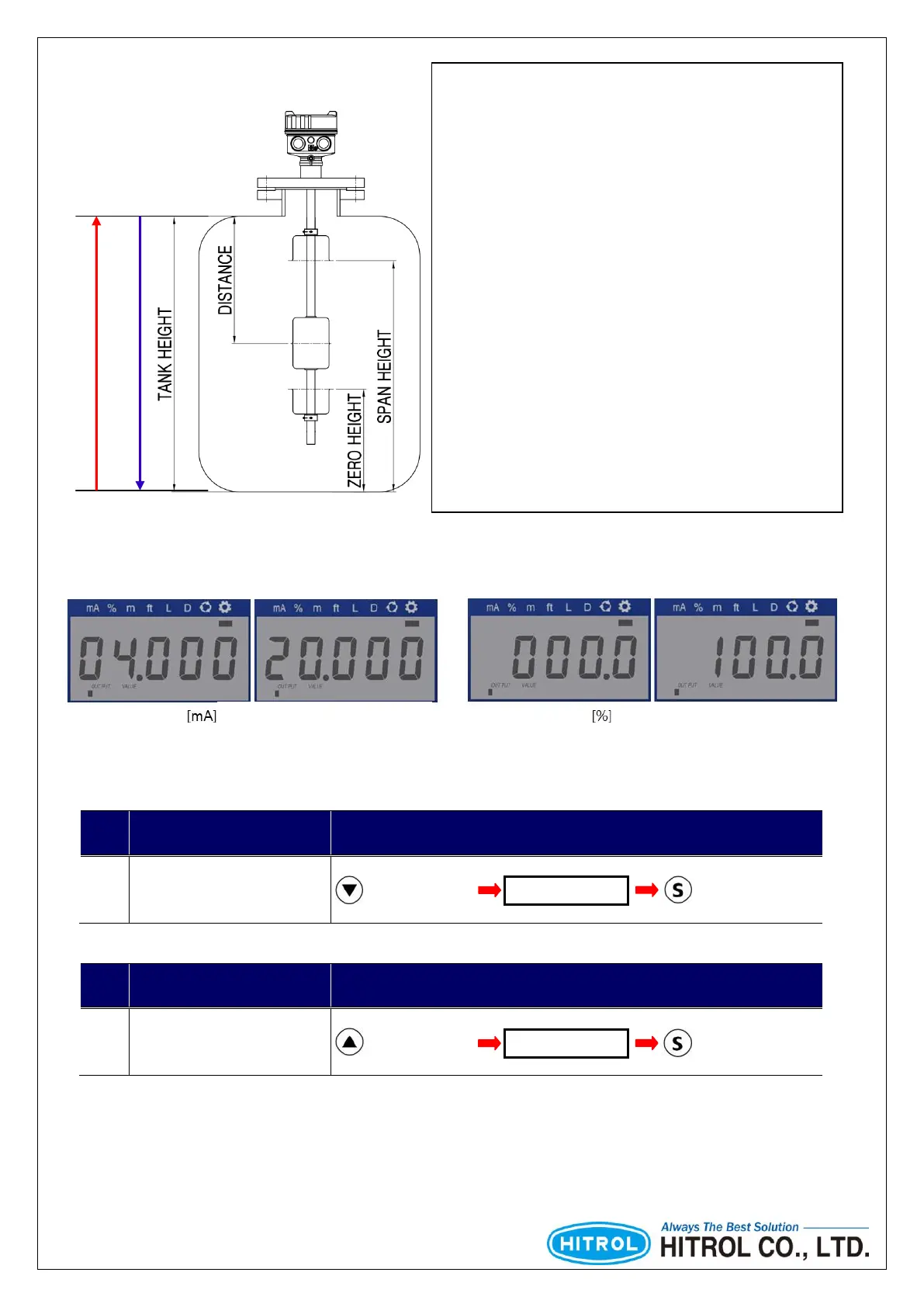

■ Definition of Height
■ Zero, Span Quick Setting
□ Unit Setting Screen
※ Factory shipping is set as “[%] unit setting”.
□ Zero Setting
Press for 1 sec. Input the value Press for 1 sec.
□ Span Setting
Press for 1 sec. Input the value Press for 1 sec.
□ Others
Zero / Span can be set regardless of Display Mode status.
It can set, save, or cancel the values. (Refer to
Table 3. Key Button Guidance
)
The level of medium state shall be maintained when setting zero / span.
Criterion of Level: The direction in which the medium
is raised based on the bottom of the tank.
Zero Height: The height from bottom of tank to center
of float at zero position.
Span Height: The height from bottom of tank to
center of float at span position.
Tank Height: The height from bottom of tank to
highest level of medium in the tank.
Distance: The length from top of tank to center of float.
Criterion of Distance: The direction in which the
medium is lowered based on the top of the tank.
