Hiwin E1 Series Operation Procedure

Operation procedure for E1 series servo drive with absolute DM
3. Setting procedure
Step 1. Version confirmation
Open Thunder with PC. After ensuring the version (01.003.14), connect to the servo drive.
Note: Refer to “E1 Series Servo Drive Thunder Software Operation Manual” for the information of
Thunder installation.

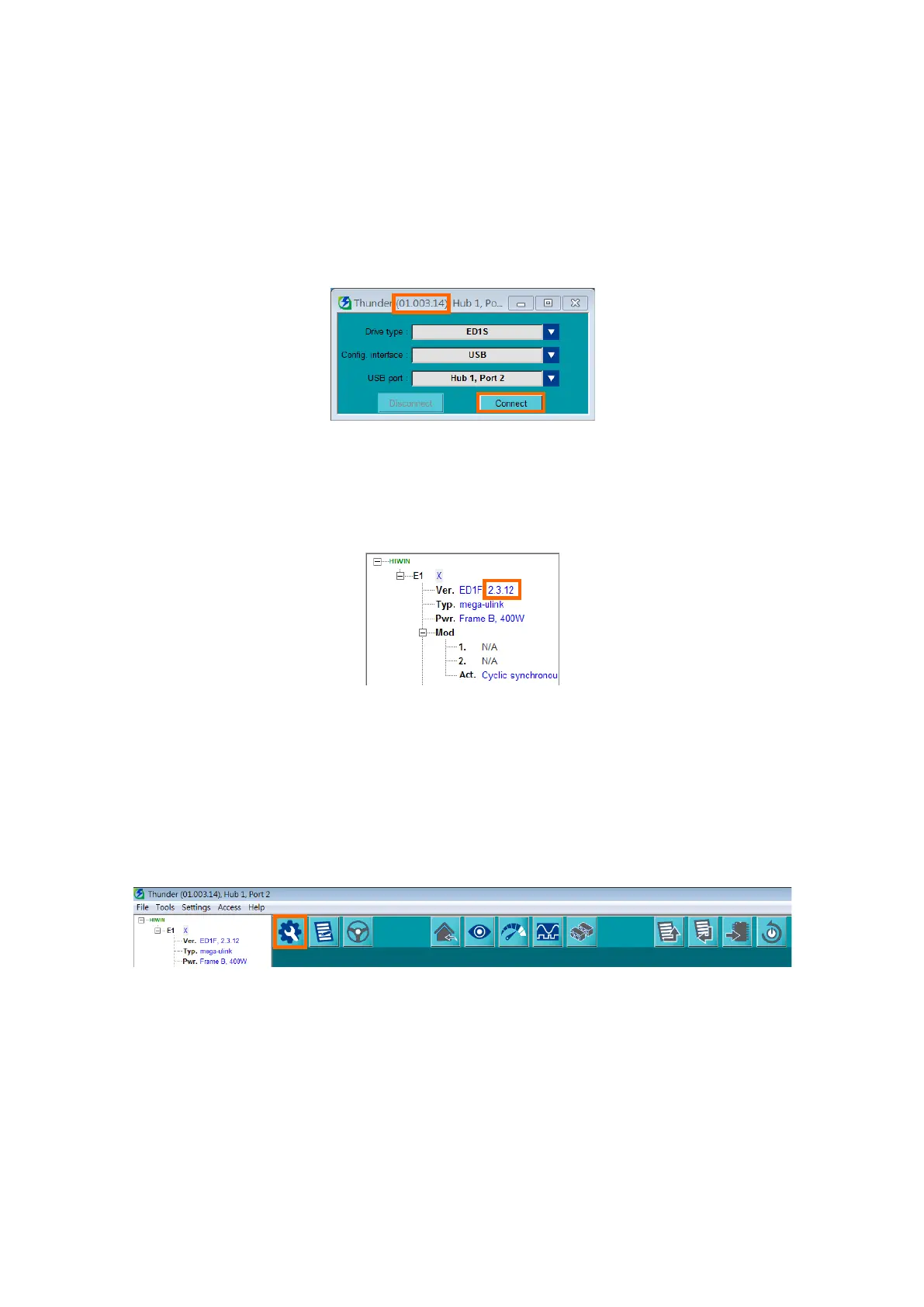

Figure 3.1
After it is successfully connected, ensure firmware version (2.3.12) in the left-side column
of Thunder main window.
Figure 3.2
Step 2. Motor setup
Open Configuration Wizard in the toolbar of Thunder main window to select motor model
and encoder type.
Figure 3.3
