Hiwin LA Series - 1.3 Specification of Positioning Feedback (Optical Sensor); 1.4 Bare Wire for Potentiometer

MA99UE17-1804
43
Chapter 5 LAK\LAP Wiring and Installation:
1. LAP1/LAP2 Wiring

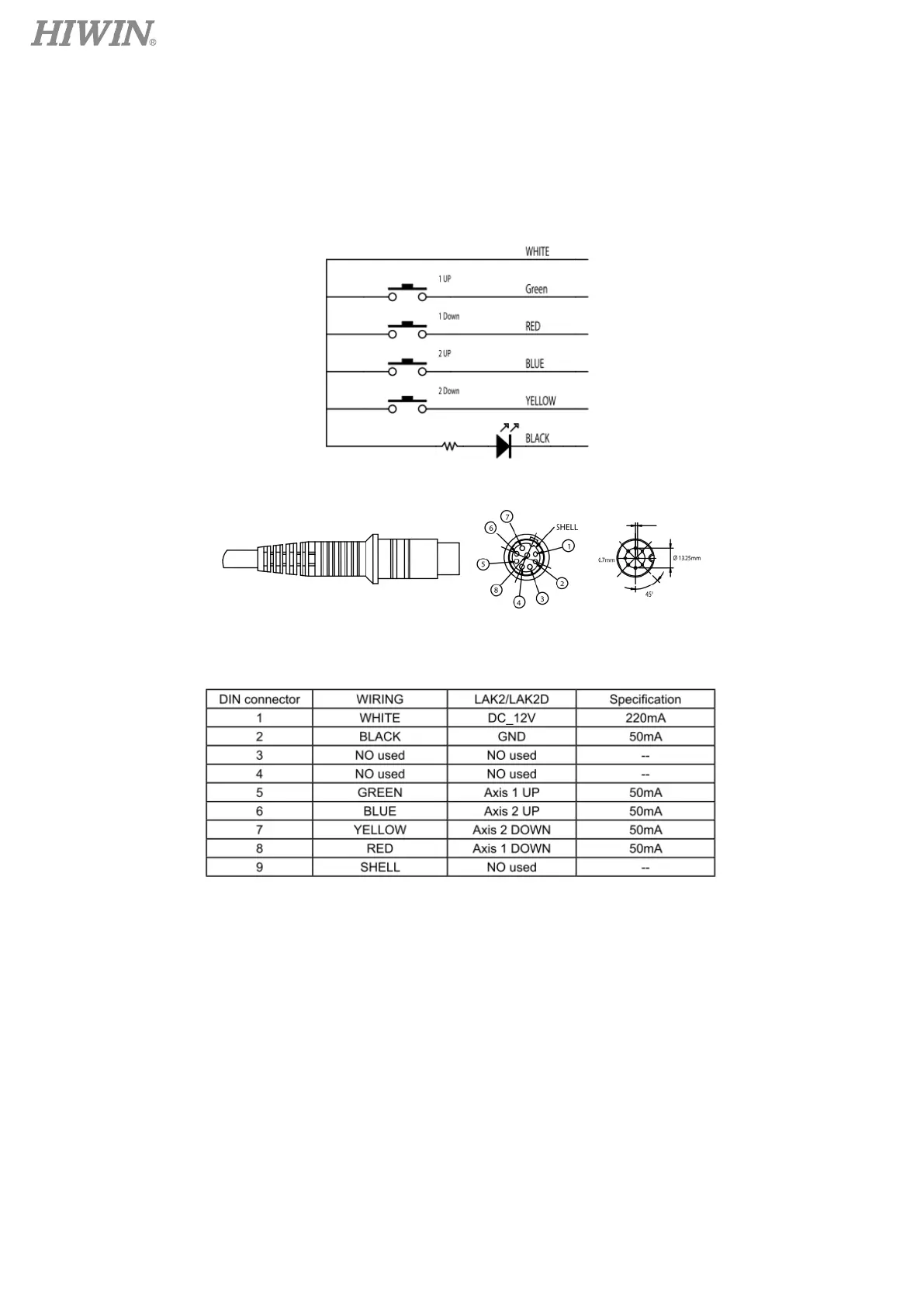

1.1 LAP1/LAP2 for LAK2/LAK2D Circuit Diagram
Wiring Specification
