HIMC Installation Guide Specifications
HIWIN MIKROSYSTEM CORP. 2-5
2.3 Installation
REQUIRED
Based on UL61010-2-201, HIMC should be mounted on the industrial control panel and the maximum
ambient temperature is 50°C.
Step 1. Align the mounting holes of the bracket in the system and those on the DIN rail bracket.
Step 2. Use the provided mounting screws to secure the bracket in place.
Step 3. Mount the product on the industrial control panel with the recommended orientation, as Figure
2.3.2 shows.

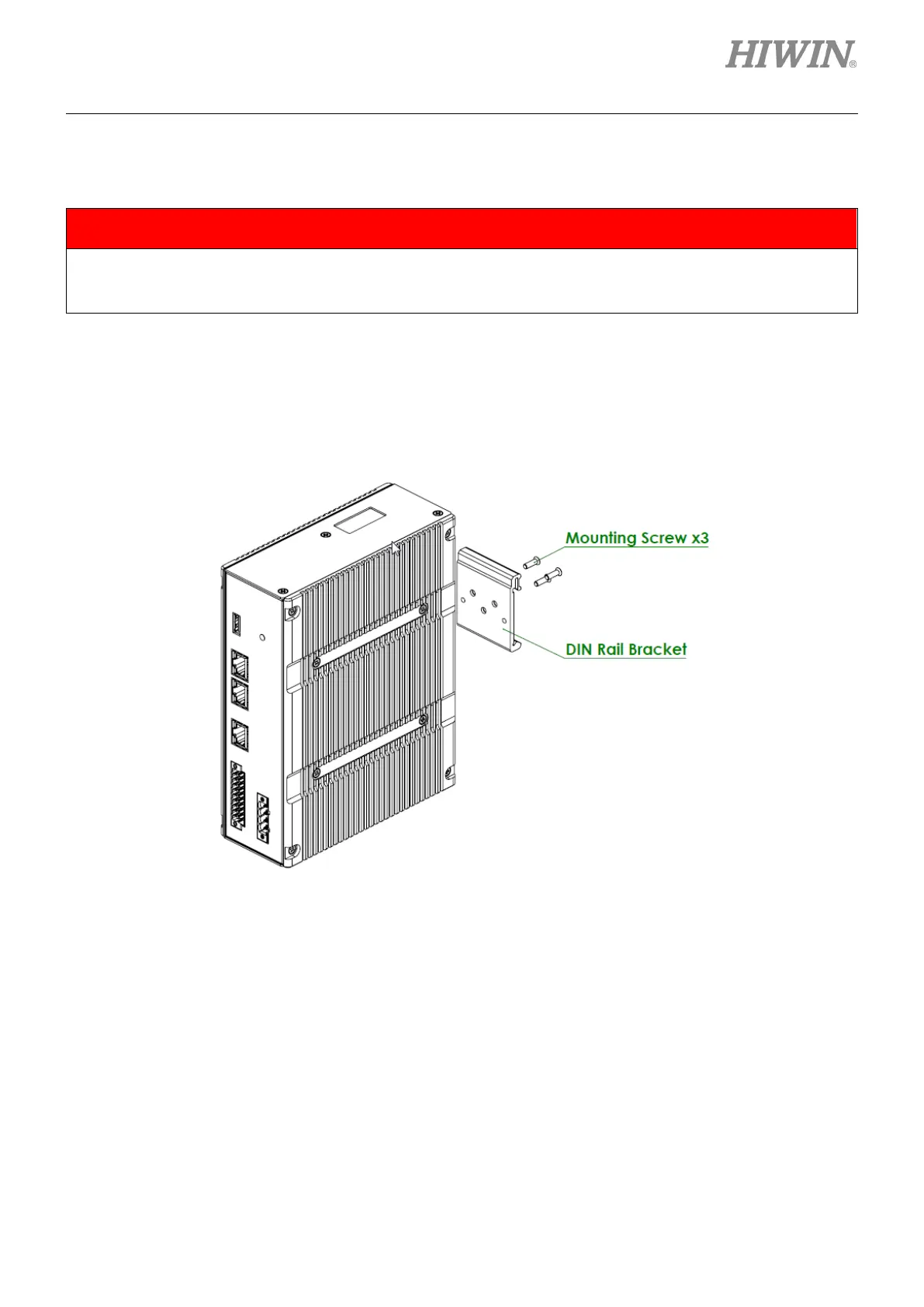

Figure 2.3.1 DIN rail bracket
