Hiwin MC-16-01 Series - LED Indicator Status

HIMC Installation Guide Specifications
2-6 HIWIN MIKROSYSTEM CORP.
MH07UE01-1911

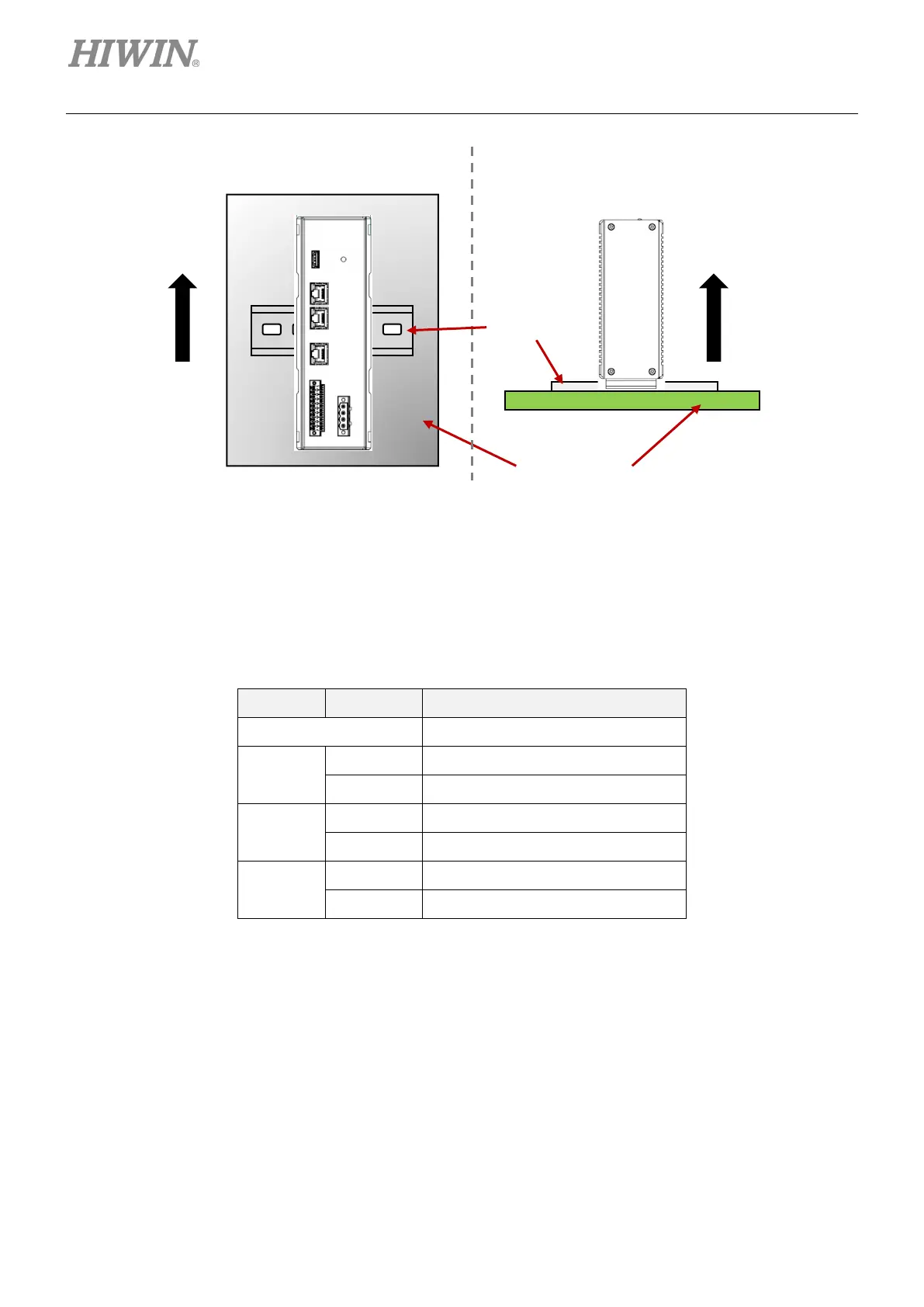

Figure 2.3.2 Recommended mounting orientation
2.4 LED indicator
Table 2.4.1 LED indicator
Color Status Description
No light Power off
White
Solid Boot
Blinking Initializing
Green
Solid Operation
Blinking Pre-operation
Red
Solid Hardware binding failed
Blinking Error
Control Panel
Upright
Direction
Upright
Direction
DIN rail
