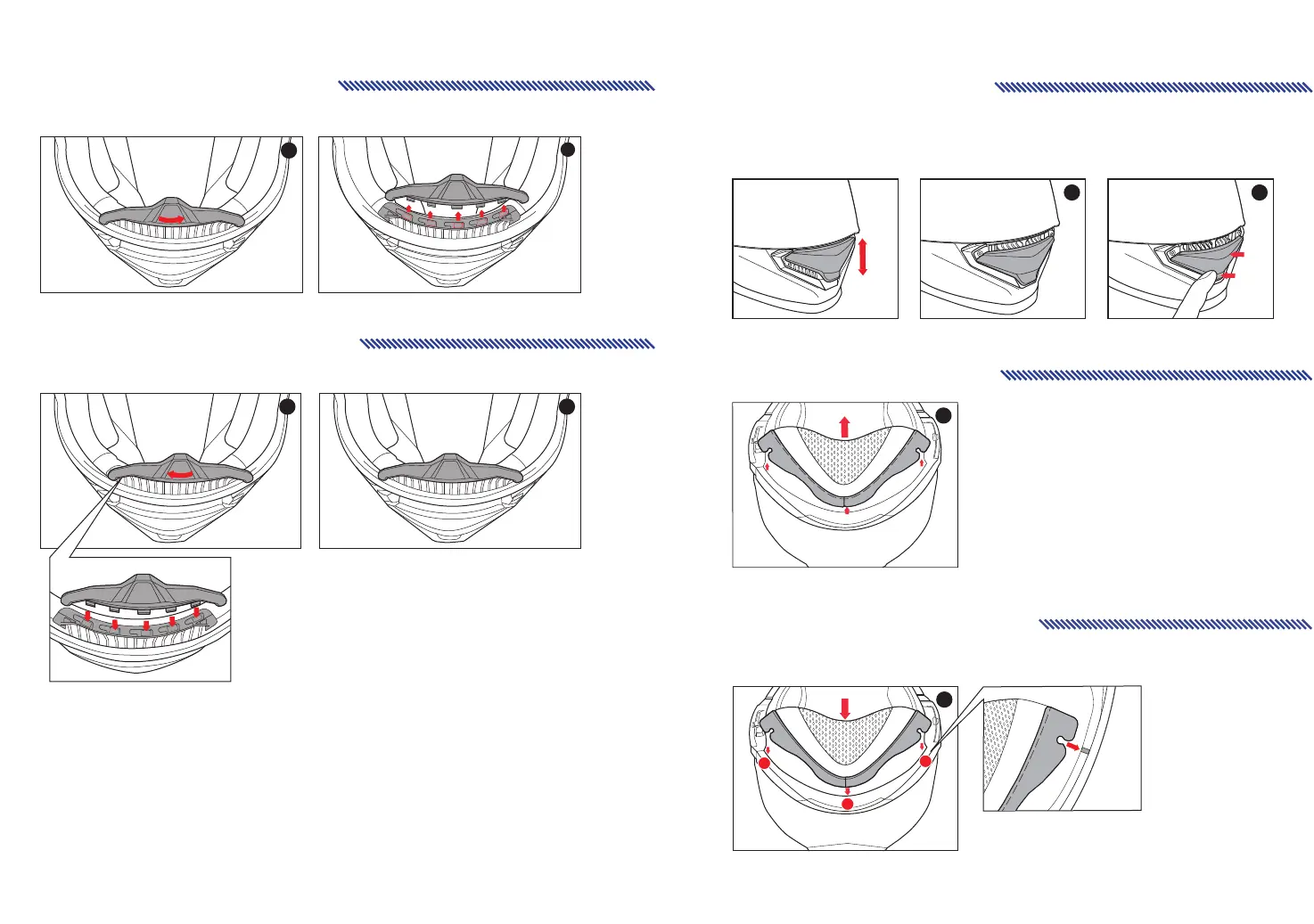

1. To remove the breath deector, pull in the direction of the arrow.
Breath Deector Removal
1a
1b
1. To attach the Breath Deector, insert into the slot and push it in the direction of the arrow.
Breath Deector Installation
1a
1b
Lower Vent Operation
*Lower Vents open in two ways, and the amount of intake and exhaust can be adjusted.
1. Press the bottom of the lower vent door once to open the rst stage.
2. The 1st position will allow minimum air ow, while the 2nd position will allow maximum air ow.
OPEN
OPEN
CLOSE
CLOSE
1 2
OPEN
OPEN
CLOSE
CLOSE
Chin Curtain Removal
1. Pull the chin curtain away from the helmet as arrow
indicates.
1
1. Align the center of the chin curtain with the center of the helmet. Push into place as arrows indicate.
(Please assemble in order from 1 to 3.)
※Slide tab 'A' from the cheek pad into the holder 'B'.
Chin Curtain Installation
1
1
2
3
A
A
B
B
