HJM RFC500 - Wall Mounting Procedure

HJM_RFC_ENG_Rev.2_25-09-2018
Made in Spain
5/20

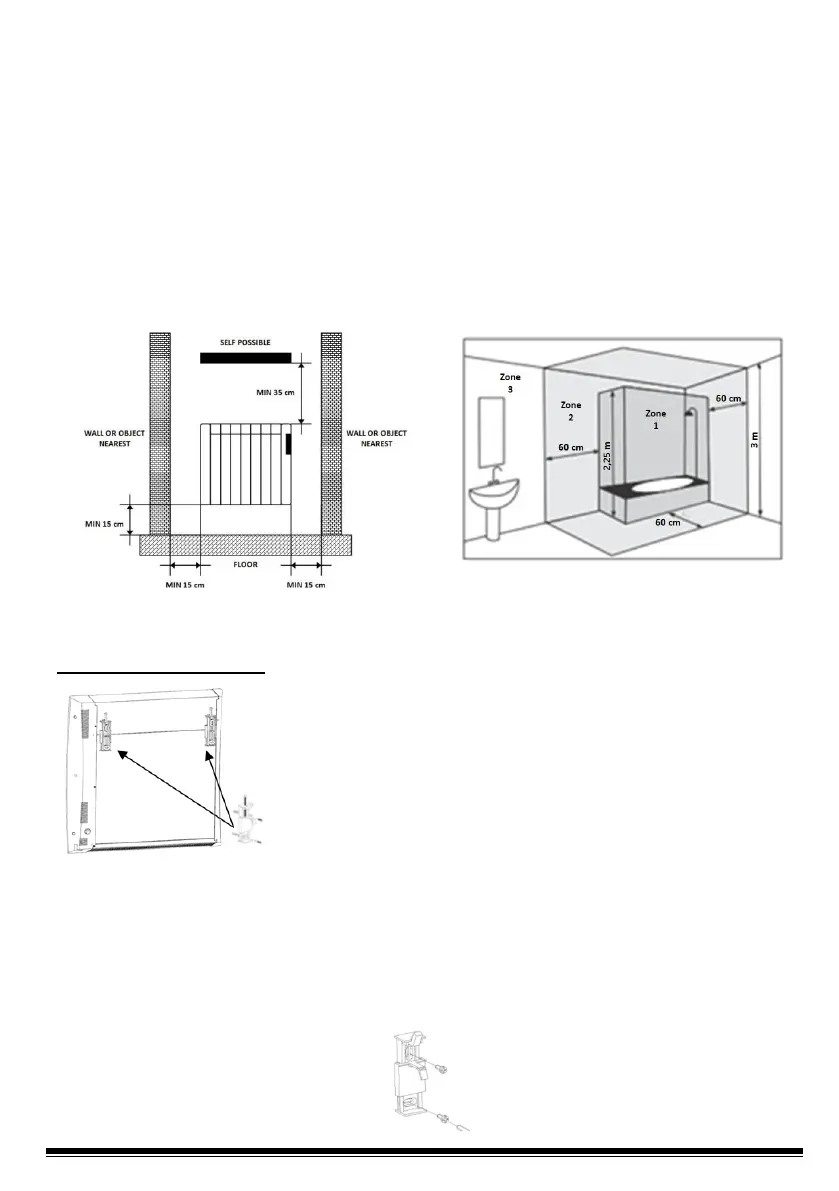

 Allow for a minimum distance of 1 m, from the front of the unit to any obstacles
(furniture, walls, curtains, for example) that could hinder its operation.
 Also keep a minimum distance of 15 cm between the appliance and the side
walls and any other obstacles (walls, for example) that may affect its function.
Also keep a minimum distance of 35 cm on top the appliance free of obstacles
and a minimum distance of 15 cm from the floor.
 WARNING: If this appliance is installed in a bathroom, it must be installed only
within Zones 2 or Outside Zones (Zone3), according BS 7671 Requirements
for Electrical Installations, Section 701. The installation of this appliance within
Zones 0 or 1 of a bathroom is totally prohibited. The figure 2 bellow is only for
information purposes, we suggest you contact a professional electrician.
- Minimum Distances -
Fig.1
Zone 1: Appliances supplied to Safety Extra Low Voltage (SELV).
Zone 2: Electrical Appliances Class II – IP X4
Zone 3: Electrical Appliances protected by RCD 30mA
Fig.2
WALL-MOUNTING
Secure the appliance to the wall, you should use the template attached to the box.
Follow these instructions:
1. Place the template on the floor and against the wall where you will place the
radiator.
2. Mark on the wall the location of the four holes.
3. Drill four holes for inserting the 8 mm plugs.
4. Fix the supports (as shown in the Figure) using the 4 screws and 8 mm plugs .
The appliance is equipped with the following:
- 2 radiator's suspension supports.
