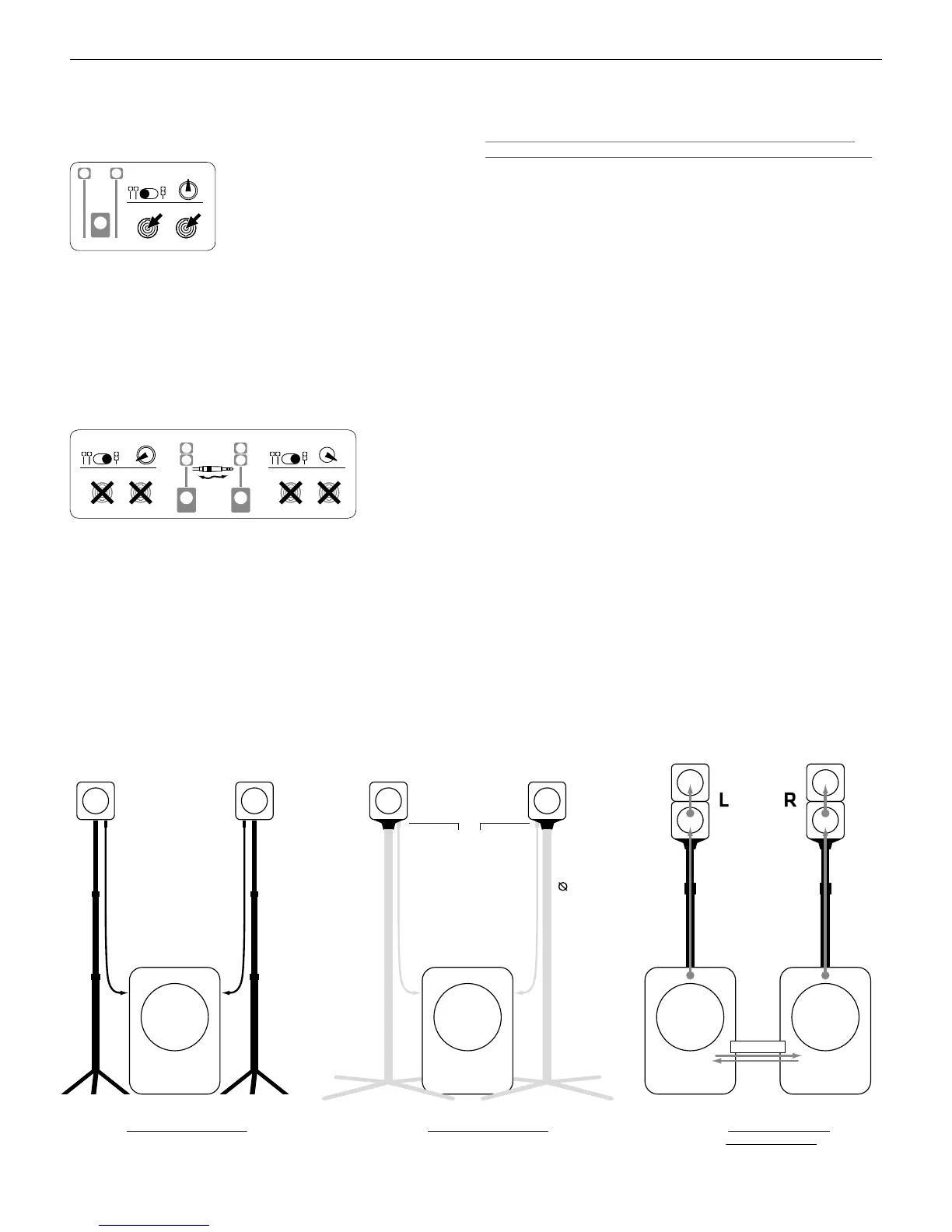

4.5 Stereo System B
With standard speaker stands and the POLE MOUNT ADAPTER
(see the picture below)
Insert the POLE MOUNT ADAPTERs onto the 35 mm-
diameter speaker stands and use the Easy-Click
connector to attach each satellite to a POLE MOUNT
ADAPTER. Be advised that the POLE MOUNT ADAPTER
does not route the signal to the satellite; you will
have to use two Speakon®-compatible speaker cables
to connect the subwoofer’s Speaker Outs to the two
satellites. Be sure to set the Setup selector to ‘Stereo
Satellite and the Balance knob to the center or 12 o’clock position.
• Required accessories: 2 POLE MOUNT ADAPTERs
4.6 Twin Stereo System
With 2 S-CONNECT POLE LNs + 1 LUCAS NANO LINK CABLE
(see the picture below)
It takes two LUCAS
NANOs to set up a
twin stereo system.
First set up each as
a mono system as
described in section
4.2, and then link the
two to create a twin stereo system using the two subwoofers’ Link In/Out jacks (21). You
will need the LUCAS NANO LINK CABLE or a shielded stereo cord equipped with 1/4" (6.3
mm) jack plugs to do this.
Heads up: One system’s Balance knob has to be turned to the left and other’s to the
right.
Pairing up two systems to configure a twin stereo system gives you twice the number of
mixer channels. The Master knob on each LUCAS NANO controls the overall volume of that
unit’s master mix; that is, the channels that have been blended to a composite signal. Be
sure to set the Setup switches on both systems to ‘Satellite Array’.
• Required accessories: S-CONNECT POLE LN / LUCAS NANO LINK
CABLE
Warning: Please note that a twin stereo setup featuring two LUCAS
NANO 608i systems will require two iPads for complete remote control.
4.7 Optional Accessories for LUCAS NANO 608i
1. S-CONNECT POLE LN
Content: 1 signal-routing speaker pole including a pole mount adapter (height adjustable
from 83 to 137 cm), 1 bag
2. LUCAS NANO 600 MONO STAND ADD-ON
Content: 1 two-part speaker extension pole, height: 55 or 110 cm, 1 pole mount adapter,
1 speaker cable, 1 bag
3. LUCAS NANO 600 STEREO STAND ADD-ON
Content: 2 speaker stands with tripod base (height adjustable from 76 to 170 cm),
2 speaker cables, 1 bag
4. LUCAS NANO POLE MOUNT ADAPTER
Content: 2 adapters for 35 mm-diameter speaker poles
5. LUCAS NANO LINK CABLE
Content: 1 stereo cable with 1/4" (6.3 mm) jacks for connecting two LUCAS NANOs
6. LUCAS NANO 600 ROLLER BAG
Content: 1 padded trolley for LUCAS NANO 600 series systems
7. LUCAS NANO 600 DESK / WALL MOUNT
Content: 2 wall mounts/desktop stands, 2 cables with angled 1/4" (6.3 mm) jacks, 2 1/4"
(6.3 mm) stereo jack adapters
8. LUCAS NANO DRUM RACK ADAPTERS
Content: 2 rods with 3/8" threads, 25 cm long and 18 mm in diameter, that attach to
rack clamps
