When you switch o LUCAS NANO 608i, it stores the settings of all
controls that have been adjusted using the software and hardware. Then
when you switch LUCAS NANO 608i back on again with ‘Remote Control’
mode switched on, the system will load the most recent settings and
automatically searches for the most recently connected iPad. If LUCAS
NANO 608i fi nds this iPad and the LUCAS NANO REMOTE app is enabled on
it, LUCAS NANO 608i will automatically reconnect to the device. Then you
can continue exactly where you left o at the last session.
If LUCAS NANO 608i fails to fi nd the most recently connected iPad within
one minute, the Bluetooth LED (
●
2
) will start fl ashing fast to let you know
that it hasn’t found the device. LUCAS NANO 608i will retain the most
recent hardware and software settings for as long as the Remote Control
switch is set to ‘On’.
More About the Bluetooth Connection
LUCAS NANO 608i has to be paired with your iPad before you can use
the LUCAS NANO REMOTE app to control the system. You only have to
pair the two devices once; after that, the connection will be established
automatically.
By sliding the Remote Control switch from ‘On’ to ‘O ’ and back to ‘On’
again, the Bluetooth module is cleared and ready to connect with another
device, for example, when you wish to connect to a di erent iPad.
Much the same procedure resets CH 7/8 for connecting other Bluetooth-
enabled audio players: to connect a di erent audio streaming device, simply
set the CH 7/8 Input Selector switch (
●
12
) from “Bluetooth” to ‘Line’ and
then back to ‘Bluetooth’.
Caution! This also resets the connection to the iPad in case the LUCAS
NANO 608i is under remote control.
LUCAS NANO 608i can be only connected to one device via Bluetooth
so bear in mind that if you're using the remote-control app, you can only
stream audio from the iPad that is running this app.
Good to know: The Gain/Volume knobs that adjust the input gain on
LUCAS NANO 608i are analog controls; they can’t be remote controlled.
The app does not actually process audio signals; it is merely a remote
control for the DSP functions of LUCAS NANO 608i.
●
26
Phantom Power CH 1/2 Mic
This button serves to supply phantom power to condenser microphones
connected to Inputs 1 and 2. Please check if your microphones require
phantom power before switching it on.
●
27
Auto Sleep (switch in the transport bay)
LUCAS NANO 608i features an automatic power-saving mode that is
activated and deactivated using the Auto Sleep switch in the satellite
transport bay at the back of the enclosure. The system ships with the
switch set to the ‘On’ position so that Auto Sleep is activated by default.
If LUCAS NANO 608i does not get an input signal for around four hours,
the power amp will switch over to standby mode. To power the system
up again, engage the Power On/O switch or disconnect and reconnect
mains power. Set Auto Sleep to the ‘O ’ position if you wish to disable this
standby function.
●
28
Mains Socket (not pictured)
Use the factory-included mains cord to connect this socket to a wall outlet.
Caution! Make sure the local mains voltage matches the voltage specifi ed
on LUCAS NANO 608i. Connecting it to the wrong mains voltage may
destroy its electronic components.

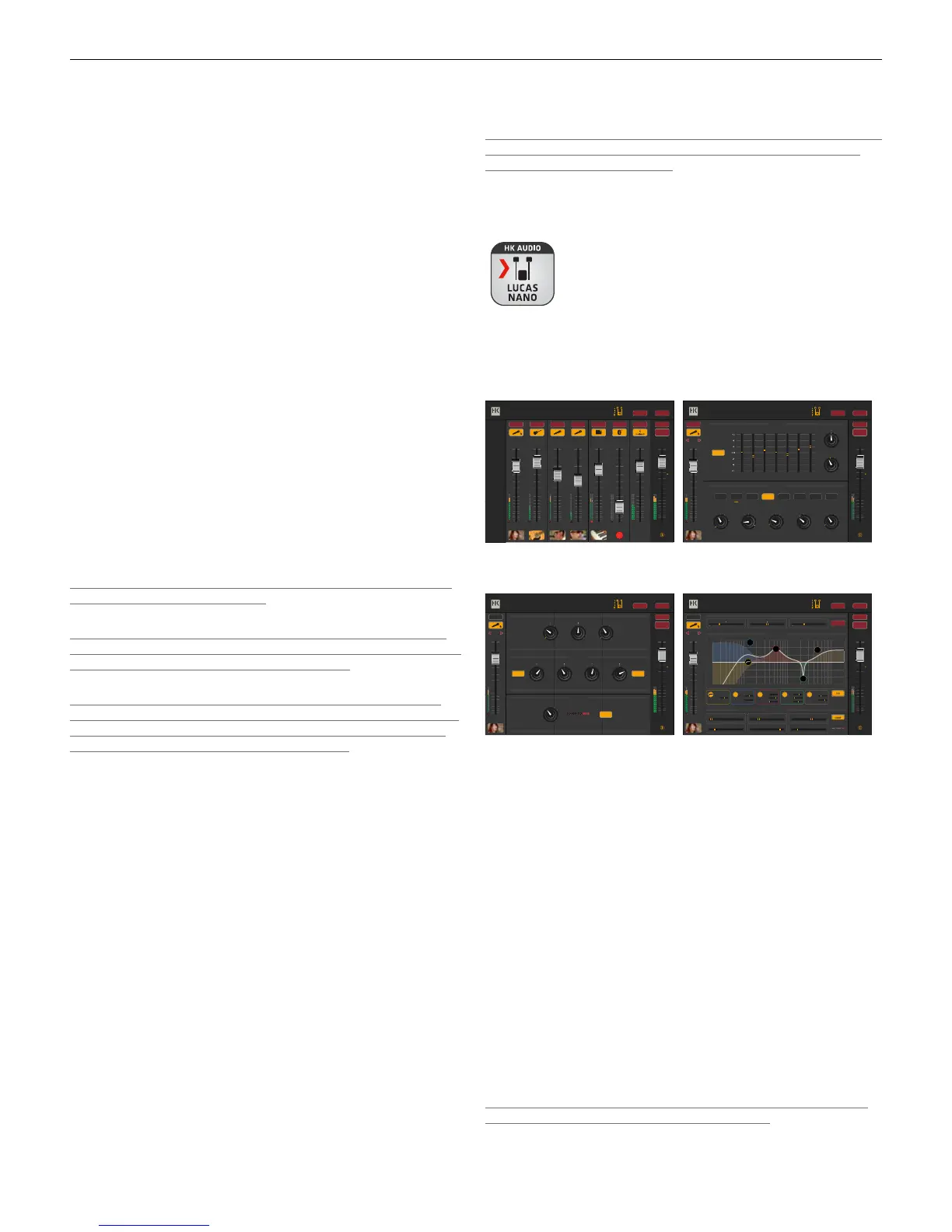

3 LUCAS NANO REMOTE – app for iPad
The LUCAS NANO REMOTE app extends LUCAS NANO 608i’s
onboard mixer with professional-grade, remotely controllable
features such as a low-cut fi lter, 4-band EQ, compressor and
pan controls for each channel. There’s also a graphic master
EQ, and you can even store entire mixer scenes. This free
app LUCAS NANO REMOTE may be downloaded from the Apple App Store,
which is where you’ll also fi nd further info and documentation.
LUCAS NANO
REMOTE
SCENES SETUP
03* The Chickenfields - Pub Line Up
Master
DIM
EDIT
MUTE
1
Mary Pete Guitar Pete Mic Paul Keys Playlist #3Paul Mic
2 3 4 5/6 7/8 Rev
4
medium B
EDITEDITEDIT EDIT EDIT EDIT EDIT
LUCAS NANO
REMOTE
MIXER SETUP
03* The Chickenfields - Pub Line Up
Master
DIM
EDIT
MUTE
1
Mary
EDIT
Rev/Aux
Master
125 Hz 250 500 1k 2k 4k 8k
5/64321
010
010
LR
010010010010
Sub
Mary Pete Guitar Paul Keys
Balance
Pete Mic Paul Mic
0 –2.6 +0.9 0 –1.4 +1.5 +3.9
4
medium B
3
medium A
2
small B
5
large A
6
large B
7
slap
8
Aux Send
1
small A
EQ
Mixer page Master page
LUCAS NANO
REMOTE
MIXER SETUP
03* The Chickenfields - Pub Line Up
Master
DIM
EDIT
MUTE
Mary
+0.1 dB
1
Equalizer
Compressor
Contour
AB
Intensity Gain Reduction
010
Panorama
LR
Rev/Aux
010
EQLOW CUT
COMP
20 15 12 9 7 5 4 3 2 1
Low
-12 +12
LowMid
-12 +12
HiMid
-12 +12
High
-12 +12
LUCAS NANO
REMOTE
MIXER SETUP
03* The Chickenfields - Pub Line Up
Master
DIM
EDIT
MUTE
Mary
+0.1 dB
1
Equalizer
Compressor
+12
+8
+4
–4
–8
–12
20 Hz 50 100 200 500 1k 2k 5k 10k 20k
0 dB
201512 7945231
PRESETS
Attack
(ms)
27
Gain Reduction
Release
(ms)
84
Threshold
(dB)
-16.1
Gain
(dB)
+1.9
Ratio 3.9:1
Knee 8.6
COMP
Rev/Aux 4.0
010
Contour A20
AB
Panorama C
LR
hard soft
Hz
130
LC
dB
+10.7
Hz
144
LF
1
Q
1.0
dB
+7.3
Hz
564
LMF
2 3
dB
+6.6
Hz
5.5k
HF
4
EQ
Q
8.8
dB
–9.1
Hz
2.3k
HMF
1
2
4
3
Channel page (in Easy mode) Channel page (in Expert mode)
The App’s Features and Benefi ts
• Tools to remotely control nearly all LUCAS NANO 608i functions
via Bluetooth
• Intuitive, professional handling
• Each channel strip features a:
- Fader and Mute switch
- Level indicators
- Panorama
- Semi or fully programmable 4-band EQ
- Fixed or variable low-cut fi lter
- Compressor/limiter
• A 7-band graphic EQ in the Master section
• A pre/post fader routable Aux Send
• Tools to manage presets for individual channels and entire scenes
with all settings
• Channel page views in Easy and Expert modes
•
Display showing the strength of the Bluetooth connection
Caution! From time to time, be sure to check to make sure you’re using
the latest version of the LUCAS NANO REMOTE app.
