APL-5 Series Limit Switch Box
Installation Operation & Maintenance Manual
Doc No. : HUMG-APL5-16 Rev0 Page 4 / 13
3. Standard specification
Model APL-5** *
Enclosure Rate Please refer to “2. Ordering Information, ① Enclosure type”
Enclosure Material High grade aluminium alloy or stainless steel
Ambient Temperature -20°C ≤ Ta ≤ +60 °C
Cable Entries Standard : Two NPT 3/4”, or M25 for Ex type
(Option for Non-Ex : NPT1/2”, PT3/4”, PT1./2”, PF3/4”, PF1/2”, M20)
Travel Angle 90 degree +/- 10%
Position Indicator Open : Yellow, Close : Red
Language : English (Option : French, German)
Mechanical Switch SZM-V16-5FA-61 (Wonwoo Starion)
16A 1/2HP 125/250Vac, 0.6A 125Vdc, 0.3A 250Vdc, 5A 125Vac
Proximity sensor NJ2-V3-N (PEPPERL+FUCHS) : 5~25Vdc , 15mA max.
PS17-5DNU(Autonics) : 12~24Vdc, 0.2mA max.
MS-B 301 : 250Vdc 3.0A max.
Potentiometer 1kΩ (Option : 0~5kΩ , 0~10kΩ)
Current Output Signal Unit 4~20mA, 20~4mA
Terminal Strip 8 point (option : 9~14P)
External Coating Thermally hardened polyester powder coating
4. Preparing for Installation

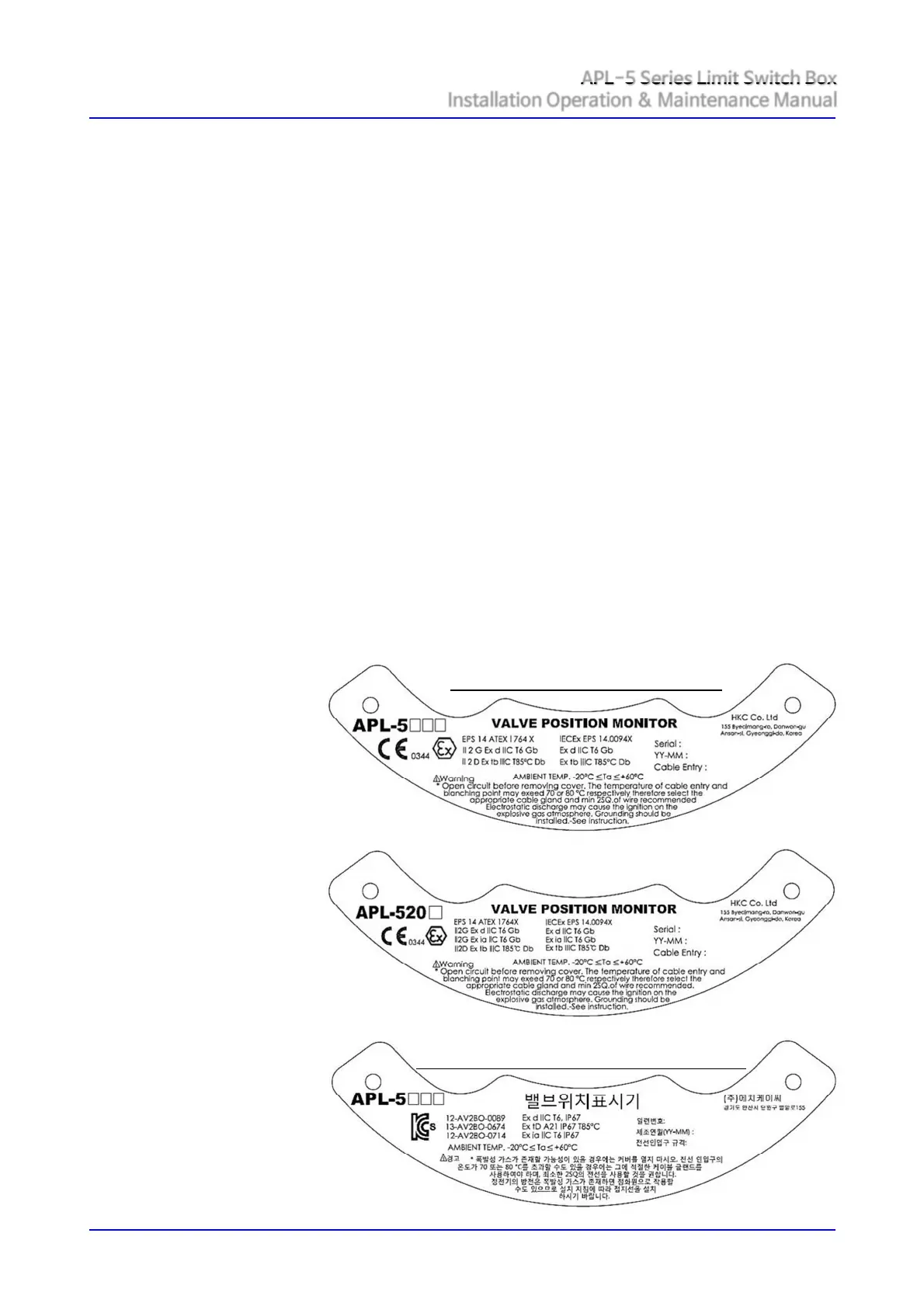

4.1. Marking
HKC logo / Trade mark
Model
Switches type
Cert No.
Applicable temp.
Serial No.
Manufactured year
Cable entry size
Warning letter
Maker address
