HKC APL-5 Series User Manual

APL-5 Series Limit Switch Box
Installation Operation & Maintenance Manual
Doc No. : HUMG-APL5-16 Rev0 Page 6 / 13

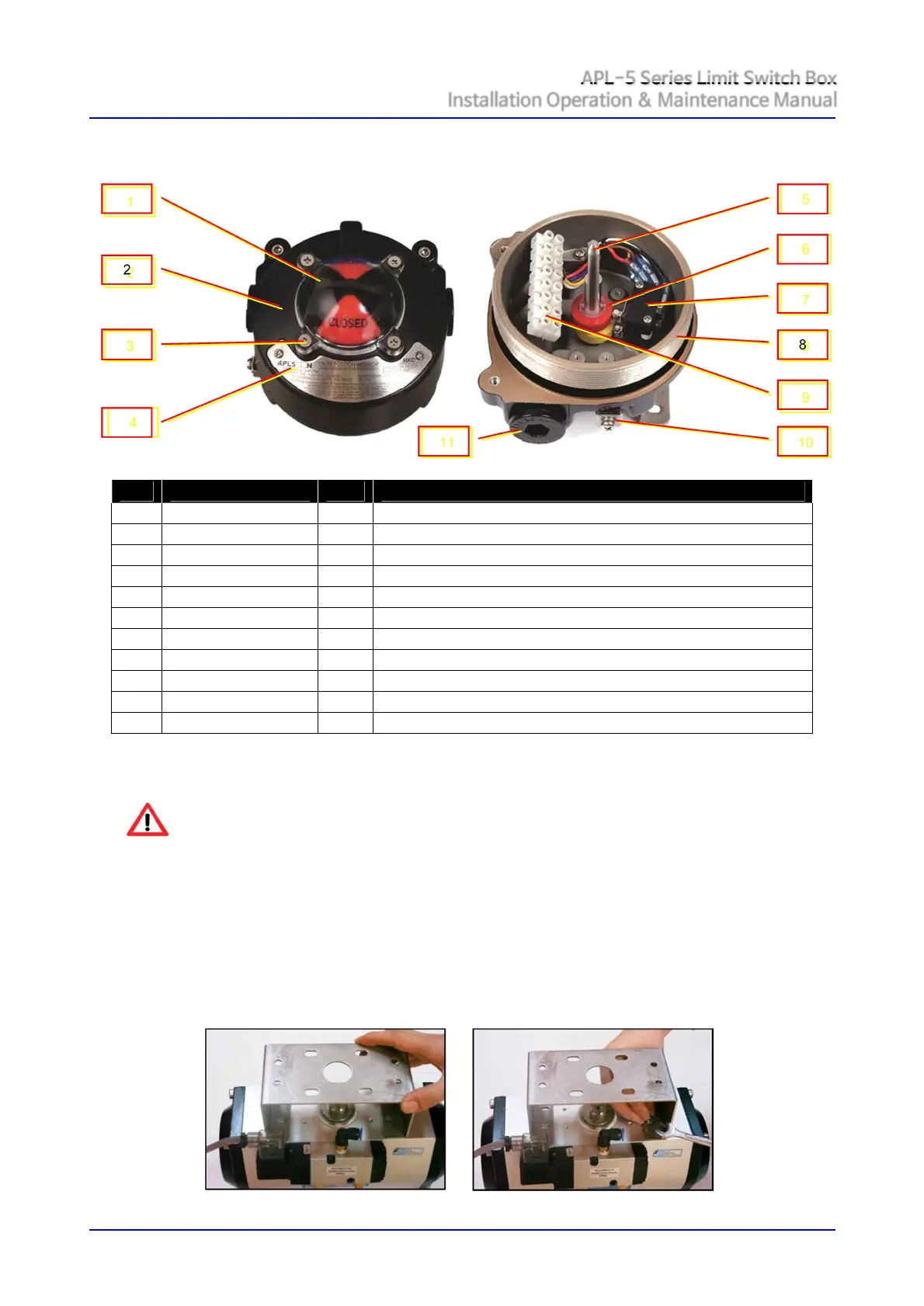

5. Standard Features
No.
Part Name
Q’ty
Description
1
Window / Indicator
1
PC / ABS
2
Cover
1
Aluminium die casting (ADC12), Stainless steel (CF8M)
3
Captive Cover Bolt
4
Stainless steel
4
Name Plate
1
Stainless steel (A240 T304)
5
Shaft
1
Stainless steel (G4303 SUS303)
6
Cam
2
PC
7
Switch
2
Refer to the clause “2. Ordering Information ② Switch type”
8
Body
1
Aluminium die-casting(ADC12), Stainless steel(CF8M)
9
Terminal Strip
1
8P (9~14P available)
10
Earth Lug
2
Stainless steel
11
Blanking Element
2
Aluminium plug (ADC12)
6. Installation
6.1. Mounting bracket
Caution ; Where limit switch box or one of parts are to be moved, installed, disassembled,
reassembled by a hand, care must not be taken to cause injury by the harmful sharp edges
of corners or rough surfaces or residual electricity.
6.1.1. HKC shall supply a NAMUR VDI/VDE standards’ bracket and a fixing stuff for mounting on
actuator. Brackets are able to applied any type of valves ; manual valve, linear valve,
pneumatic rotary valve.
① Insure valve actuator alignment (fully open or closed).
② Place the mounting bracket on a horizontal plane of actuator
③ Tighten the bolts enclosed in a box using a proper tool.
4
3
2
1
5
6
7
8
9
10
11
