HKS VFD Drive A2 Series User Manual

A2 VFD (0.75-30kW)
11

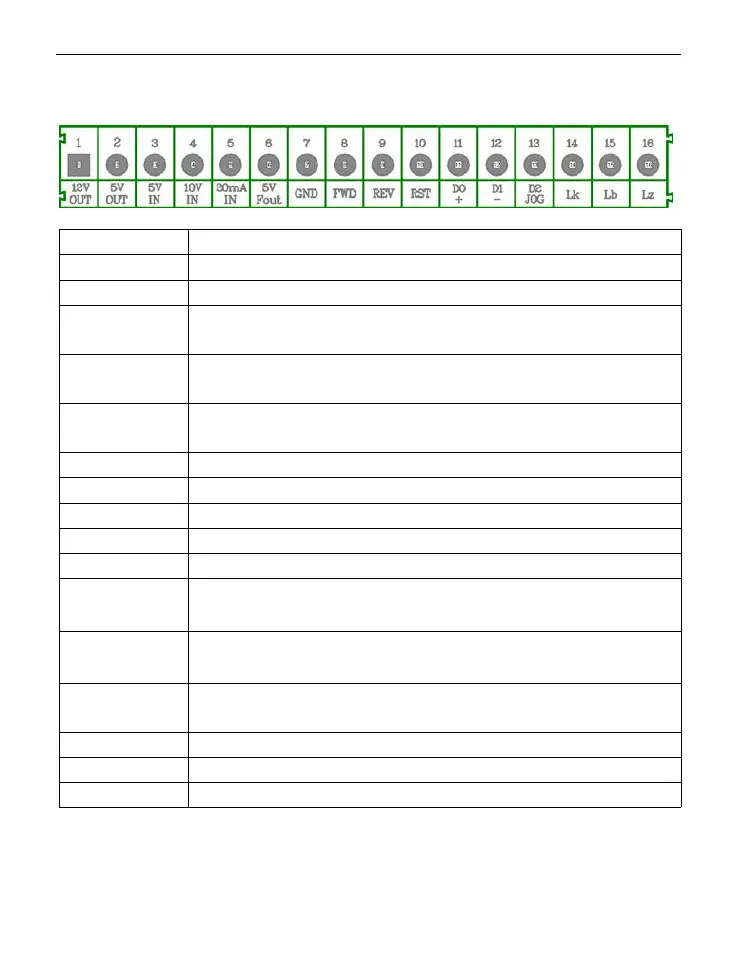

Chapter 6 Description of Control Ports
Port name
Port Description
12V OUT
12V output, with maximum currency 200mA.
5V OUT
5V output, with maximum currency 50mA.
5V IN
5V input, analog input, with maximum effective
voltage 5V, no more than 6V
10V IN
10V input, analog input, with maximum effective
voltage 10V, no more than 12V
20mA IN
20mA input, analog input, with maximum effective
currency 20mA, no more than 25mA
5V Fout
Frequency signal output, maximum output voltage 5V
GND
Power source ground 0V.
FWD
External clockwise rotation input
REV
External anticlockwise rotation input
RST
External reset signal
D0 +
Multi-segment speed D0 input，external “+” signal
means clockwise point move input
D1 -
Multi-segment speed D1 input， external “-” signal
means anticlockwise point move input
D2 JOG
Multi-segment speed D2 input, external enable signal
input
Lk
Relay ON
Lb
Relay OFF
Lz
Relay ON/OFF
