HKS VFD Drive A2 Series User Manual

A2 VFD (0.75-30kW)
5
Chapter 2 User Setup
2.1 Environment requirement

No corrosive gas, vapor, and oily dust. Without direct
sunshine.
 No floating dust or mental particle.

Air moisture 20%~90%.
 Vibration < 5.8m/s2(0.6g).

No electromagnetic interference.
 Temperature:-10℃~50℃, make sure proper ventilation if the
temperature is greater than 40℃.

Without any inflammable or explosive gas, liquid and solid.
 Please use an electric cabinet or remote operation in a non-
standard environment. Make sure proper ventilation.

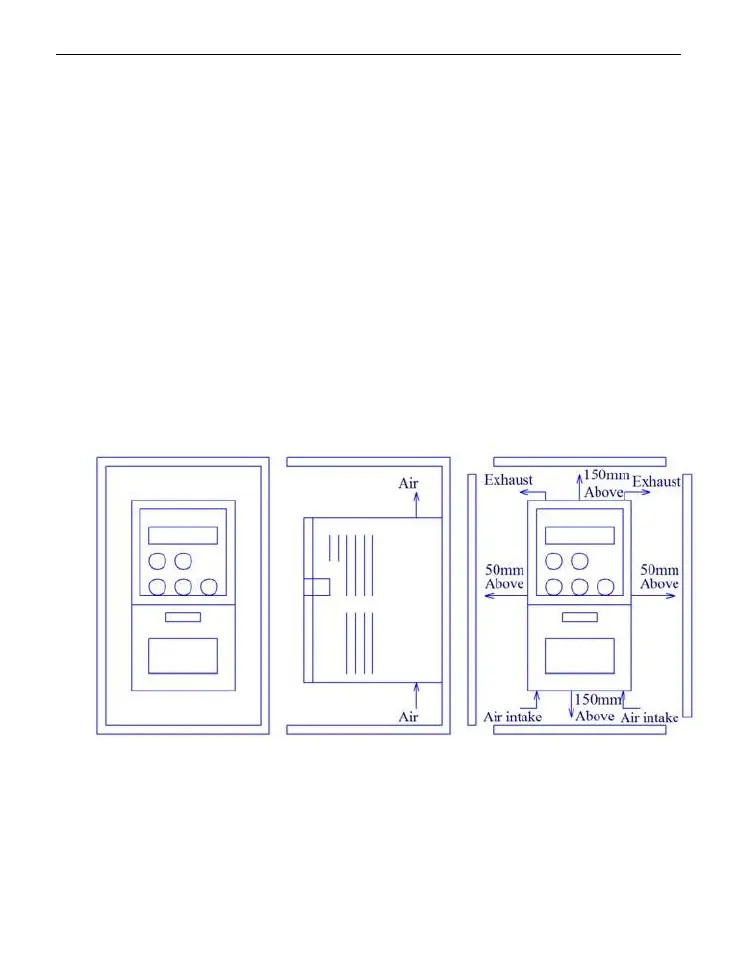

2.2 Install space
2.3 Basic wiring
There is two wiring parts: main-loop and control-loop.
Please do wiring correctly according to the following two
figures.
