– 6 –
INSTALLATION
UNPACKING
The mixer was inspected before leaving the factory. The carrier assumes full responsibility for the safe
delivery of the mixer upon acceptance of the mixer for shipping. The customer must check for possible
shipping damage immediately upon receipt before moving, installing, or modifying the mixer.
If damage is found, keep all original packaging materials for inspection purposes. The customer must
complete the following steps to report the damage.
1. Carrier’s local terminal must be notied within 5 business days of shipment receipt (note time,
date, and who was spoken to), and follow up and conrm with written or electronic communica-
tion.
2. Notify Hobart customer care at (800) 333-7447 within 5 business days of shipment receipt.
LOCATION
Prior to installation, test the electrical service to ensure that it matches the specications on the mixer
data plate.
Place the mixer in its operating location. There should be adequate space around the mixer for the user
to operate the controls and to install and remove bowls. The area above and to the right side of the mixer
should allow the top and side covers to be removed for routine maintenance and servicing.
Select a suitable at and level surface that can support the weight of the mixer and contents of a full bowl.
Once in position, the mixer must be leveled:
• Remove the two top cover screws and the top
cover.
• Place a level on the top rim of the large pulley
(Fig. 1). Slide shims under the base contact
surface of the mixer as required to level it front-
to-back and side-to-side.
• Do not replace the top cover until installation is
completed.
80-Qt and 140-Qt mixers may be bolted to the oor using studs. Floor anchoring hardware is included
with some models.
1. Place the mixer in its operating location.
2. Mark the oor using the four holes in the base as a template.
3. Move the mixer for access to the oor.
4. Using a 5/8" diameter bit, drill four holes in oor to a depth of 2".
5. Drive oor anchors ush with the surface of the concrete.
6. Expand the anchor with the setting tool provided. Anchor is properly expanded when shoulder of
setting tool is ush with the top of the anchor.
7. Place the mixer in its operating location over the drilled holes.
8. Install studs through the base and into the oor anchors.
9. Install at washers, lock washers, and nuts onto the studs and tighten.
10. Saw o all threads ush with the top of the nut and remove any sharp edges.

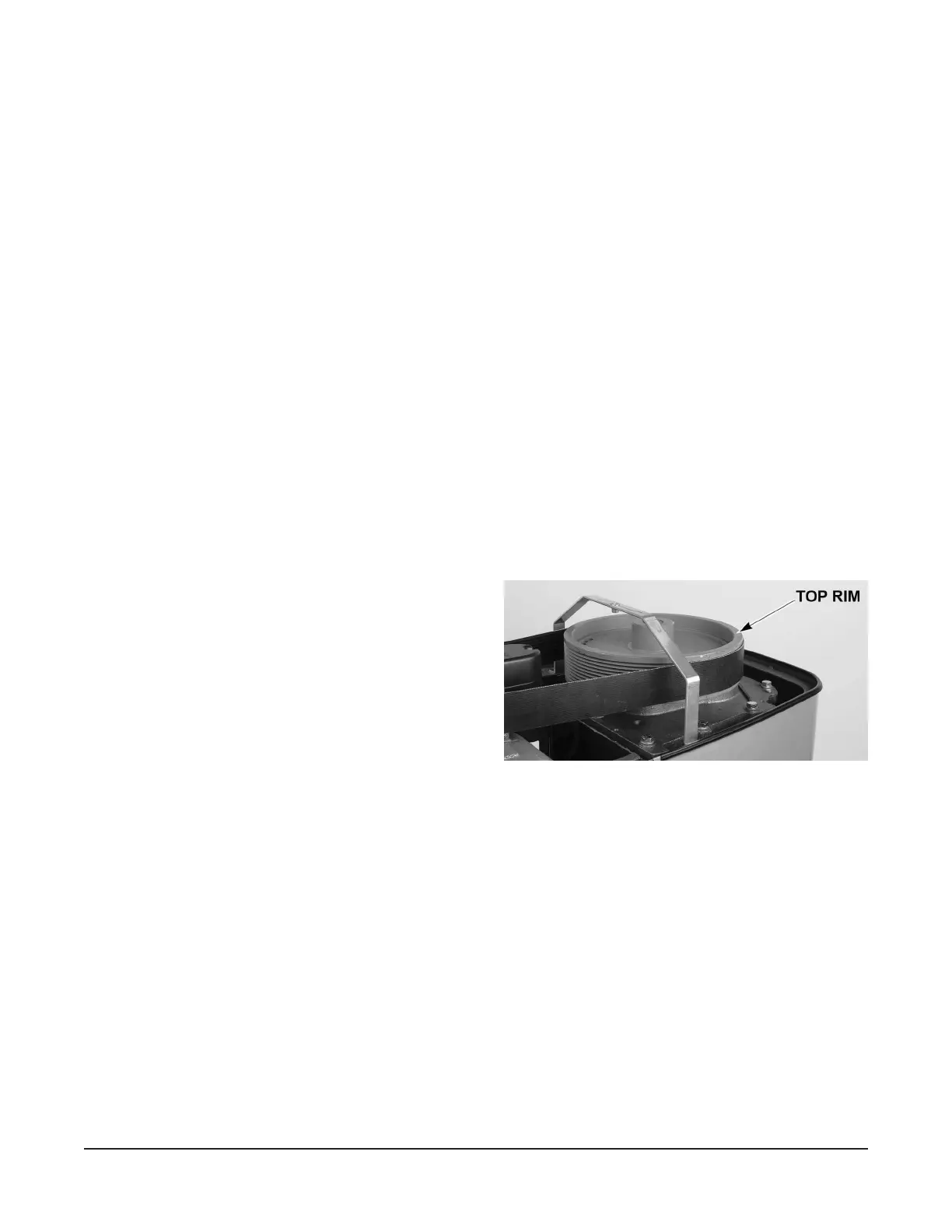

Fig. 1
