Flying Wing (Delta Wing)

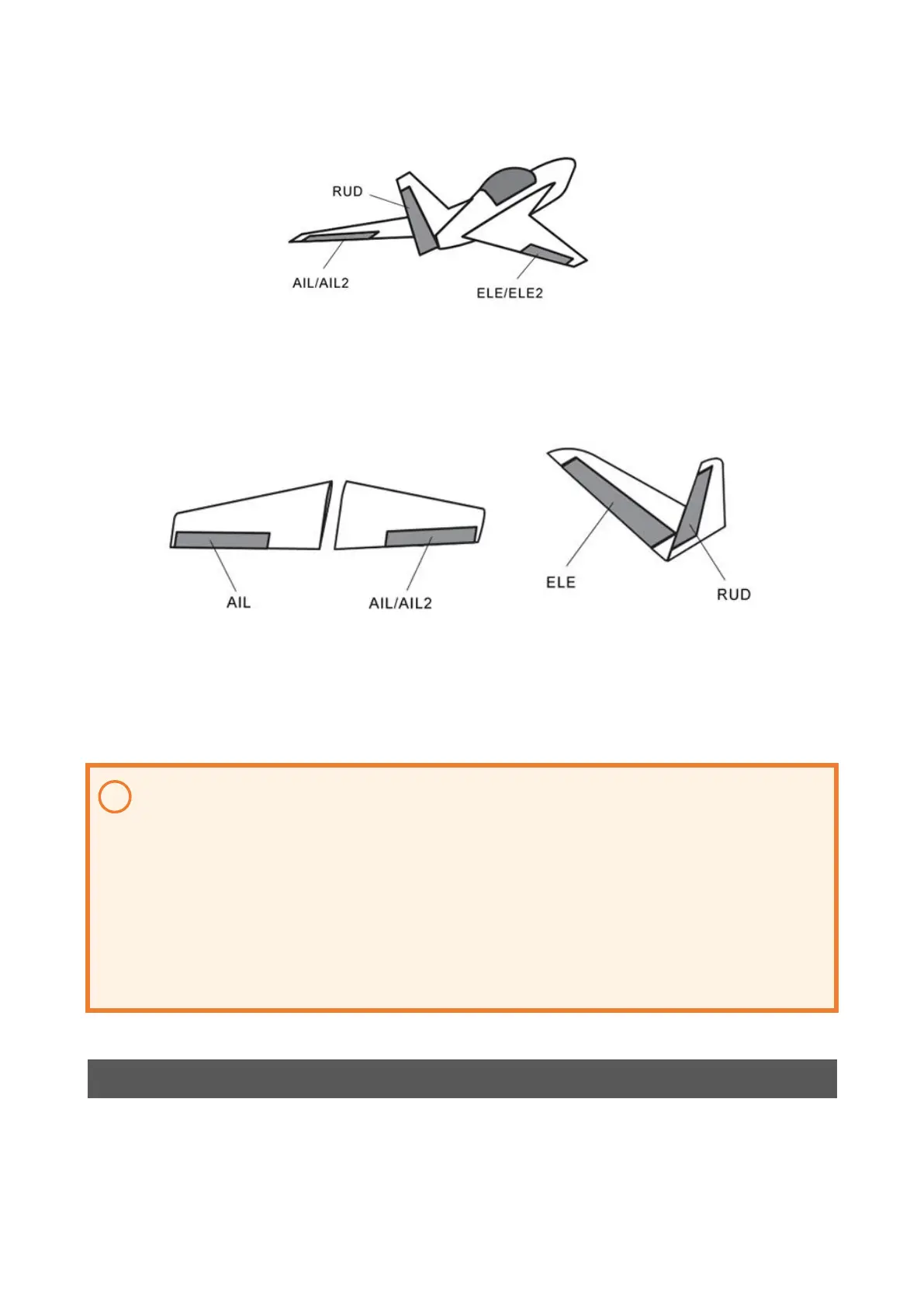

Set the output function of the two servos to “AIL+ELE” or “AIL2+ELE2”. If a reverse servo is being used on one side
of the wing, reverse it with the Servo Reverse function of the gyro.
V-Tail
When using single aileron input, set the output function of the two aileron servos to “AIL+AIL” or “AIL+AIL2”. If a
reverse servo is being used on one side of the wing, reverse it with the Servo Reverse function of the gyro.
When using dual aileron input, set the output function of the two aileron servos to “AIL+AIL2”.
Set the output function of the two tail servos to “ELE+RUD”, if a reverse servo is being used on one side of the tail,
reverse it with the Servo Reverse function of the gyro.
Single / Dual Aileron (Elevator) Control
The gyro works in single aileron control mode when there is only one aileron input connected.
Both output channels of AIL and AIL2 issue the same signal for the aileron servos, just like
what a Y-extended lead works. The function Servo Reverse provided by the gyro can be used
to reverse the servo when a reverse servo is being used.
The gyro works in dual aileron control mode if both aileron inputs are connected, in this mode,
output channels of AIL and AIL2 are operated separately.
The same applies to elevators.
FLIGHT MODES
A3S4 provides 6 flight modes which can be switched in 3-position mode (or 6-position mode) during flight.
The expected flight mode associated to each position of the switch can be specified via the configurator
or the programming card. The default setting is OFF - NORMAL – LEVEL in 3-position mode. The color
