Part2 Transmitter Manual
1 Features
1᧪LED display which shows model type and battery voltage on normal status.
2᧪7 models parameters store supported.
3᧪Support 5 points throttle(THR) curve in NORMAL mode and IDLE mode.
4᧪Support 5 points pitch(PIT) curve in NORMAL mode, IDLE mode and HOLD mode.
5᧪Support HELI(helicopter) mode and AERO mode. Following modes are supported in each mode:
6．7 channels standard servo signal output.
7．Set reverse (REV), sub trim (SUB) and travel by LED and button.
8．Dual rate (DR) control supported.
9．Throttle hold supported.
10．Gyro sensitivity adjusting supported.
11．Return to battery voltage display after no operation till 30 seconds.
12．Beep when battery voltage is low (gate voltage can be set).
13．Beep when throttle is not in zero when power on.
14．Down timer relate to throttle.

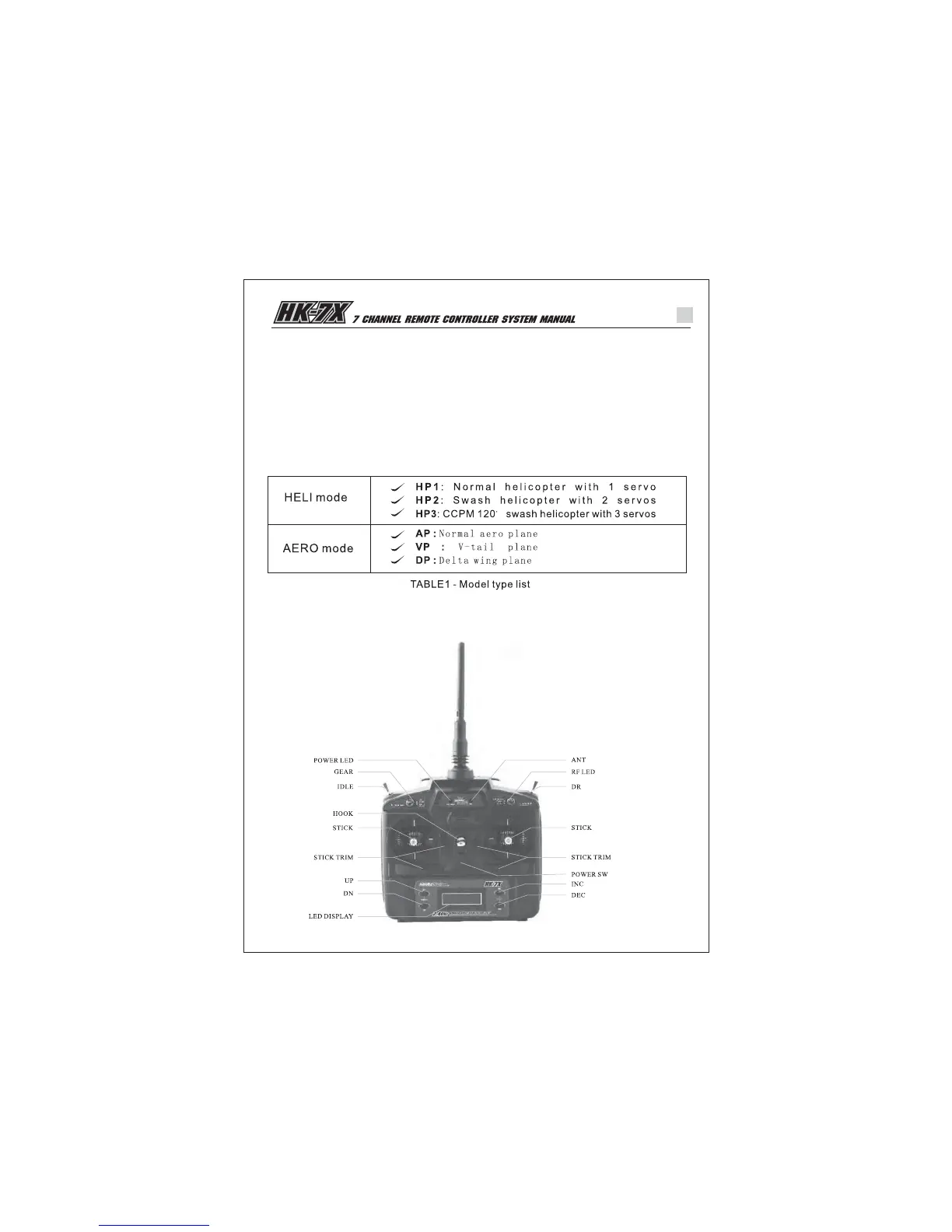

2 Transmitter Panel
5
