COMPTIP
HOSIE 17

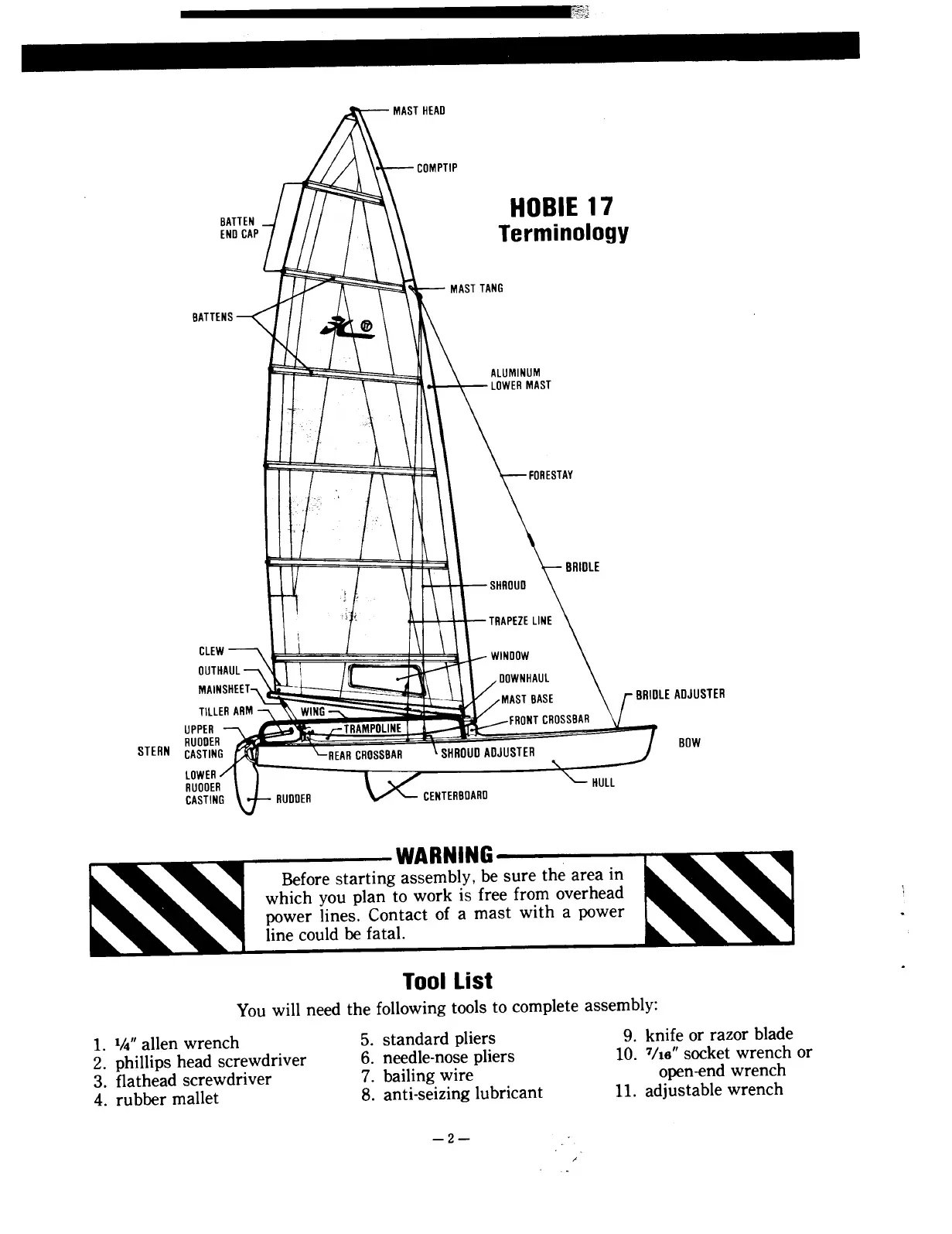

Terminology
MAST TANG
BAT
ALUMINUM
lOWER MAST
SHROUD
TRAPEZE LINE
ClE
OUT
MAl OOWNHAUl
MAST BASE LE ADJUSTER
Till
UPPER FRONT CROSSBAR
RUOOE
STERN CASTIN BOW
lOWER
RUOOE
CASTIN
WARNING
Before starting assembly, be sure the area in
which you plan to work is free from overhead \
power lines. Contact of a mast with a power .
line could be fatal.
Tool List .
You will need the following tools to complete assembly:
1. 1/4" alIen wrench 5. standard pliers 9. knife or razor blade
2. phillips head screwdriver 6. needle-nose pliers 10. 7/16" socket wrench or
3. flathead screwdriver 7. bailing wire open-end wrench
4. rubber mallet 8. anti-seizing lubricant 11. adjustable wrench
-2-
"
