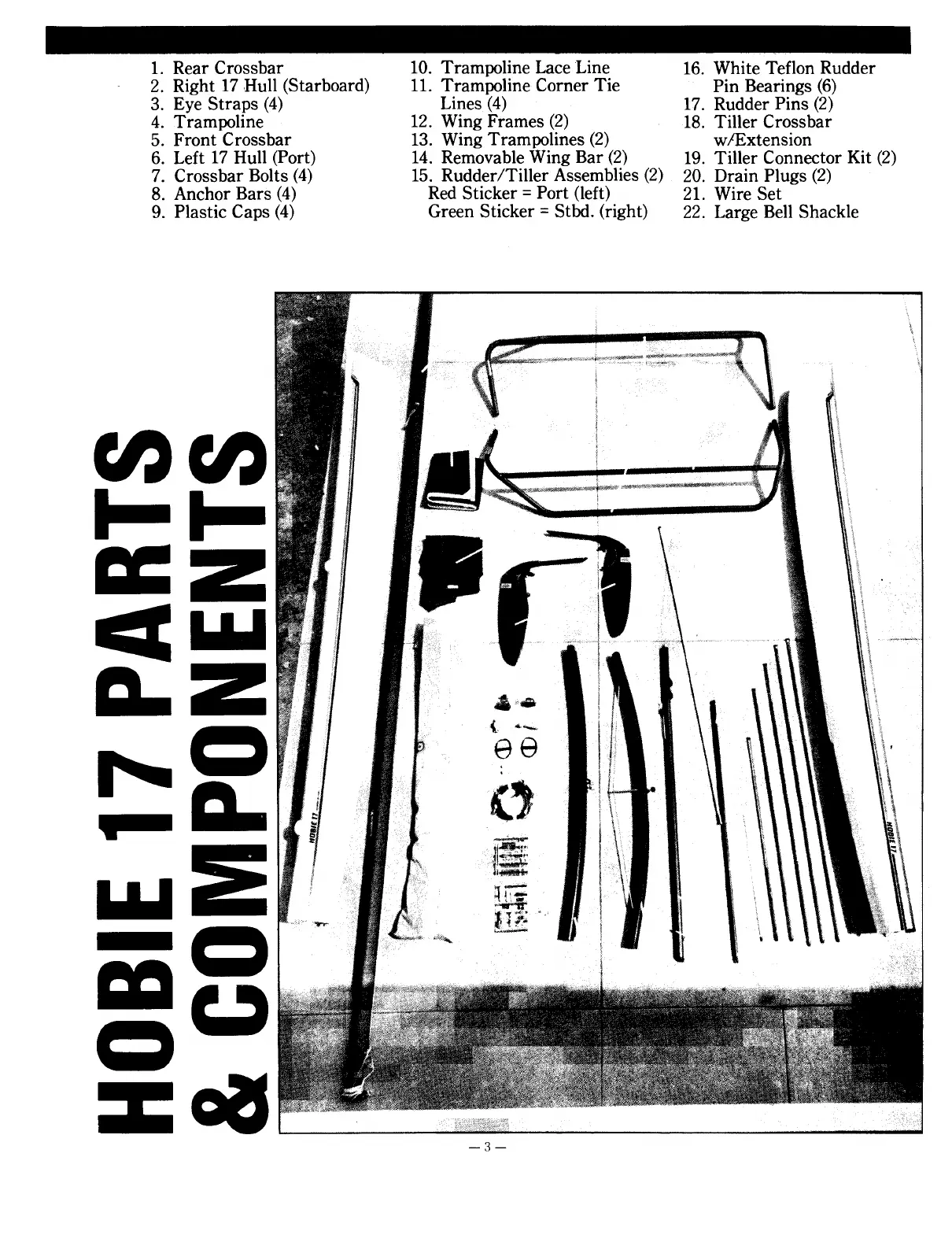

1. Rear Crossbar 10. Trampoline Lace Line 16. White Teflon Rudder
2. Right 17 ,Hull (Starboard) 11. Trampoline Corner Tie Pin Bearings (6)
3. Eye Straps (4) Lines (4) 17. Rudder Pins (2)
4. Trampoline 12. Wing Frames (2) 18. Tiller Crossbar
5. Front Crossbar 13. Wing Trampolines (2) w/Extension
6. Left 17 Hull (Port) 14. Removable Wing Bar (2) 19. Tiller Connector Kit (2)
7. Crossbar Bolts (4) 15. Rudder/Tiller Assemblies (2) 20. Drain Plugs (2)
8. Anchor Bars (4) Red Sticker = Port (left) 21. Wire Set
9. Plastic Caps (4) Green Sticker = Stbd. (right) 22. Large Bell Shackle
