Version 1.0 33

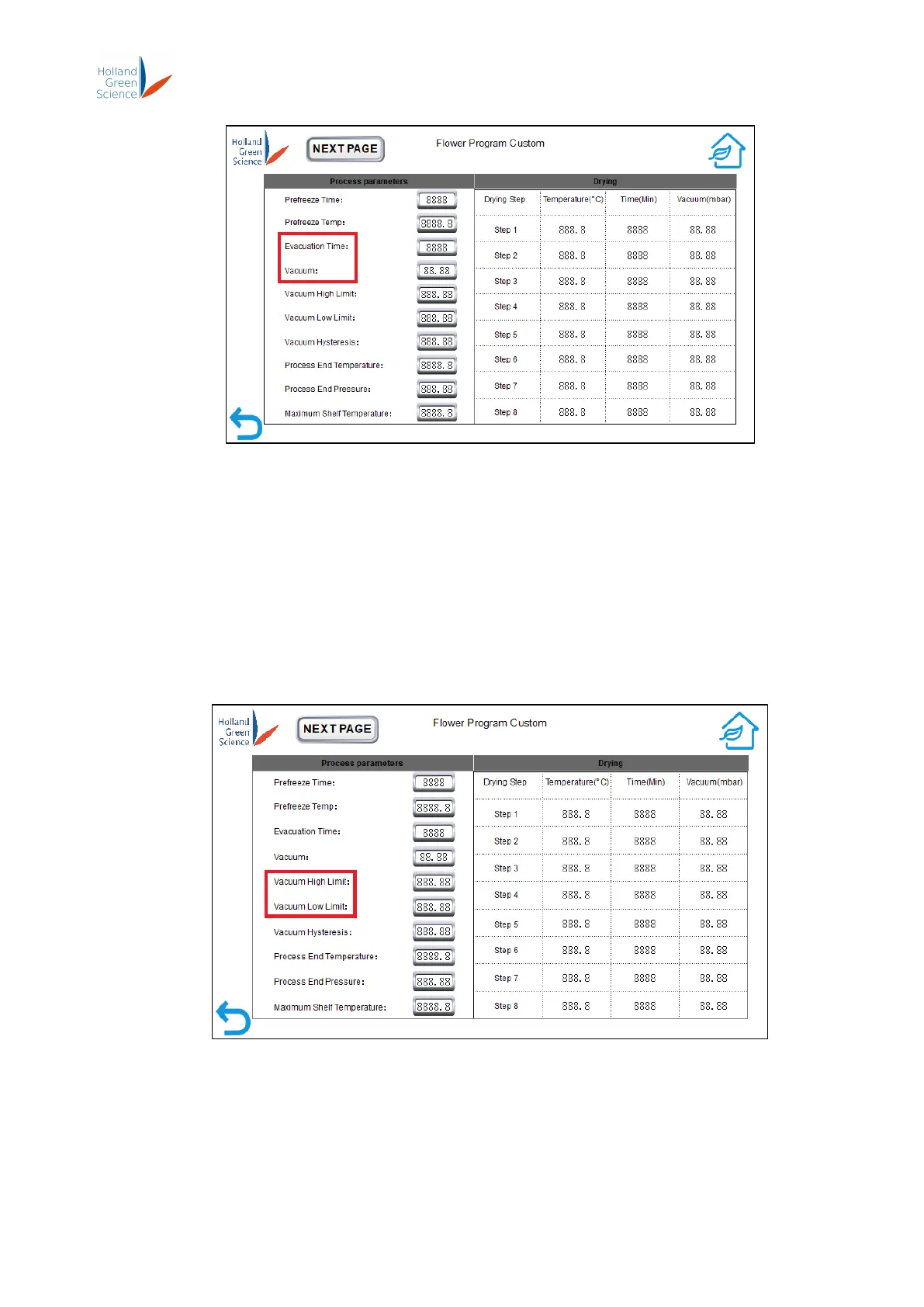

Figure 34
• Evacuation Time: Evacuation Time and Vacuum are used to control the evacuation
stage. The program will turn the vacuum pump on when the evacuation stage begins.
The program will progress to the next stage, the drying stage, when the chamber
pressure has been lower than the pressure set in Vacuum for the duration set in the
Evacuation Time.
• Vacuum: see Evacuation Time.
Figure 35
• Vacuum High Limit: When the chamber pressure is higher than the Vacuum High
Limit or lower than the Vacuum Low Limit, the program will display a warning. The
warning will be removed once the chamber pressure returns to normal (within the set
boundaries).
