HD200 BCD USER GUIDE
© Hollis (2014)
adjustments
The HD200 system does not require any assembly, but there are adjustments and items that can be removed
or added to the HD200 to customize your harness.
CUMMERBUND ASSEMBLY
To access the cummerbund for adjustment, remove the top of the back pad that is attached to the harness
with an elastic loop (Fig. 1). This will expose the plastic backplate and cummerbund ends. To adjust, pull the
cummerbund out of the harness sleave, and undo the self gripping fastener of the cummerbund (Fig. 2, 3).
Reposition to the desired length and reattach the self gripping fastener to secure (Fig. 4). Weave the cum-
merbund back through the harness sleave (Fig. 5). Repeat with the opposite side of the cummerbund. Then
replace the backpad.

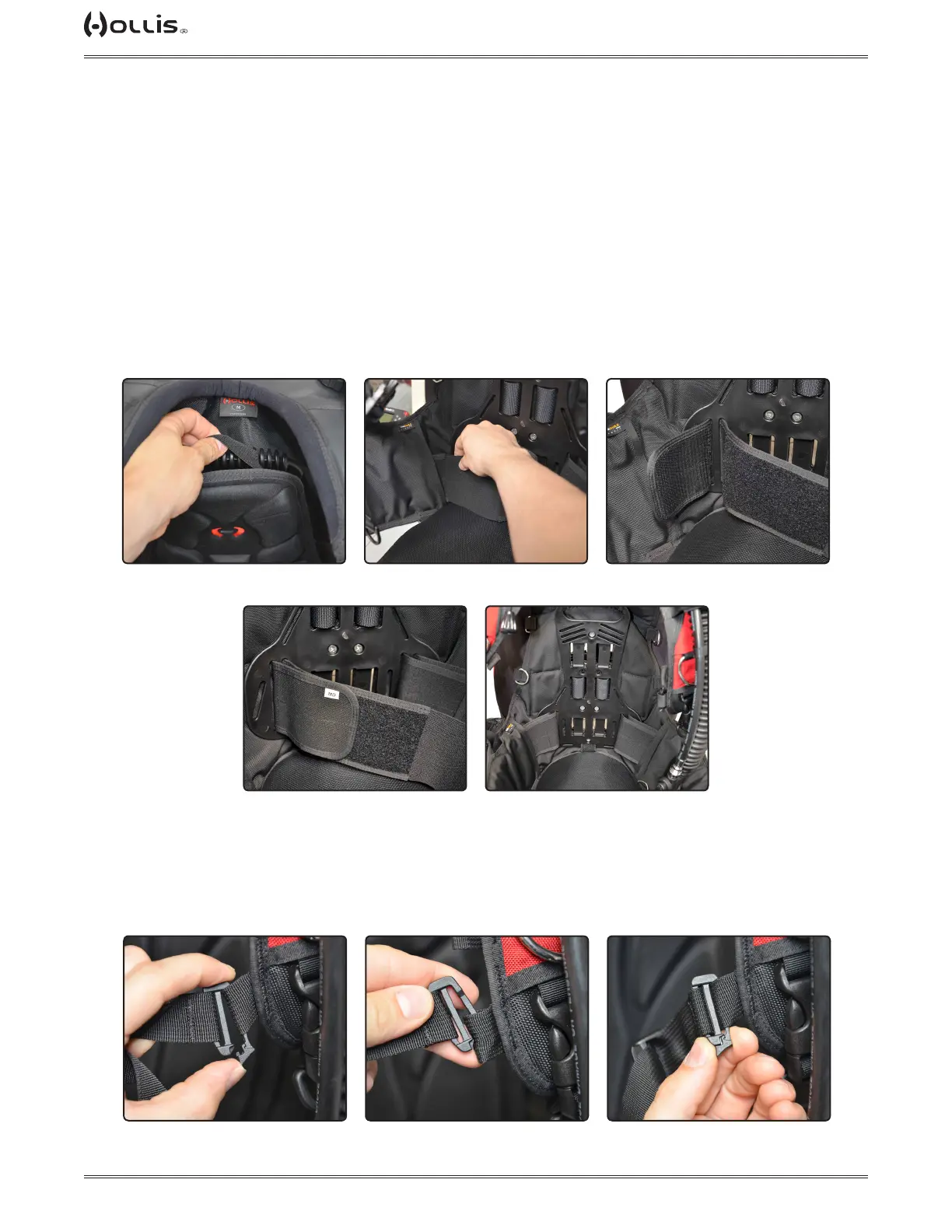

Fig. 1 Fig. 2 Fig. 3
Fig. 4 Fig. 5
STERNUM STRAP
The sternum strap is adjustable. It can be installed in one of multiple positions or simply removed to suit diver
preference (Fig. 6, 7, 8).
Fig. 6 Fig. 7 Fig. 8
