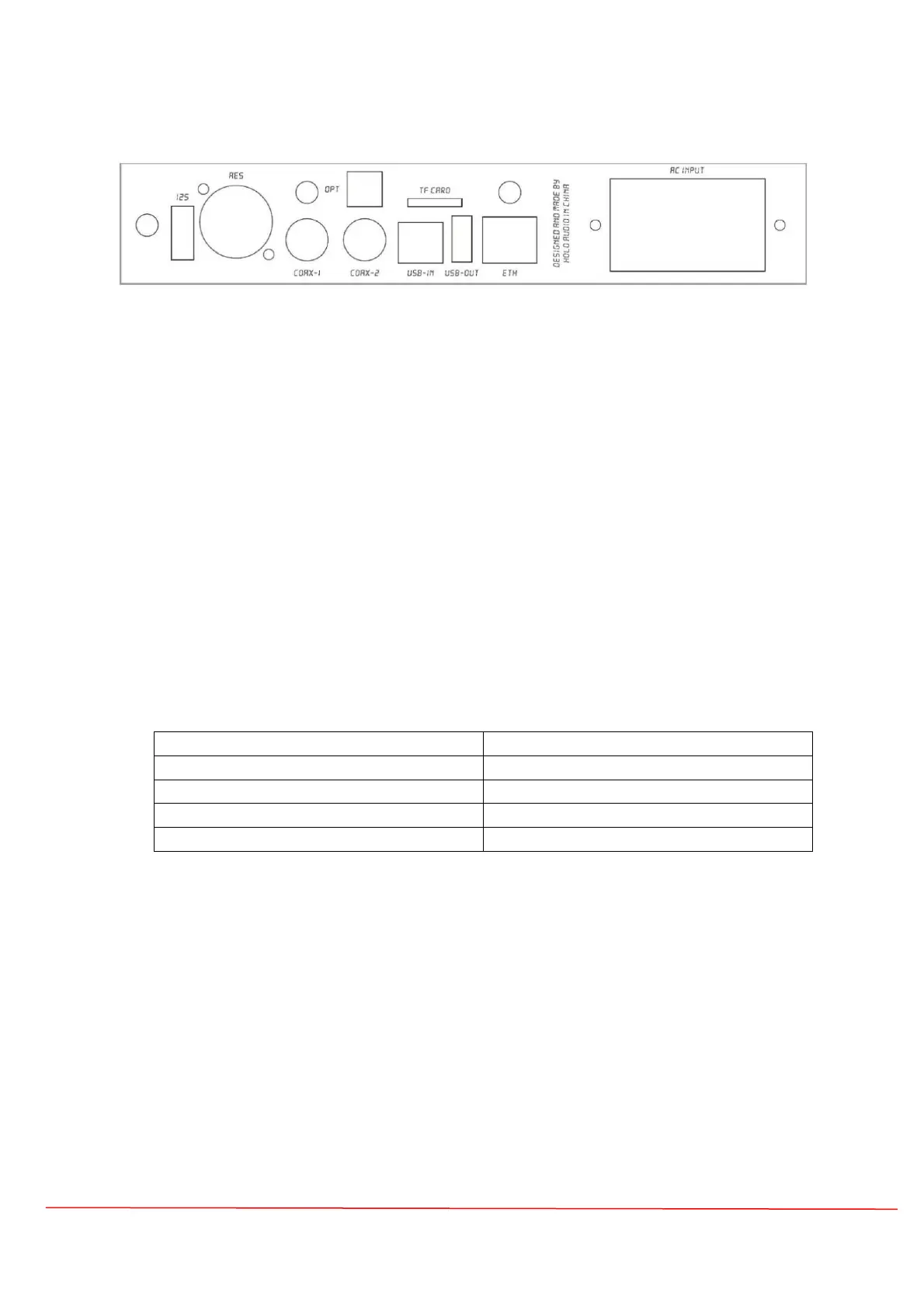

REAR PANEL
From left to right (top to bottom) interfaces are: optical fiber, system TF card holder*,
I2S*, AES, coaxial 1*, coaxial 2*, USB input, USB output, network port, AC power input
*1 Do not hot swap the TF card with power on! Please turn off the power before
plugging and unplugging the TF card
*2 I2S adopts LVDS differential transmission mode, the line sequence can be
configured, please refer to I2S output configuration for details. The form of the
physical interface is the same as that of HDMI, HDMI cable can be used, but note
that the electrical signal it transmits is I2S, which is not a conventional HDMI audio
and video signal
*3 Coaxial 1 and coaxial 2 cannot be short-circuited
I2S OUTPUT CONFIGURATION
Configure the I2S output line sequence through the DIP switch [1,2] at the bottom of
the chassis.
DIP switch [3] to set I2S_DSD_ON enable;
DIP switch [4] sets the I2S_MCLK frequency, ON is 45.1584M/49.152M, OFF is
22.5792M/24.576M.
