Holztech SD320
WWW.HOLZTECH.COM
1.0 TECHNICAL DATA
Overall length of working table 1500 mm
Planing width max 320 mm
Max. clamping thickness for planing 5 mm
Groove feed - swivelling 90°- 45
Groove feed – Large 1100 x 150 mm
Table height 850 mm
Thicknessing table length 600 mm
Thicknessing table stroke horisontal 320 mm
vertical 230 mm
Max. clamping thickness at thicknessing 3 mm
Feed 8,5 m/min
Knives diameter 100 mm
Knives speed 5000 rpm
Knives 3 pieces
Motor 2.0 kW
Mains 240V/50Hz
Mass 250 kg
Required space 1500x600 mm

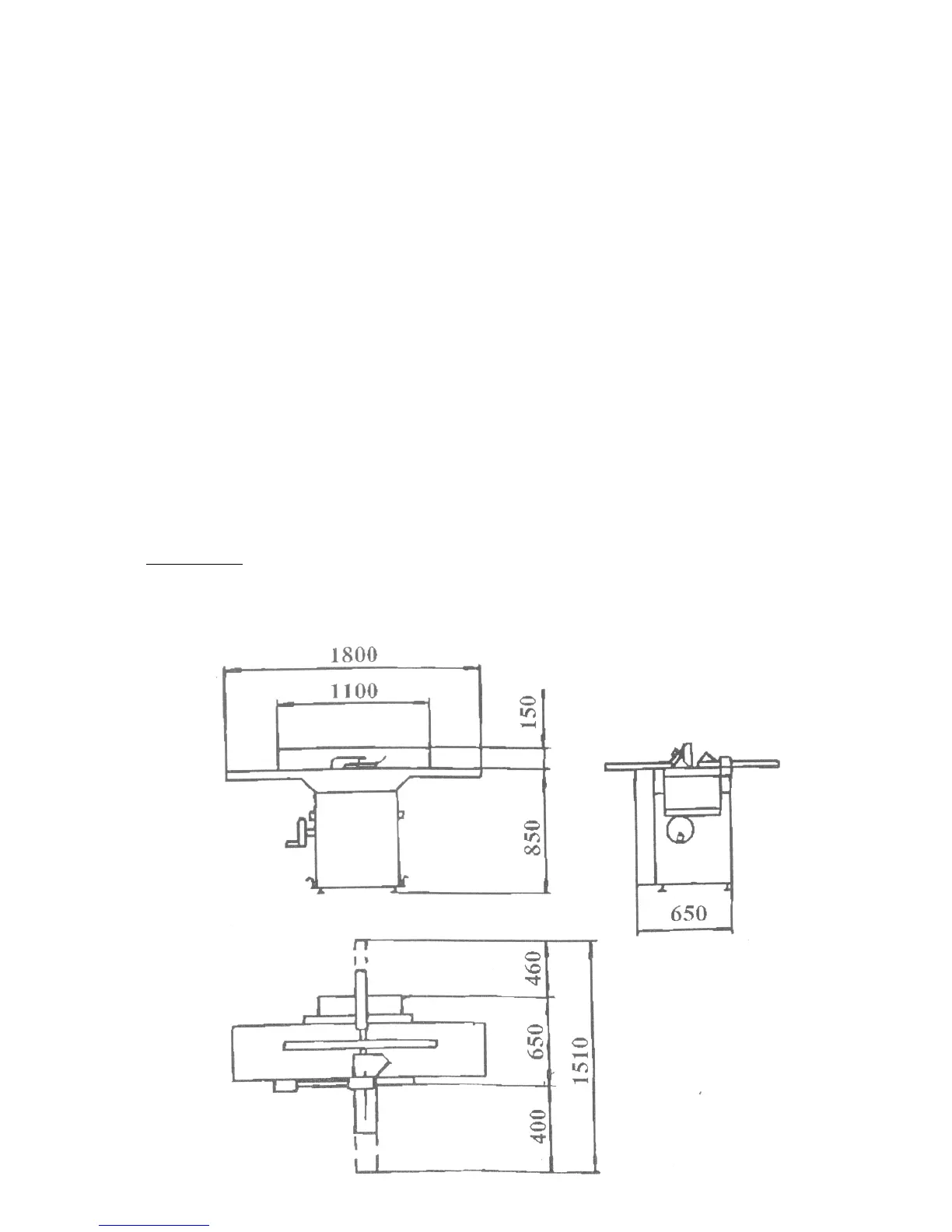

1.1 LAY-OUT
