Holztech SD320
WWW.HOLZTECH.COM
Maximum slze is 1800 x 320 mm. For longer workpieces machining some sort of table
extension is to be applied.
Minitnal size is 450 x 50 x 30 mm. Smaller works to be machined using adequate auxiliaries.
Thicknessing
Maximum size is 1800 x 405 x 230 nun. For longer workpieces machining some sort of table
extension is to be applied.
Minimal size is 350 x 20 x 5 mm.
8.0 OPERATION
8.1 Planing

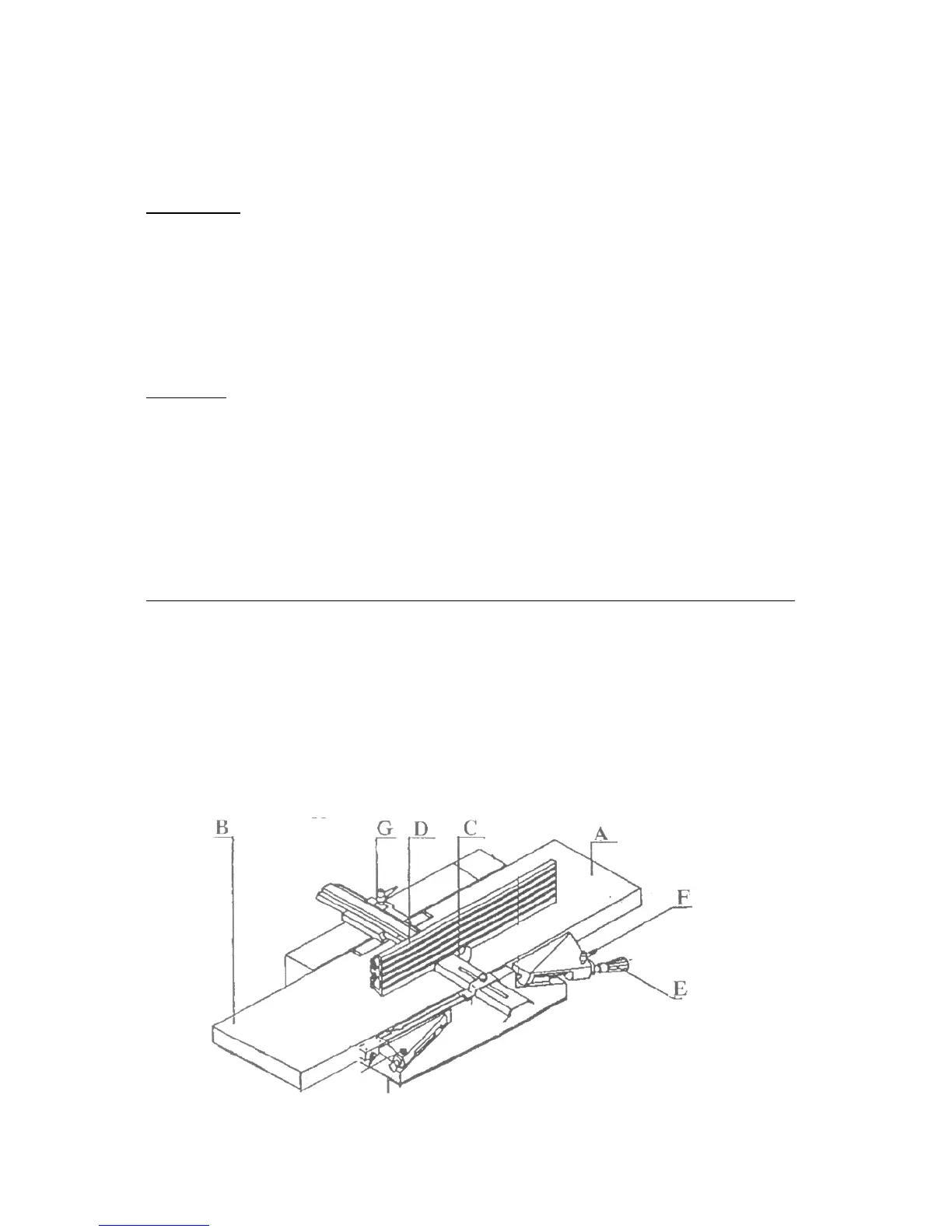

The planing device consists of
- Feed table (A)
- Retrieve table (B)
- Knife shaft cover (C)
- Groove guide (D)
- Ball handle (E)
- Fixing bolt (F)
- Connecting bolt (G)
Prior to preparation work for thicknessing, the machine must come to a stop by main switch.
By screwing of the fixing bolt (F), the feed table (A) can be set for the required planing
thickness max.5 mm) with the ball handle (E). The retrieve table (B) comes on the
other side. The groove guide (D) swivels from 90° to 45° and can be set along the
whole length of the knives screwing the connecting bolt (G).
After completing the settings, the fixing bolt (F) and connecting bolt (G) must be screwed
firmly.
Working tips
1. Observe working direction
2. Use correct hands
3. Cover the knives shaft
4. Never touch underneath the cover
