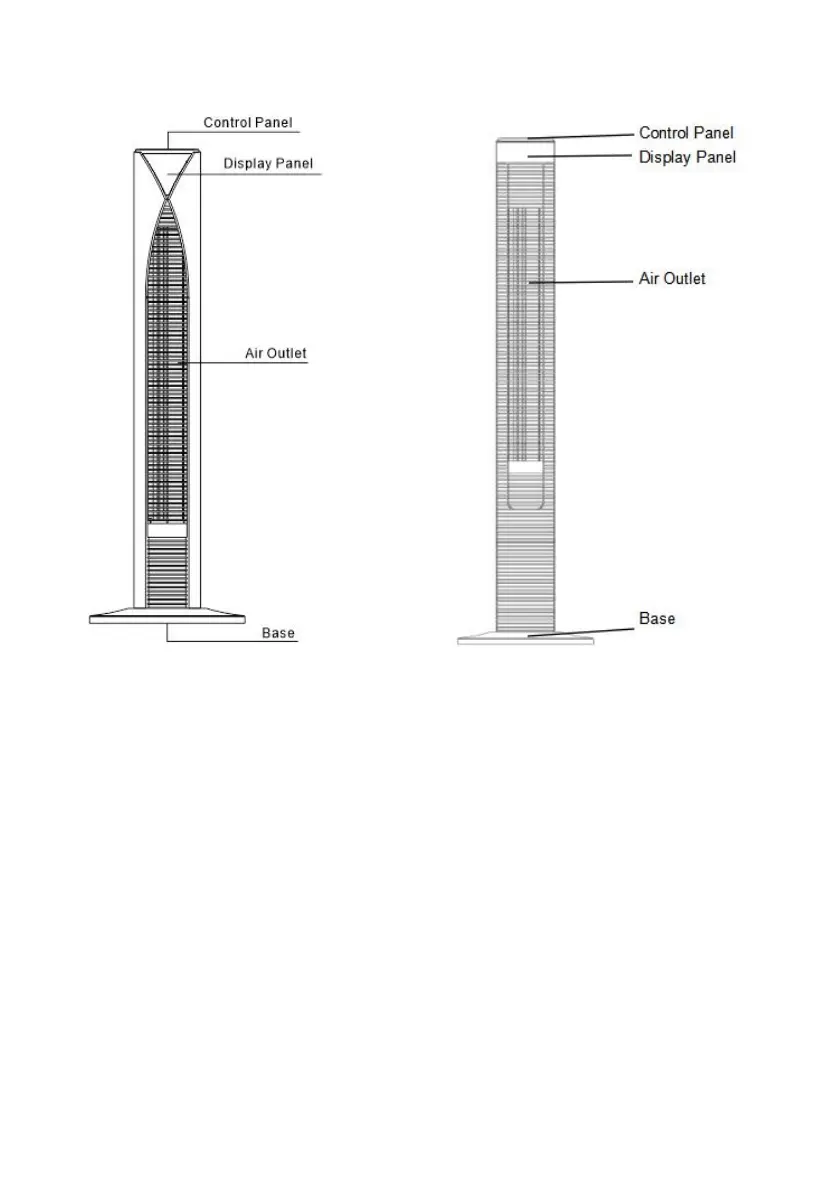

PARTS NAME
TF3803TR-L TF4604TR-L
ASSEMBLY
The base of the tower fan comes in two parts, which fit around the oscillation
base. Both parts fit easily together.
1.First attach the front half of the base, aligning the holes in base with the
screw hole in the oscillation base, and leading the power cord up the base.
2.Then snap the back half of the base to the front half and secure with the
plastic screw nut (supplied),wise it clockwise
(Figure1)
