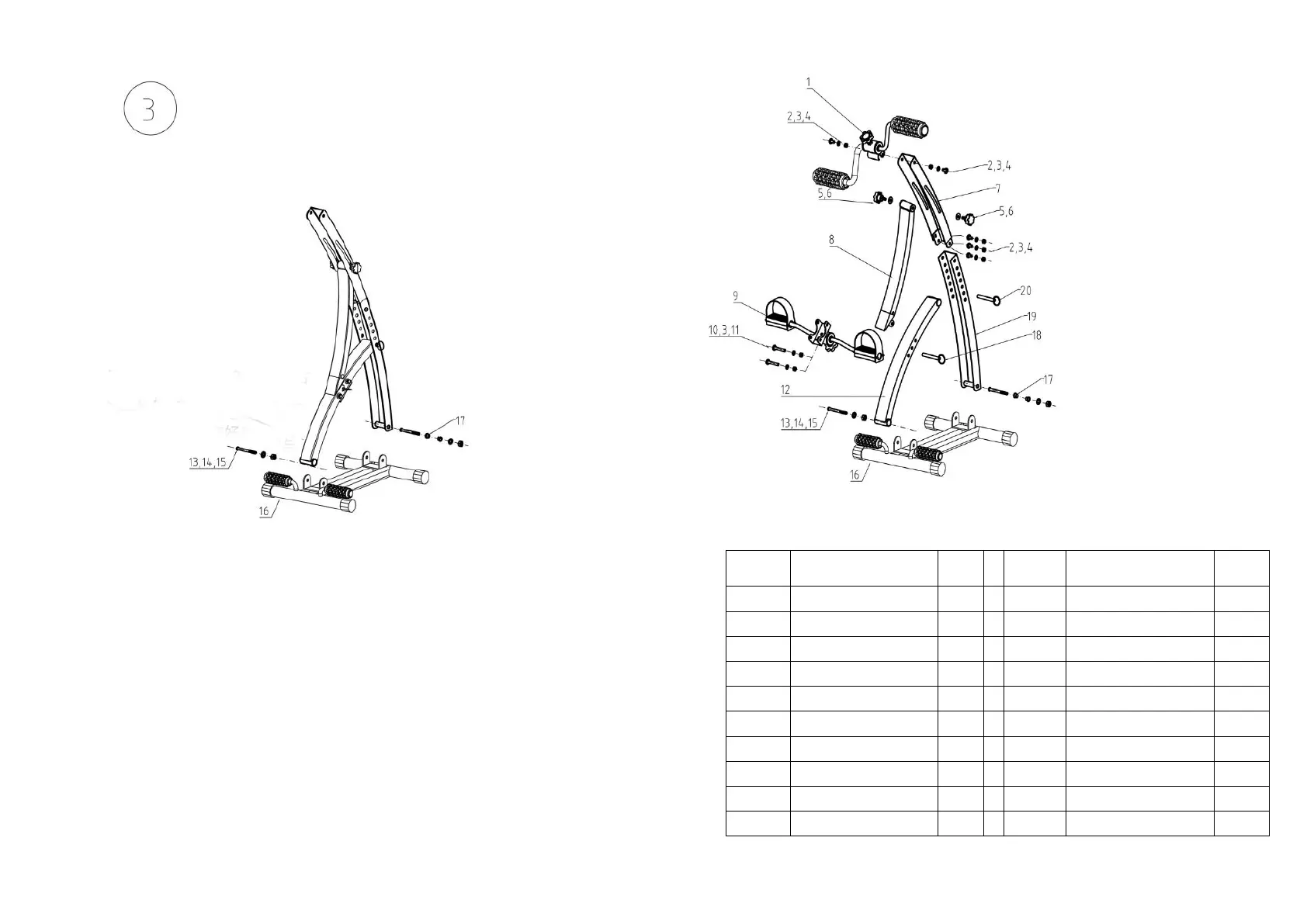

Exploded Drawing
STEP 3:
Install I-frame
Fix I-frame(16) with Auxiliary frame(12). Connect with Socket head cap
scraw(13)、 Plain gasket（14）、nut locknut（15）、Power spacer(17), and using
spanner to tighten it.
6
PART LIST
PART NO.
DESCRIPTION
QTY
PART NO.
DESCRIPTION
QTY
1
Handle resistance
1
11
M8 cover nut
2
2
Socket head cap scraw M8*16
5
12
Auxiliary frame
1
3
Φ8 Plain gasket
7
13
Socket head cap scraw M10*85
2
4
M8 nut locknut
5
14
Φ10 Plain gasket
2
5
M8 Plum blossom knob
2
15
M10 nut locknut
2
6
Φ8 Large shim
2
16
I-frame
1
7
Short main frame
1
17
Power spacer
2
8
Support frame
1
18
Φ8 Bolt
1
9
Foot resistance Device
1
19
Long main frame
1
10
Socket head cap scraw M8*55
2
20
Φ8 Bolt
1
