ASSEMBLY INSTRUCTIONS

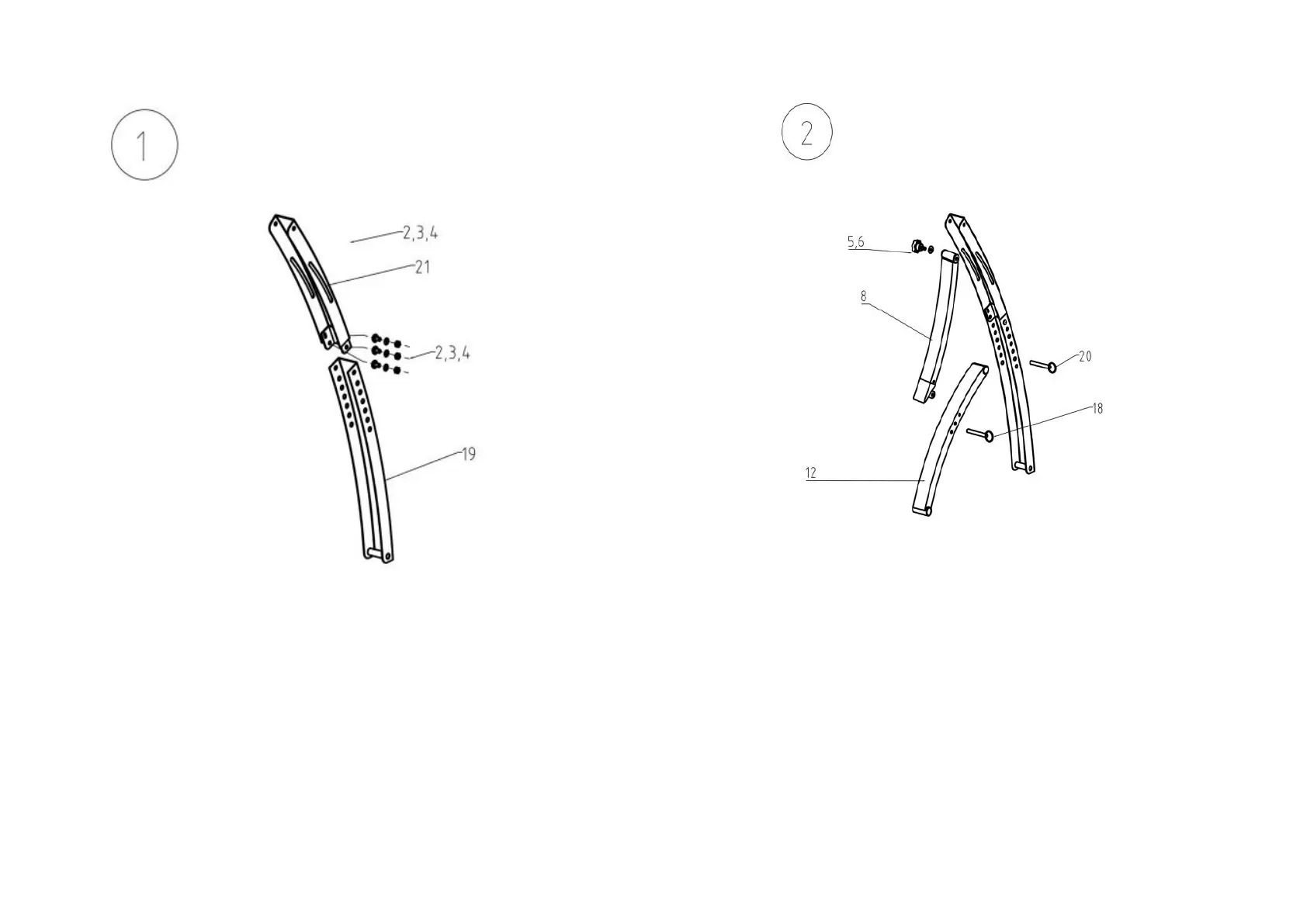

STEP 1:
Install main frame
Fix Long main frame(19) with short main frame(21). Connect with Socket head cap
scraw(2)、 Plain gasket（3）、nut locknut（4），and using spanner to tighten it.
4
STEP 2:
Install Support frame
Fix Support frame(8) with Auxiliary frame （ 12 ） . Connect with Plum
blossom knob（5），Large shim（6）、Bolt（20），and using spanner to tighten
it.
5
