HOMCOM A90-230 User Manual

5

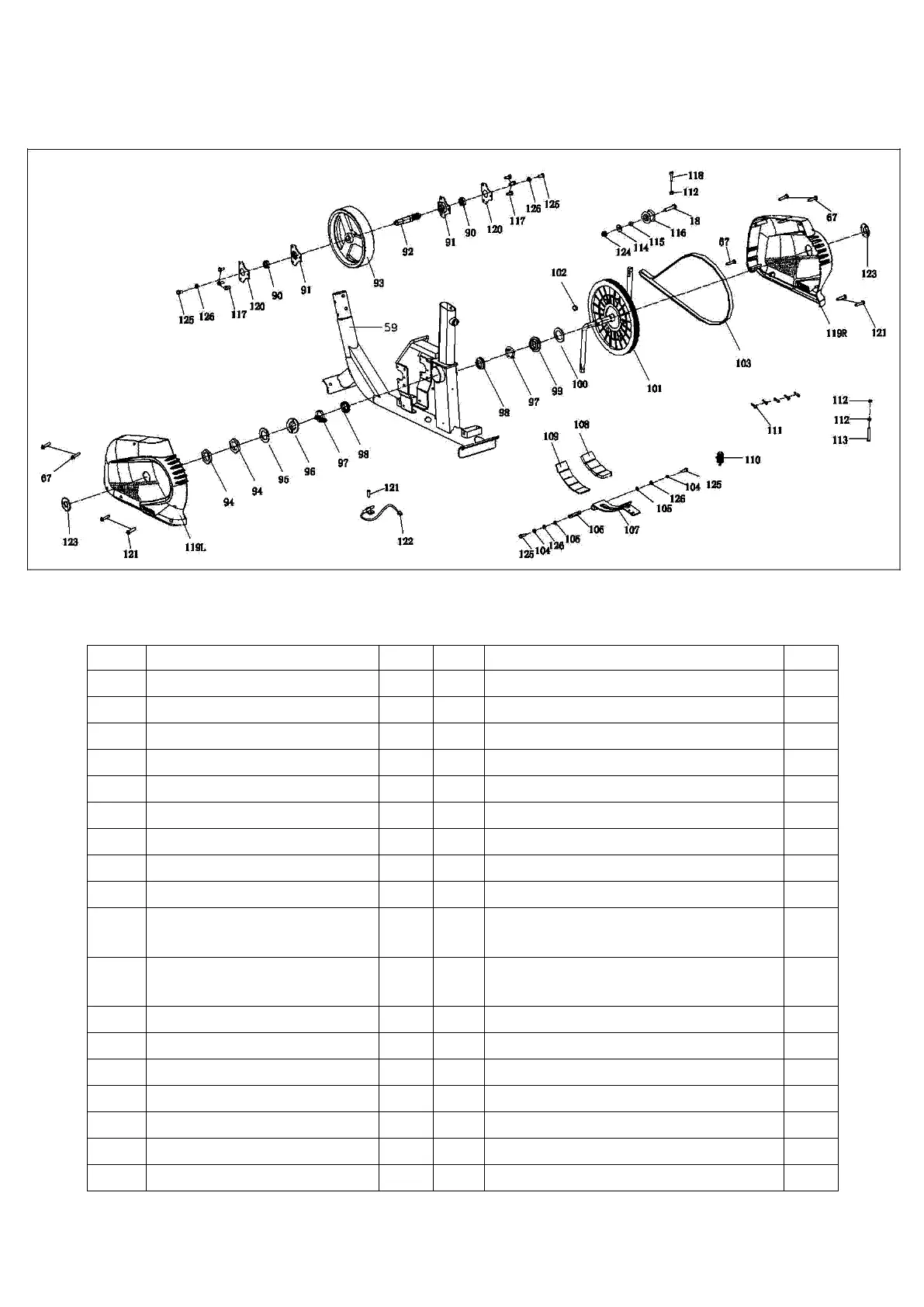

EXPLODED DRADWING AND HARDWARE PACKAGE No.2:
Part List No.2：
90 Bearing 6001RS 2 109
Magnet Grid 1
91
Bearing Seat
2 110
Spring 1
92
Inertial Axle
1 111
Screw ST3*10 5
93 Inertial Wheel 1 112 Nut M6
3
94 Nut 2 113
Screw M6*60 1
95
Washer
1 114
Washer φ10.5*φ20*2 1
96
Nut
1 115
Bushing 1
97
Ball Shelf
2 116
Idler Wheel 1
98
Bowl
2 117 Screw M6*9
6
99
Nut
1 118 Screw M6*30 1
100
Washer
1
119
L
Chain Cover-L
1
101 Belt Pulley 1
119
R
Chain Cover-R 1
102 Magnetic 1 120 Bearing Plate 2
103 Belt 360PJ6 1 121 Screw ST4.2*16 5
104
Washer D6 2
122 Sensor 1
105
Ring D12 2
123 Hole Seal 2
106
Magnet Board Bearing 1
124 Nylon Nut M10 1
107
Magnet Board 1
125 Screw M6*15 4
108
Magnet 4
126 Washer φ6.5*φ16*1.5 4
