HOMCOM B31-394 - Page 6

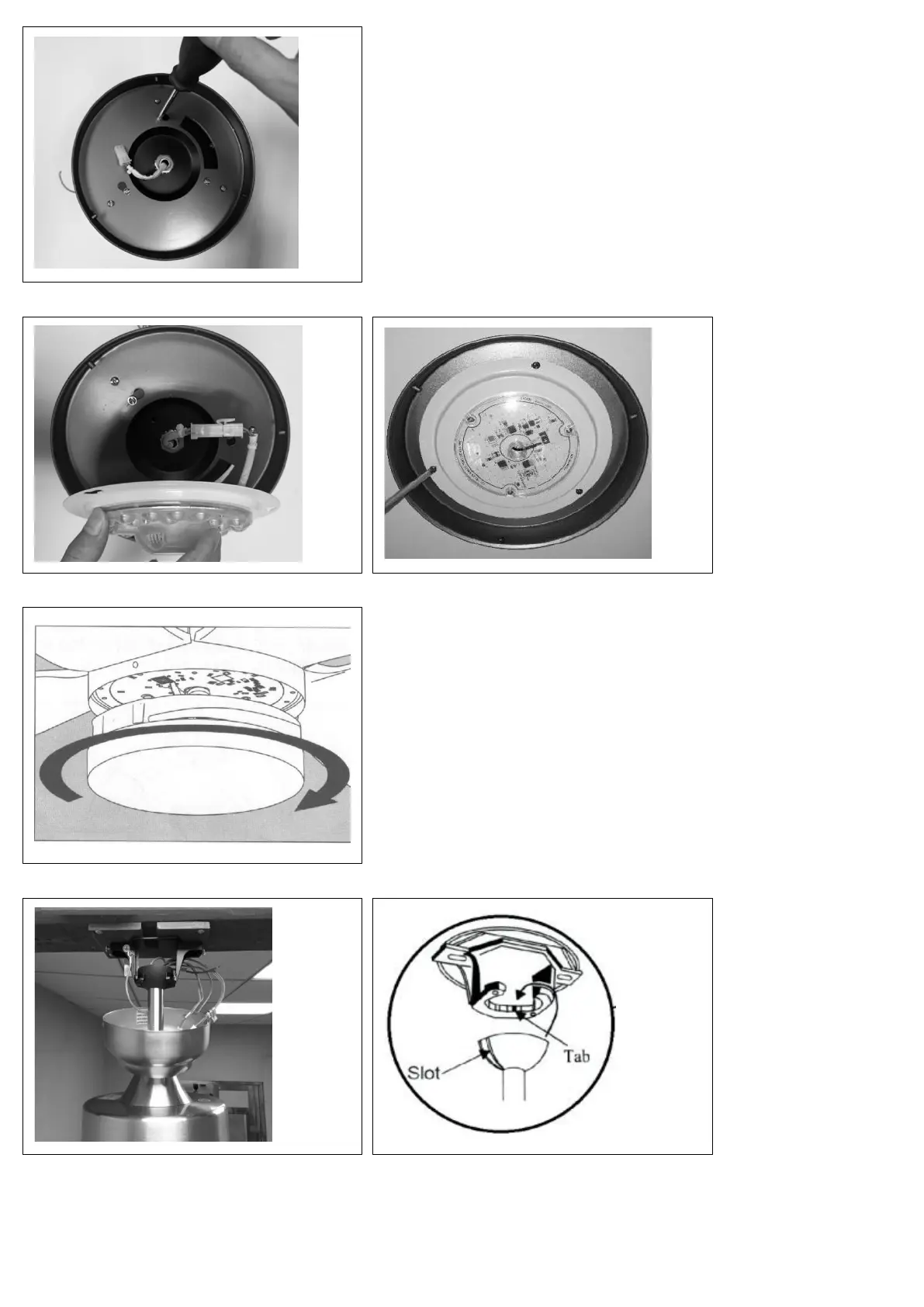

6. Install the light kit pan to the motor assembly by tighten the screws.
7. Connect two plugs .Connect the wire from fan to LED disc. Attach the LED disc to the center of the light box.
8. Turn the glass bowl clockwise until it stops.
9. Lift the fan up and place the nylon ball onto the bracket, Make sure the guide pin of the bracket fits into the slot of the
ball.
5
