10. put the remote receiver into the middle of the bracket and connect the wires. (connect the wires according to the wiring
instructions)
power supply from ceiling (230V/50Hz)

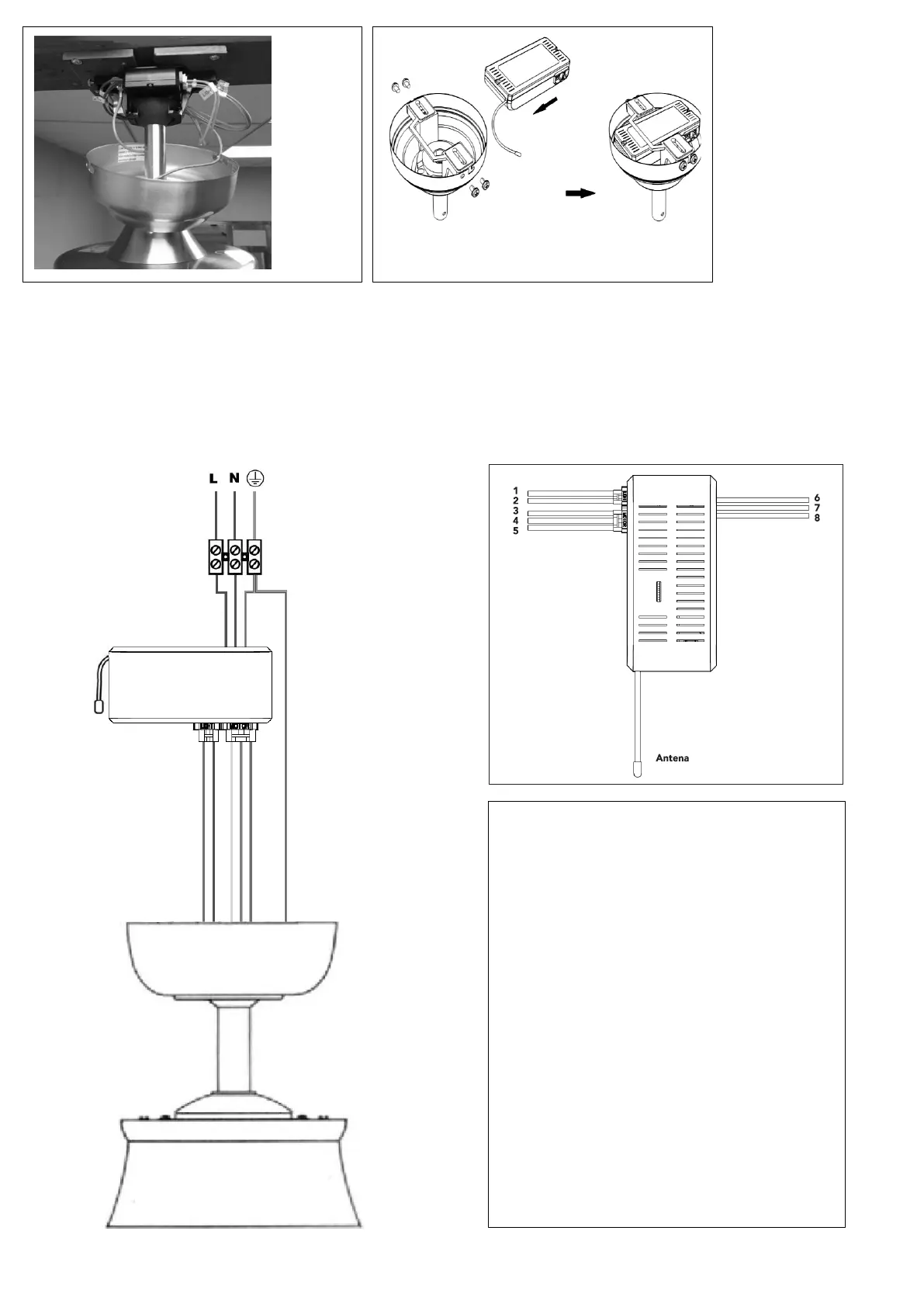

11. Remote control connection diagram.
6
The antenna don’t need be left outside the
outlet
Subtitle:
1: Light wire L (Red)
2: Light wire N (Blue)
3: Motor phase wire U (Gray)
4: Motor phase wire V (Yellow)
5: Motor phase wire W (Red)
6 ： AC IN L (Brown)
7 ： AC IN N (Blue)
8 ： Ground wire (Green &Yellow)
MOTOR
RECEIVER
