22. The appliance must be assembled completely before use.
23. Watch out for long hair! It can be caught in the fan owing to the air turbulence.
24. Do not point the air flow to the people for a long time.
25. Ensure that the fan is switched off from the supply mains before removing the guard.

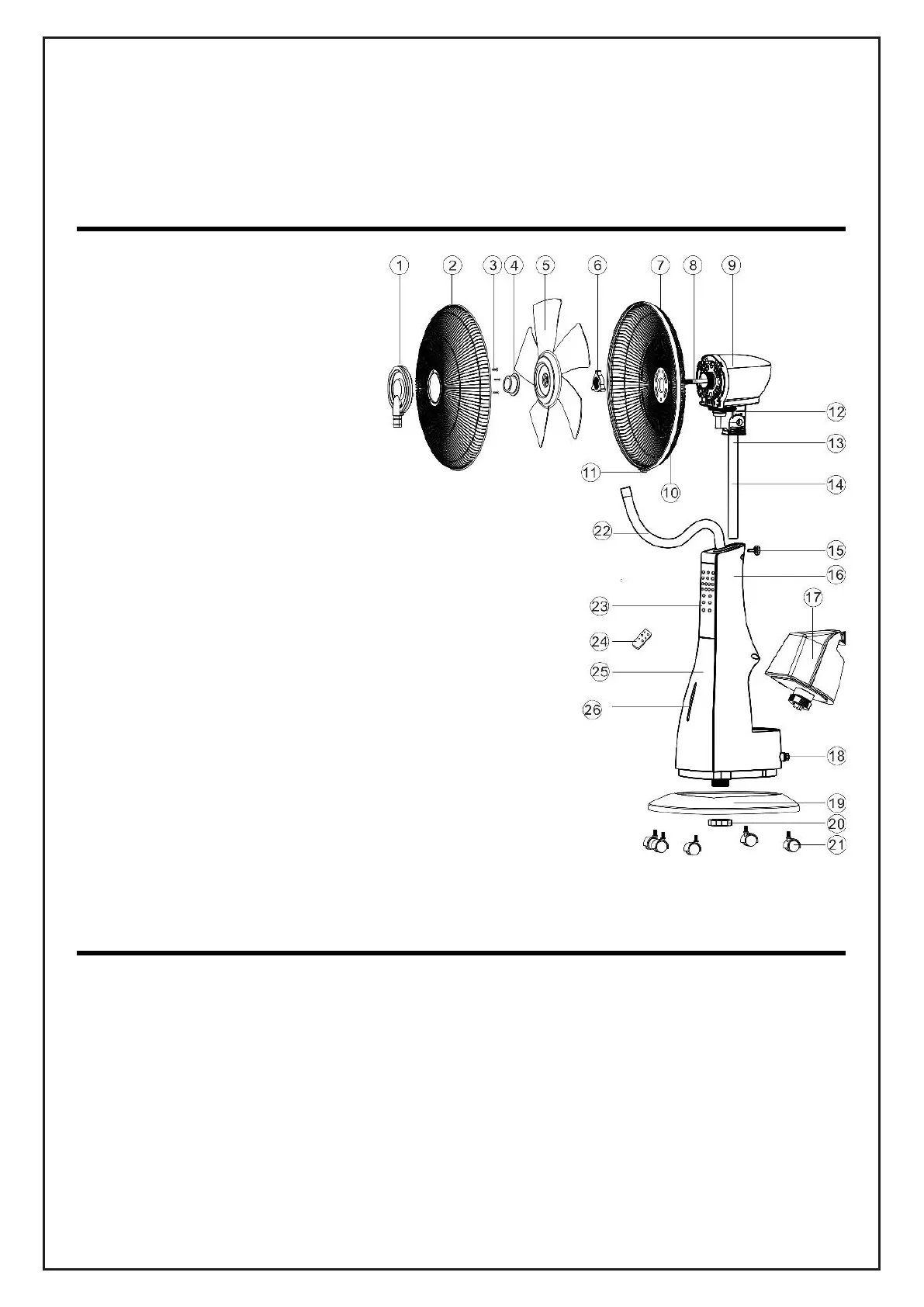

Component list
1. Misting Board
2. Front Grill
3. Misting Board Lock Screws
4. Blade Lock Nut
5. Blades
6. Grill Lock Nut
7. Back Grill
8. Motor Shaft
9. Motor Cover
10. Grill Ring
11. Grill Lock Nut
12. Motor Holder
13. Connection Holder
14. Main Holder
15. Holder Fixed Screw
16. Main Body
17. Water Tank
18. Water Outlet Lock nut
19. Base
20. Base Lock Net
21. Wheels
22. Misting Tube
23. Control Panel
24. Remote Control
25. Decorate Panel
26. Water Indicator
Instructions for use
1. Insert the main holder (14) into the main body (16), and tight up by the holder fixed
screw (16).
2. Insert the 5pcs wheels (21) into the base (19), and tighten up by the base lock nut (20).
3. Put the back grill (7) on the motor shaft (8), and tighten up by the grill lock nut (6) to the
motor cover (9) Insert the blades (5) on the motor shaft (8), and tighten up by the blade
lock nut (4).
4. Fixed the misting board (1) on the front grill (2), and tight up by misting board lock
screws.
5. Connection the front grill (2) and back grill (7) by grill ring (10), and tighten up by grill
lock nut (11).
6. Insert the misting tube (22), connection to the misting board (1).
